Summary of Contents for HAMOKI HM-GM Series
-
Page 2: General Information

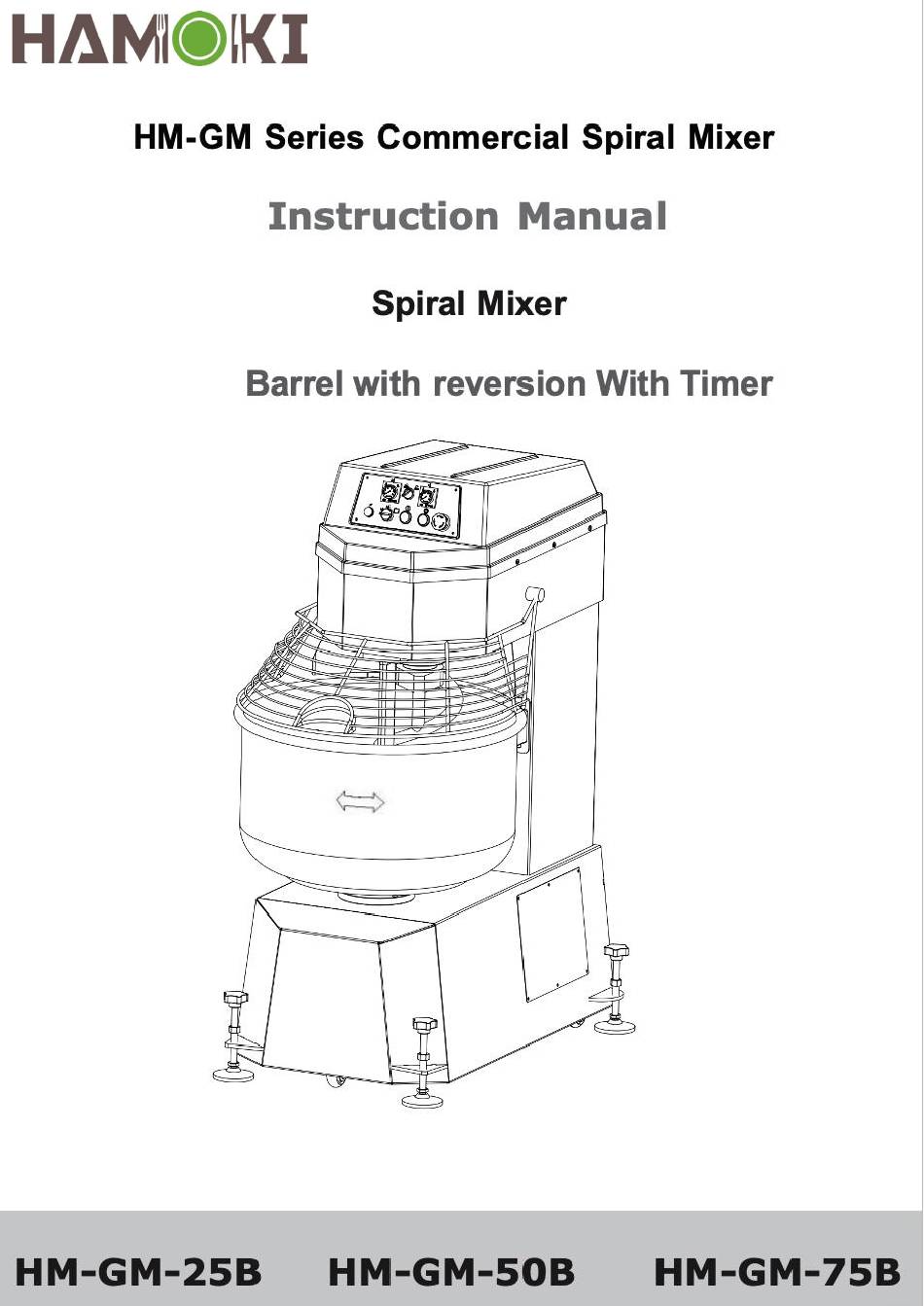

Hamoki HM-GM Series Commercial Spiral Mixers ATTENTION ⚫ New user or repairing this product must be performed by; qualified persons, those who are licensed to install, or those who are authorised by the manufacturer. ⚫ When installing or maintaining, please obey the following instructions carefully to ensure safe use of appliance. -
Page 3: Safety Guidelines
Rotating machinery and Electricity are dangerous and may cause injury if sufficient precautions are not taken prior to operating or servicing the mixer. Ensure that the power supply is not connected to mixer and is isolated before starting work to clean or service the machine. In certain troubleshooting situations it may be necessary to operate the mixer;... - Page 4 ALWAYS • Use the mixer as intended and inline with the operating instructions. • Use the mixer in a well-lit area. • Stop the mixer before adding more ingredients. • Use the stop button to stop machine. • Disconnect the mains electricity supply before cleaning the mixer. •...
-
Page 5: The Control Panel
THE CONTROL PANEL A. HM-GM-25B,HM-GM-50B,HM-GM-75B Number Sign Introduction Controls length of low speed operation (used when an automatic operated program is chosen) Changes the rotary direction of the bowl Controls length of high speed operation (used when an automatic operated program is chosen) Power light indicator Low speed by manual operation... - Page 6 BEFORE USE Make the following checks before operating the machine: 1. Check the input power and ensure it is matching with the information for your machine. 2. Make sure the rotary direction for bowl is in the same direction indicted by the bowl. 3.
-
Page 7: Fault Analysis
FAULT ANALYSIS: The fault for operation Possible Cause Possible Correction The bowl has been overloaded Turn off the power, and open cover Whilst the machine is in operation, beyond capacity. to the electric box, press the reset it suddenly stops working, and the button and then take out the excess capacity. - Page 8 Pic.10 PROFESSIONAL MAINTENANCE AND INSPECTION 5.12 Because these inspections are complex, it requires a company or technician who have the professional qualifications to start this job. When required, ask them to change the parts which are broken, and to inspect and adjust the inside of the machine to ensure it is safe.
-
Page 9: Installation
6. INSTALLATION A qualified person must install this machine in accordance with current regulations 6.1. UNPACKING AND HANDLING Wherever possible, the mixer should be transported to the installation position in the packaging provided to avoid any damage. Do not use a sharp knife to open the box to prevent damaging the machine. On first inspection, check for any possible shipping damages. - Page 10 HM-GM-25B - Circuit HM-GM-50BCircuit...
- Page 11 7. MACHINE ILLUSTRATION: HM-GM-25B Name Qty. Name Qty. Net cover Travel switch HEX NUT-M10 Dough bucket Stainless steel hexagonal socket 10 * Bucket base Stainless steel outer hexagonal M8X25 And face bar flat key (10x40) Bearing (6000) HSE30A Lower Shaft Dust Cover Support wheel Bearing (6308) Support wheel spacer sleeve...
- Page 12 Left and right upper and lower opening Belt (XPZ850) and closing brackets European standard pulley+cone sleeve - Stainless steel outer hexagonal 8 * 20 SPZ224-3-2012-35 Upper shaft pulley cushion block Mesh cover eccentric sleeve Bearing seat cover Belt (XPZ1202) Stainless steel countersunk head 5 * 10 Lower spindle pulleySPZ54-4-24 flat key (10x30) Bearing (6307)
- Page 13 HM-GM-50B Name Qty. Name Qty. Net cover Rubber foot cup 16 * 100 Dough bucket Movable casters Bucket base Mesh cover eccentric sleeve flat key (10x50) Supporting axle Stainless steel outer hexagonal M8X25 Bearing (6202) Bearing seat cover Support wheel Bearing (5210) Hexagon nut M10 Stainless steel outer hexagonal M12X50...
- Page 14 Barrel pulley(SPZ450-2-35) Chromium plated rod 20 * 280mm Galvanized enlarged flat pad - M8 (8* 50 Stainless steel outer hexagonal * 5) M10X35 Stainless steel hex socket screw(8X20） Lower spindle pulley(90-2-28) Hexagon set screw Bearing (6307) Cap nut M10 Lower main bearing seat Upper spindle pulley Lower spindle Upper shaft pulley cushion block...
- Page 15 LR-GM-75B Name Qty. Name Qty. Net Cover Support Wheel Spacer Sleeve Dough Bucket Beaing (60044) Countersunk cross head screw (M12X20) Support wheel Countersink pressure block (large) Five star handle (M16X65) Rubber foot cup 16 * 100 Bucket support swivel Stainless steel hex socket screw Upper motor pulley (LM260) (M12X30) Stainless steel outer hexagonal...
- Page 16 Through hole seven star handle 10 * 50 Mesh cover eccentric sleeve Pull rod (M10X650) Supporting axle Stainless steel outer hexagonal M8X20 Hamoki Limited 28 Maryland Road, Tongwell, Milton Keynes, MK15 8HF Company No.11313932 VAT No.296048767 Email: sales@hamoki.co.uk Web: www.hamoki.co.uk...
