Summary of Contents for Fentec SlatWall

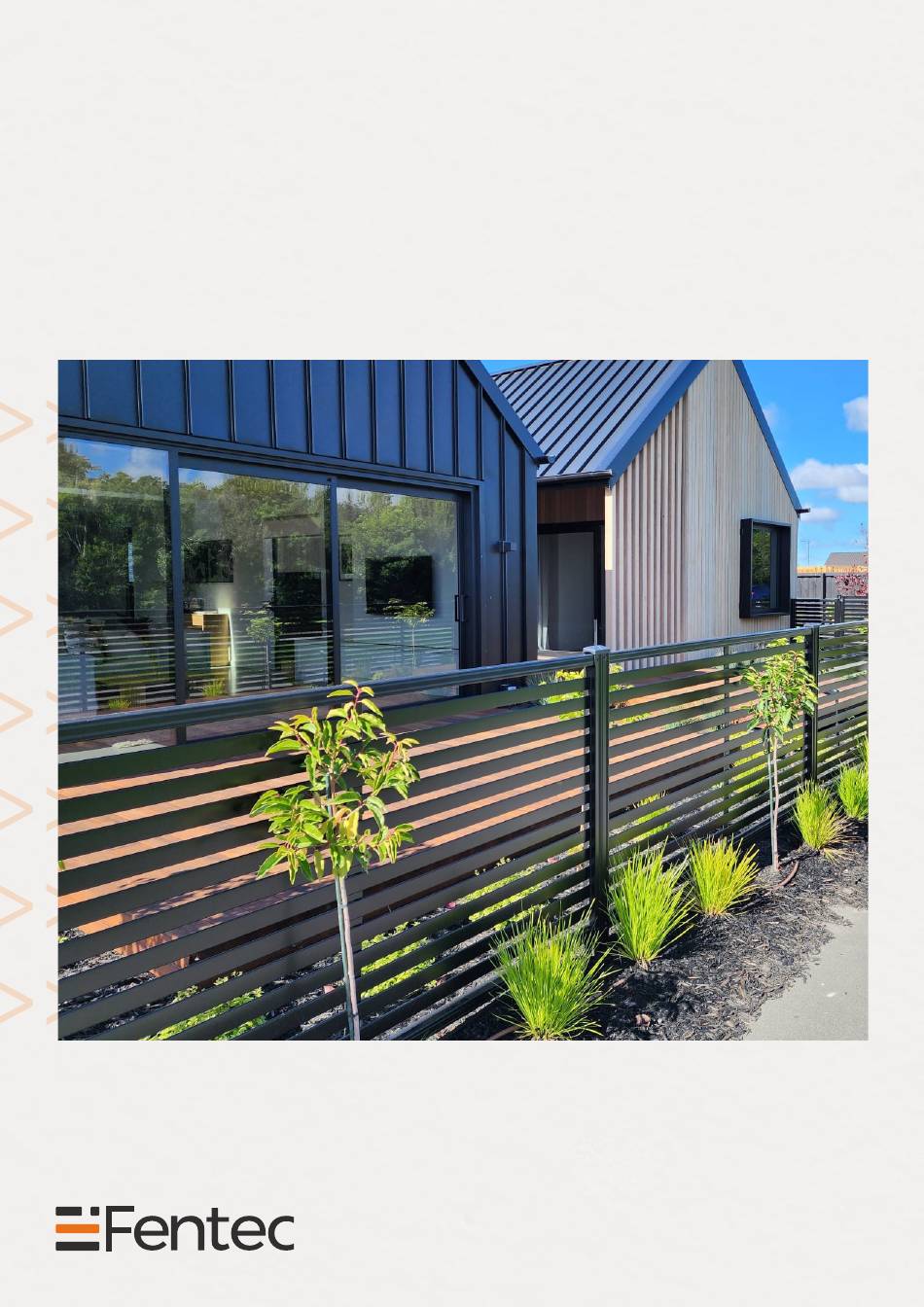

- Page 1 SlatWall Installation Guide A step-by-step guide to installing your fence...
-
Page 2: Tool List
Introduction Thank you for choosing Fentec SlatWall Fencing. The recommendations detailed in this guide This product will provide you with many years of are formulated along the lines of good building trouble free protection if installed in accordance practice. They are not intended to be an with the directions outlined in this document. -
Page 3: Components List
• Notched SlatWall steel slats (see table below for quantity). • SlatWall steel Centre Vertical Slat - pre-drilled including one pack of matching 4/5 aluminium rivets. Quantity equals 1 per slat. • Angle (300mm fence topper only - to attach Centre Vertical Slat to base of rail). -
Page 4: Post Installation
If it isn’t possible to fix posts as proposed Support post with temporary brace. here, please contact us for further information. Fill hole with fully mixed, wet concrete. Vibrate and compact the concrete to remove voids. fentec.co.nz | 0800 002 725... -
Page 5: Rail Installation
The slotted post insert (item 1) can be inserted into the C post (item 4) to determine the overall fixing position for the rail (item 5). Fix off bottom rail with the provided tek screws. fentec.co.nz | 0800 002 725... - Page 6 Step 6 > Installing post caps All SlatWall caps are supplied as a ‘double’ cap, which are designed to be snapped in half to create two single caps where required. Please note - only black double caps are available. Cut each side of the cap in line with the centre ridge.
- Page 7 Fentec. SlatWall Fencing is designed to withstand most wind conditions. The wind on the fence at your site will depend on a number of factors, including the number of surrounding properties and how exposed the location is.
- Page 8 | 0800 002 725 sales@fentec.co.nz...
