Summary of Contents for Bosch DIP-74C0-00N

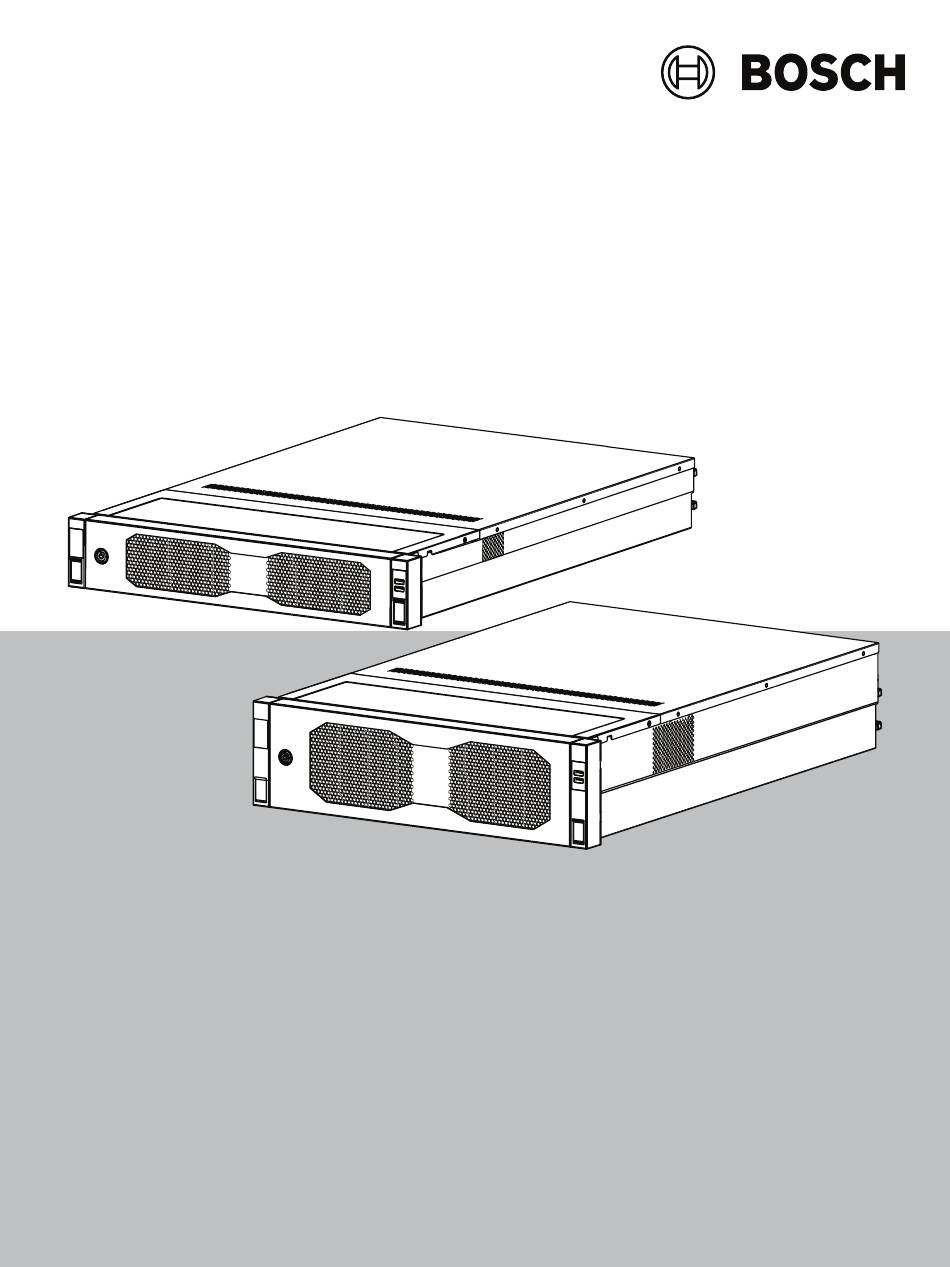

- Page 1 DIVAR IP all‑in‑one 7000 2U | DIVAR IP all‑in‑one 7000 3U DIP‑74C0‑00N | DIP‑74C4‑8HD | DIP‑74C8‑8HD | DIP‑74CI‑8HD | DIP‑74CI‑12HD | DIP‑74G0‑00N | DIP‑74GI‑16HD Installation manual...
-
Page 3: Table Of Contents
Installing a hard drive tray into a hard drive bay Turning on the unit System setup Default settings Prerequisites Operation modes First sign-in and initial system setup 8.4.1 Choosing operation mode BVMS Bosch Security Systems B.V. 2024-08 | V05 | F.01U.421.487 Installation manual... - Page 4 Recovering the unit Configuring BMC settings Troubleshooting Port 80 LED Service and maintenance Decommissioning and disposal Additional information 12.1 Additional documentation and client software 12.2 Support services and Bosch Academy 2024-08 | V05 | F.01U.421.487 Bosch Security Systems B.V. Installation manual...
-
Page 5: Safety
Install this product according to the instructions of the manufacturer. Notice! Accessories Use only accessories recommended by the manufacturer. Do not use accessories that are not recommended by the manufacturer, as they may cause hazards. Bosch Security Systems B.V. 2024-08 | V05 | F.01U.421.487 Installation manual... -
Page 6: Electrical Safety Precautions
Make sure that the power supply cord includes a grounding plug and is plugged into a grounded electrical outlet. Notice! Protect connection cables Protect all connection cables from possible damage, especially at connection points. 2024-08 | V05 | F.01U.421.487 Bosch Security Systems B.V. Installation manual... - Page 7 Be aware of the locations of the power on/off switch on the device as well as the room's emergency power-off switch, disconnection switch or electrical outlet. If an electrical accident occurs, you can then quickly remove power from the system. Bosch Security Systems B.V. 2024-08 | V05 | F.01U.421.487 Installation manual...
-
Page 8: Esd Precautions
Enclosure openings Do not block or cover the openings. Any openings in the enclosure are provided for ventilation purposes. These openings will prevent overheating and ensure a reliable operation. 2024-08 | V05 | F.01U.421.487 Bosch Security Systems B.V. Installation manual... -
Page 9: Service And Maintenance Precautions
State of California to cause birth defects and other reproductive harm. Notice! Video loss is inherent to digital video recording; therefore, Bosch Security Systems cannot be held liable for any damage that results from missing video information. -
Page 10: Cleaning
– Lock the front bezel to prevent unauthorized removal of the hard drives. Always remove the key from the lock and store the key in a secure place. 2024-08 | V05 | F.01U.421.487 Bosch Security Systems B.V. Installation manual... -
Page 11: Compliance
Limit local network access to trusted devices only. Details are described in the following documents which are available in the online product catalog: – Network Authentication 802.1X – Cybersecurity guidebook for Bosch IP video products – For access through public networks use only the secure (encrypted) communication channels. –... - Page 12 (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Responsible party Bosch Security Systems, LLC 130 Perinton Parkway 14450 Fairport, NY, USA www.boschsecurity.us Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
-
Page 13: Software Precautions
Bosch assumes no liability whatsoever for any damage caused by operating its products with outdated software components. You can find the latest software and available upgrade packages in the Bosch Security and Safety Systems download store under: https://downloadstore.boschsecurity.com/ 1.9.2 OSS information Bosch uses Open Source Software in the DIVAR IP all-in-one products. -
Page 14: Introduction
Power supply clamp (for locking power cord) EU Power cords US Power cords Front bezel box Front bezel Keys Rail kit box Rail modules Screw pack Product registration Register your product under: https://www.boschsecurity.com/product-registration/ 2024-08 | V05 | F.01U.421.487 Bosch Security Systems B.V. Installation manual... -
Page 15: System Overview
Running the full BVMS solution and powered by Bosch Video Recording Manager (VRM) including the Bosch Video Streaming Gateway (VSG) to integrate 3rd party cameras, DIVAR IP all-in-one 7000 is an intelligent IP storage device that eliminates the need for separate Network Video Recorder (NVR) server and storage hardware. -
Page 16: Device Views
Handles (for pulling the system out Hard drive tray from the rack, also houses a screw to secure the system to the rack) Hard drive tray LEDs 2 USB 3.2 Gen 1 ports (Type-A) 2024-08 | V05 | F.01U.421.487 Bosch Security Systems B.V. Installation manual... - Page 17 LAN port, LAN1: bottom LAN port) Note: Do not change the teaming mode. Port 80 LED VGA port (covered, not used for local operation) Power button Location LED (onboard) Bosch Security Systems B.V. 2024-08 | V05 | F.01U.421.487 Installation manual...
- Page 18 Handles (for pulling the system out Hard drive tray from the rack, also houses a screw to secure the system to the rack) Hard drive tray LEDs 2 USB 3.2 Gen 1 ports (Type-A) 2024-08 | V05 | F.01U.421.487 Bosch Security Systems B.V. Installation manual...
-
Page 19: Control Panel Elements
To remove all power, unplug the system before performing maintenance tasks. The reset button is used to reboot the system. Reset Bosch Security Systems B.V. 2024-08 | V05 | F.01U.421.487 Installation manual... -
Page 20: Hard Drive Tray Leds
LEDs on the front of the tray. LED state Description Lower hard Upper hard drive tray LED drive tray LED (green color) (red color) Indicates that a hard drive is not installed. 2024-08 | V05 | F.01U.421.487 Bosch Security Systems B.V. Installation manual... -
Page 21: Solid State Drive Tray Leds
LED state Description LAN 1/LAN 2 Green Indicates a bandwidth of 1 Gbps LED on the Amber Indicates a bandwidth of 100 Mbps right Indicates a bandwidth of 10 Mbps Bosch Security Systems B.V. 2024-08 | V05 | F.01U.421.487 Installation manual... - Page 22 Amber Indicates a bandwidth of 100 Mbps Indicates a bandwidth of 10 Mbps BMC LED on Green Connected the left Blinking Data is being accessed No connection 2024-08 | V05 | F.01U.421.487 Bosch Security Systems B.V. Installation manual...
-
Page 23: Preparing For Installation
The bezel is securely installed onto the system. To remove the front bezel Set the bezel lock to unlocked ( ) using the bundled bezel key. Bosch Security Systems B.V. 2024-08 | V05 | F.01U.421.487 Installation manual... -
Page 24: Choosing The Installation Location
Pull the bezel towards the left to remove the bezel completely from the system. Choosing the installation location – Place the system near at least one grounded power outlet. 2024-08 | V05 | F.01U.421.487 Bosch Security Systems B.V. Installation manual... -
Page 25: Rack Precautions
Allow the hard drives and power supply modules to cool before touching them. – Always keep the rack’s front door and all panels and components on the system closed when not servicing to maintain proper cooling. Bosch Security Systems B.V. 2024-08 | V05 | F.01U.421.487 Installation manual... -
Page 26: Installation Considerations
A reliable ground must be maintained at all times. To ensure this, the rack itself should be grounded. Particular attention should be given to power supply connections other than the direct connections to the branch circuit (i.e. the use of power strips, etc.). 2024-08 | V05 | F.01U.421.487 Bosch Security Systems B.V. Installation manual... -
Page 27: Rack Installation
Installing the inner rails to the chassis Caution! Do not pick up the chassis with the front handles. They are designed to pull the system from a rack only. Bosch Security Systems B.V. 2024-08 | V05 | F.01U.421.487 Installation manual... -
Page 28: Preparing The Inner Rails For Installation
Align the inner rail to the notches on both sides of the chassis. Push the inner rail backwards towards the rear of the chassis so that the inner rail extensions click and are latched onto the chassis. 2024-08 | V05 | F.01U.421.487 Bosch Security Systems B.V. Installation manual... -
Page 29: Installing The Outer Rails To The Rack
The outer rails come with mounting screws pre-installed on the front of the outer rail. The pre-installed mounting screws allow for installation in square-hole racks without using any tools. Bosch Security Systems B.V. 2024-08 | V05 | F.01U.421.487 Installation manual... -
Page 30: Installing The Outer Rails In A Square-Hole Rack
Release the rear clamps and make sure that they click into place and clamp onto the rack posts. Press 5.2.2 Installing the outer rails in a round-hole rack To install the outer rails in a round-hole threaded rack: 2024-08 | V05 | F.01U.421.487 Bosch Security Systems B.V. Installation manual... - Page 31 Align the mounting bracket pins at the rear end of the outer rails with the holes in the rack posts. Then press down the clamps and push the mounting bracket pins into the holes in the rack posts while pushing down the clamps. Bosch Security Systems B.V. 2024-08 | V05 | F.01U.421.487 Installation manual...
-
Page 32: Installing The Outer Rails In A 10-32 Threaded Rack
Remove the pre-installed rack mounting screws for the square-hole rack from both, the front end (1) and the rear end (2) of the outer rail. Remove also the middle M5-bracket screw (3) on the front end of the outer rail. 2024-08 | V05 | F.01U.421.487 Bosch Security Systems B.V. Installation manual... - Page 33 Release the rear clamps and make sure that they click into place and clamp onto the rack posts. Press click Click! Click! click Bosch Security Systems B.V. 2024-08 | V05 | F.01U.421.487 Installation manual...
-
Page 34: Installing The Chassis In The Rack
Fully extend the intermediate rail (1) until it clicks to a stop. Align the inner rails of the chassis with the intermediate rails. Slide the inner rails into the intermediate rails, keeping the pressure even on both sides. 2024-08 | V05 | F.01U.421.487 Bosch Security Systems B.V. Installation manual... - Page 35 DIVAR IP all-in-one 7000 2U | DIVAR IP all-in-one Rack installation | en 7000 3U Bosch Security Systems B.V. 2024-08 | V05 | F.01U.421.487 Installation manual...
- Page 36 Push the chassis completely into the rack and make sure that it clicks into the locked position, then pull the handles down (1) and secure the chassis using the pre-installed screw. 2024-08 | V05 | F.01U.421.487 Bosch Security Systems B.V. Installation manual...
- Page 37 DIVAR IP all-in-one 7000 2U | DIVAR IP all-in-one Rack installation | en 7000 3U Secure the rear end of the chassis using the bundled screw (2). Bosch Security Systems B.V. 2024-08 | V05 | F.01U.421.487 Installation manual...
-
Page 38: Installing A Sata Hard Drive
Bosch based on available failure rates. Bosch is not liable for any data loss or damages, or system failures of units equipped with hard drives that are not supplied by Bosch. -
Page 39: Installing A Hard Drive Into A Hard Drive Tray
- Wear anti-static gloves or an ESD wrist strap connected by a ground cord to a properly grounded device or surface. To install a hard drive into a hard drive tray: Bosch Security Systems B.V. 2024-08 | V05 | F.01U.421.487 Installation manual... -
Page 40: Installing A Hard Drive Tray Into A Hard Drive Bay
Push the hard drive tray into the hard drive bay until the handle retracts and the hard drive tray clicks into the locked position. 2024-08 | V05 | F.01U.421.487 Bosch Security Systems B.V. Installation manual... - Page 41 DIVAR IP all-in-one 7000 2U | DIVAR IP all-in-one Installing a SATA hard drive | en 7000 3U Bosch Security Systems B.V. 2024-08 | V05 | F.01U.421.487 Installation manual...
-
Page 42: Turning On The Unit
Plug the power cords from the power supply units into a high-quality power strip that offers protection from electrical noise and power surges. Bosch recommends to use an uninterruptible power supply (UPS). Push the power button on the control panel to turn on the unit. -
Page 43: System Setup
Full video recording and management system, utilizing the BVMS and VRM core components and services: This mode allows for advanced video management features such as event and alarm handling. Bosch Security Systems B.V. 2024-08 | V05 | F.01U.421.487 Installation manual... -
Page 44: First Sign-In And Initial System Setup
– Minimum 14 characters – The password must contain characters from three of the following four categories: – At least one uppercase letter. – At least one lowercase letter. 2024-08 | V05 | F.01U.421.487 Bosch Security Systems B.V. Installation manual... - Page 45 Selection page. Click the bar that displays the installation file to start the installation. Notice: Make sure that the latest version of DIVAR IP System Manager is installed. You can find the latest software and available upgrade packages in the Bosch Security and Safety Systems download store under: https://downloadstore.boschsecurity.com/.
-
Page 46: Choosing Operation Mode Bvms
After all software packages have been installed successfully, the system restarts. After restart, you are directed to the Windows sign-in screen. Notice! For further details, refer to the VRM documentation. 2024-08 | V05 | F.01U.421.487 Bosch Security Systems B.V. Installation manual... -
Page 47: Choosing Operation Mode Iscsi Storage
Hard drives that have been added to an empty unit need to be configured before using them for video recording. To configure new hard drives for video recording, you must do the following: Configuring RAID5, page 48. Recovering the unit, page 49. Bosch Security Systems B.V. 2024-08 | V05 | F.01U.421.487 Installation manual... -
Page 48: Configuring Raid5
The initial BIOS password is unique for each unit. You can find it on the label at the rear of the unit. Bosch strongly recommends to change this initial password. Make sure to store the new password in a secure location. -
Page 49: Recovering The Unit
Notice! Do not turn off the unit during the process. This will damage the recovery media. Bosch Security Systems B.V. 2024-08 | V05 | F.01U.421.487 Installation manual... -
Page 50: Configuring Bmc Settings
The initial BIOS password is unique for each unit. You can find it on the label at the rear of the unit. Bosch strongly recommends to change this initial password. Make sure to store the new password in a secure location. - Page 51 DIVAR IP all-in-one 7000 2U | DIVAR IP all-in-one System setup | en 7000 3U Set the desired network configuration parameters. Press F4 and Enter to save and exit. The DIVAR IP all-in-one 7000 unit restarts. Bosch Security Systems B.V. 2024-08 | V05 | F.01U.421.487 Installation manual...
-
Page 52: Troubleshooting
These POST codes appear at the bottom right of the BIOS screen as a two-digit string that is the same as the two-digit output from the primary I/O port 80. The POST code may be requested by Bosch Technical support in case of troubleshooting. 2024-08 | V05 | F.01U.421.487 Bosch Security Systems B.V. -
Page 53: Service And Maintenance
The storage equipment is shipped with an original manufacturer service and support agreement for hardware. The Bosch technical support is the single point of contact in case of failure but the service and support obligations are fulfilled by the hardware manufacturer or a partner. -
Page 54: Decommissioning And Disposal
Dispose such equipment according to local laws and regulations, to allow their reuse and/or recycling. This will help in conserving resources, and in protecting human health and the environment. 2024-08 | V05 | F.01U.421.487 Bosch Security Systems B.V. Installation manual... -
Page 55: Additional Information
For more information, software downloads, and documentation, go to the respective product page in the product catalog: http://www.boschsecurity.com You can find the latest software and available upgrade packages in the Bosch Security and Safety Systems download store under: https://downloadstore.boschsecurity.com/ 12.2... - Page 56 DIVAR IP all-in-one 7000 2U | DIVAR IP all-in-one | Additional information 7000 3U 2024-08 | V05 | F.01U.421.487 Bosch Security Systems B.V. Installation manual...
- Page 57 DIVAR IP all-in-one 7000 2U | DIVAR IP all-in-one Additional information | 7000 3U Bosch Security Systems B.V. 2024-08 | V05 | F.01U.421.487 Installation manual...
- Page 58 DIVAR IP all-in-one 7000 2U | DIVAR IP all-in-one | Additional information 7000 3U 2024-08 | V05 | F.01U.421.487 Bosch Security Systems B.V. Installation manual...
- Page 60 Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven Netherlands www.boschsecurity.com © Bosch Security Systems B.V., 2024 Building solutions for a better life 202408131758...
