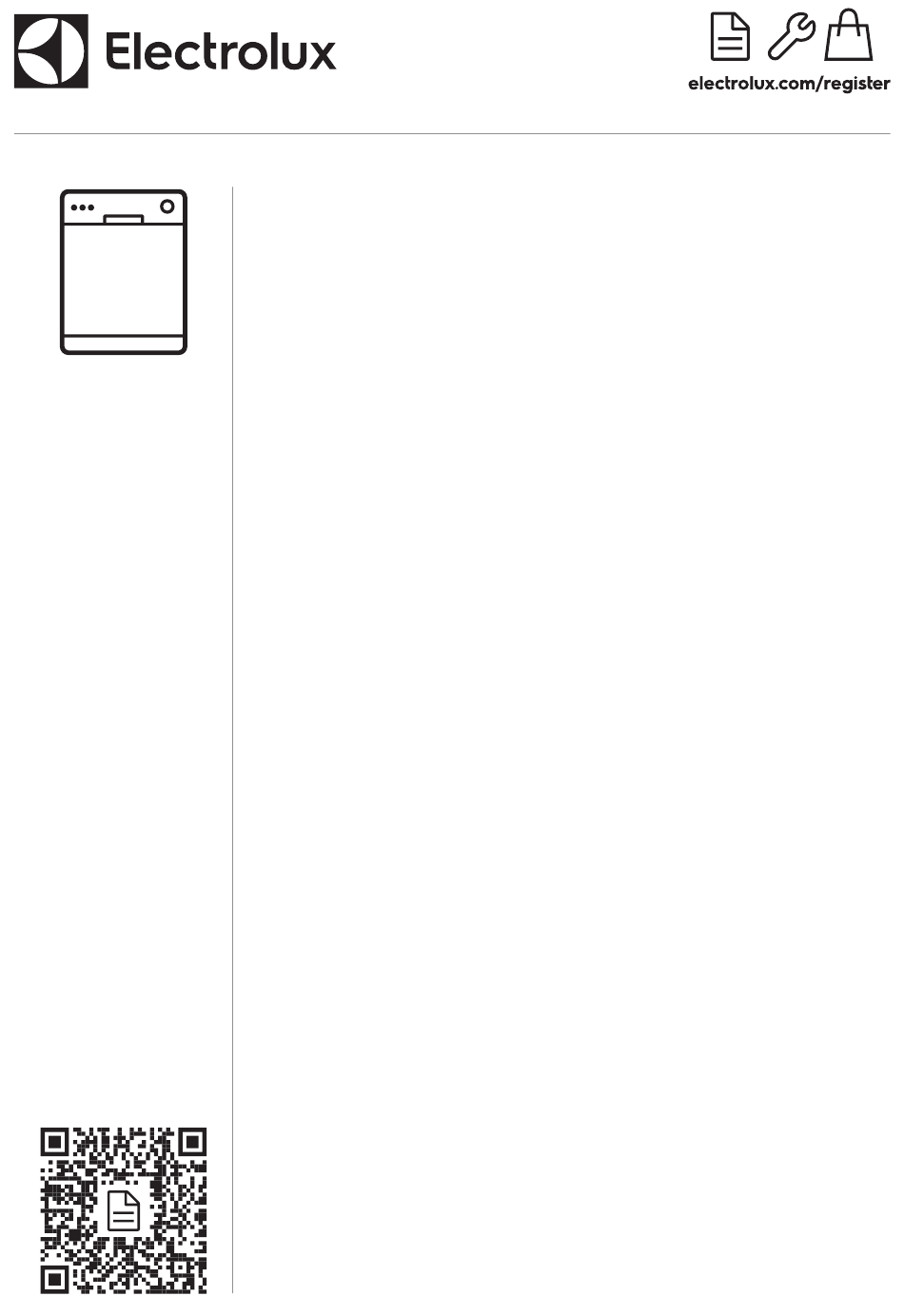

  • Page 1 EN User Manual | Dishwasher EES48320L...

  • Page 2: Table Of Contents

    Welcome to Electrolux! Thank you for choosing our appliance. Get usage advice, brochures, trouble shooter, service and repair information: www.electrolux.com/support Subject to change without notice. CONTENTS 1. SAFETY INFORMATION................2 2. SAFETY INSTRUCTIONS................4 3. INSTALLATION....................5 4. PRODUCT DESCRIPTION................7 5.

  • Page 3: General Safety

    • Children of less than 3 years of age should be kept away from the appliance unless continuously supervised. • Children should be supervised to ensure that they do not play with the appliance. • Keep detergents away from children. •...

  • Page 4: Safety Instructions

    • If the appliance has ventilation openings in the base, they must not be covered e.g. by a carpet. • The appliance is to be connected to the water mains using the new supplied hose-sets. Old hose sets must not be reused.

  • Page 5: Installation

    3. INSTALLATION 3.1 Building in WARNING! Refer to Safety chapters before www.youtube.com/electrolux installation. www.youtube.com/aeg For detailed installation information, see the How to install your AEG/Electrolux installation instruction supplied with the 60 cm Sliding Door Dishwasher appliance. ENGLISH...
  • Page 6 3.2 Safety caps If the furniture panel is not installed, open the 5 mm appliance door carefully to avoid the risk of injury. After installation, make sure the plastic covers are locked in position. Damage or removal of the plastic covers on the sides of the door may impact the functionality of the appliance and may cause an injury.

  • Page 7: Product Description

    4. PRODUCT DESCRIPTION Ceiling spray arm Lower basket Upper spray arm Upper basket Lower spray arm Cutlery drawer Filters Rating plate The graphic is a general overview. For Salt container more details, refer to other chapters or documents provided with the appliance. Air vent Rinse aid dispenser Detergent dispenser...

  • Page 8: Control Panel

    5. CONTROL PANEL On/Off button / Reset button Option buttons (EXTRAS) Delay start button AUTO Sense program button Display MY TIME program selection bar 5.1 Display 5.2 ECOMETER The ECOMETER indicates how the programme selection impacts energy and water consumption. The more bars are on, the lower the consumption is.

  • Page 9: Programme Selection

    6. PROGRAMME SELECTION 6.1 MY TIME consumption for crockery and cutlery with normal soil. This is the standard MY TIME selection bar allows to select a programme for test institutes. suitable dishwashing cycle based on programme duration. 6.2 AUTO Sense The AUTO Sense programme automatically adjusts the dishwashing cycle to the type of load.

  • Page 10: Consumption Values

    Programme Dishwasher Degree of Programme phases EXTRAS load soil Not applicable • Prewash Pre-rinse Crockery, cutlery Fresh, lightly • Dishwashing 60 °C • ExtraPower dried-on • Intermediate rinse • GlassCare • Final rinse 50 °C • AirDry 1h 30min Crockery, cut‐ Normal, lightly •...

  • Page 11: Information For Test Institutes

    Water (l) Energy (kWh) Duration (min) Programme 1)2) Pre-rinse 0.020 12.8 0.910 1h 30min 12.1 1.080 2h 40min 12.0 1.240 10.5 0.848 AUTO Sense 12.1 1.230 Machine Care 10.1 0.610 The pressure and the temperature of the water, the variations of the mains supply, the options, the quantity of dishes and the degree of soil can change the values.

  • Page 12: Setting Mode

    • The bar of the ECOMETER dedicated to the chosen setting flashes. • The display shows the current setting value. 2. Press OK to enter the setting. • The bar of the ECOMETER dedicated to the chosen setting is on. The other bars are off.

  • Page 13: The Water Softener

    The higher the content of these minerals, the harder your water is. Water hardness is measured in equivalent scales. After reaching 65535, the cycle counter restarts. The water softener should be adjusted according to the hardness of the water in your 7.4 The water softener area.

  • Page 14: The Rinse Aid Empty Notification

    If standard detergent or multi-tablets without rinse aid are used, activate the notification to Water softener level Amount of water (l) keep the rinse aid refill indicator active. 7.6 End sound In case of the high water softener setting, it You can activate an acoustic signal that may occur also in the middle of the sounds when the programme is completed.

  • Page 15: Before First Use

    7.8 Key tones The buttons on the control panel make a click When AirDry opens the door, Beam-on- sound when you press them. You can Floor might not be completely visible. To deactivate this sound. see if the programme is complete, look at the control panel.

  • Page 16: Daily Use

    8.2 How to fill the rinse aid CAUTION! dispenser Only use rinse aid designed specifically for dishwashers. 1. Press the release button (D) to open the lid (C). 2. Pour the rinse aid in the dispenser (A) until the liquid reaches the fill level 'max'. 3.

  • Page 17: How To Delay The Start Of A Programme

    9.5 How to start the AUTO Sense • The light related to the selected program programme is on. • The ECOMETER indicates the level of energy and water consumption. 1. Press • The display shows the programme • The light related to the button is on. duration.

  • Page 18: Opening The Door While The Appliance Operates

    9.9 Opening the door while the The function comes into operation appliance operates automatically: • When the programme is completed. Opening the door while a programme is • After 5 minutes if a programme was not running stops the appliance. It may affect the started.

  • Page 19: What To Do If You Want To Stop Using Multi-Tablets

    • Detergent tablets do not fully dissolve with • The cap of the salt container is tight. short programmes. To prevent detergent • The spray arms are not clogged. residues on the tableware, we recommend • There is enough salt and rinse aid (unless that you use tablets with long you use multi-tablets).

  • Page 20: Care And Cleaning

    11. CARE AND CLEANING 11.2 Internal cleaning WARNING! • Clean the appliance interior with a soft Before any maintenance other than damp cloth. running the programme Machine Care, • Do not use abrasive products, abrasive deactivate the appliance and disconnect cleaning pads, sharp tools, strong the mains plug from the main socket.
  • Page 21 5. Make sure that there are no residues of food or soil in or around the edge of the 1. Turn the filter (B) counterclockwise and sump. remove it. 6. Put back in place the flat filter (A). Make sure that it is correctly positioned under the 2 guides.

  • Page 22: Cleaning The Lower Spray Arm

    CAUTION! An incorrect position of the filters can cause bad washing results and damage to the appliance. 11.6 Cleaning the lower spray arm We recommend to clean the lower spray arm regularly to prevent soil from clogging the holes. Clogged holes can cause unsatisfactory washing results.

  • Page 23: Troubleshooting

    2. Move the upper basket to the lowest level 5. To install the spray arm (C) back, insert to reach the spray arm more easily. the mounting element (B) in the spray 3. To detach the spray arm (C) from the arm and fix it in the delivery tube (A) by delivery tube (A), turn the mounting turning it clockwise.
  • Page 24 Problem and alarm code Possible cause and solution The appliance does not fill with wa‐ • Make sure that the water tap is open. ter. • Make sure that the pressure of the water supply is not too low. For this The display shows i10 or i11.
  • Page 25 Problem and alarm code Possible cause and solution Small leak from the appliance door. • The appliance is not levelled. Loosen or tighten the adjustable feet (if applicable). • The appliance door is not centred on the tub. Adjust the rear foot (if ap‐ plicable).
  • Page 26 12.2 The dishwashing and drying results are not satisfactory Problem Possible cause and solution Poor washing results. • Refer to "Daily use", "Hints and tips" and the basket loading leaf‐ let. • Use more intensive washing programme. • Activate the ExtraPower option to improve the washing results of a selected programme.

  • Page 27: Technical Information

    Problem Possible cause and solution Limescale deposits on the tableware, • The level of salt is low, check the refill indicator. on the tub and on the inside of the • The cap of the salt container is loose. door. •...

  • Page 28: Environmental Concerns

    rating plate of the appliance. Refer to the For more detailed information about the chapter "Product description". energy label, visit www.theenergylabel.eu. 14. ENVIRONMENTAL CONCERNS appliances marked with the symbol with Recycle materials with the symbol . Put the the household waste. Return the product to packaging in relevant containers to recycle it.
  • Page 32 156825810-A-452023...
