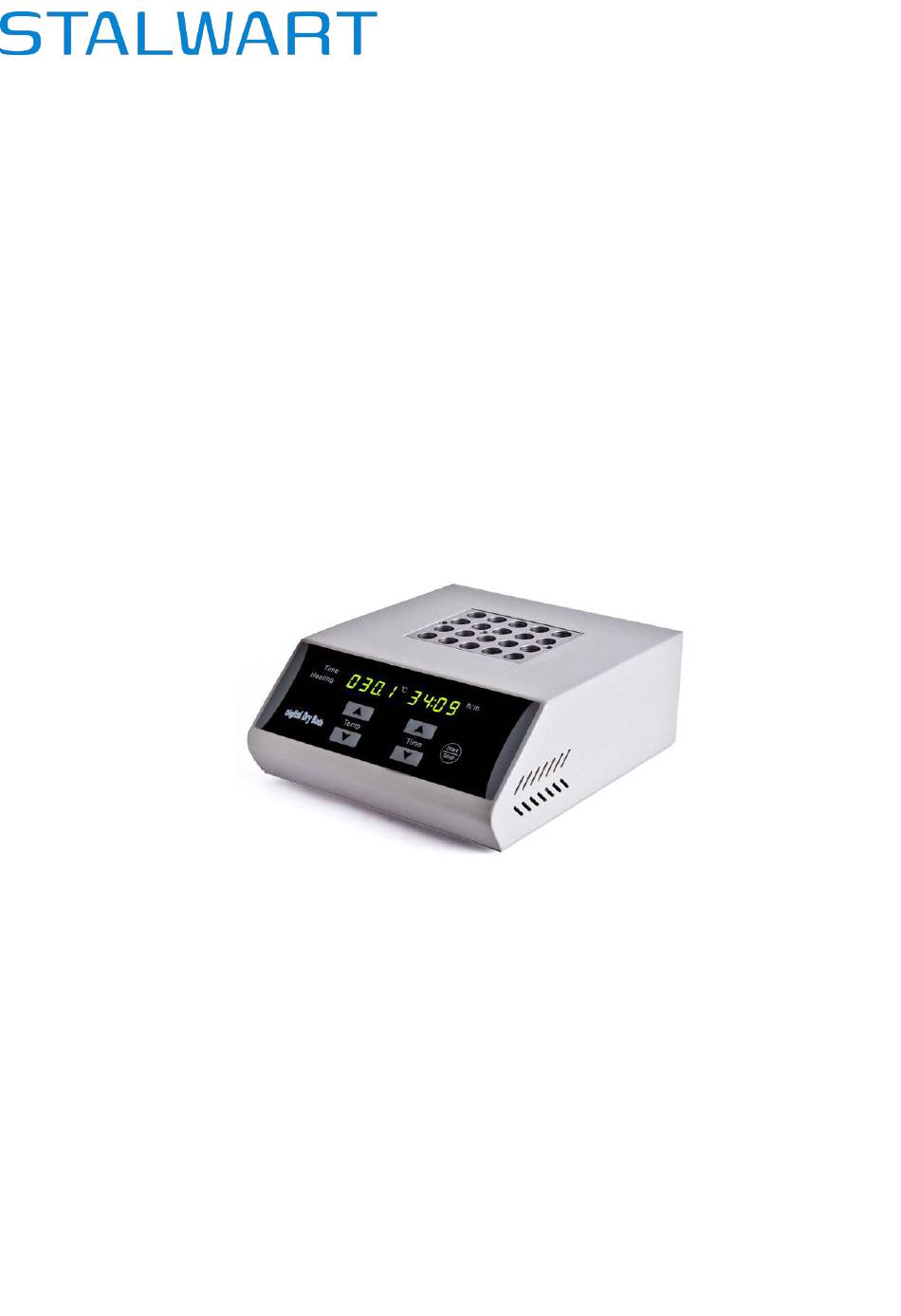

- Page 1 Operations Manual SDB-2001 Dry Bath Incubator...
- Page 3 File No.: MU01SM File Version: Version 1.0 PREFACE Thanks for choosing dry bath incubator. This operation manual describes function and operation of the instrument. In order to use the instrument properly, please read this manual carefully before operating the Instrument. Opening Check Please check the instrument and appendix with the packing list when you first open the packing case.
-
Page 4: Safety Warnings And Guidelines
Safety Warnings and Guidelines 1 Important Operation Information of The Security Users should have an entire conception of how to use the instrument properly before operating it. Please read this operation manual carefully before using the instrument. It is forbidden operating before read the operation manual. Read the guidelines and directions below and carry out the countermeasure according to them. - Page 5 Make sure the voltage is complying with the voltage required. Make sure the rated electrical outlet load no lower than the demand. Power line should be replaced with the same type if it any damage. Make sure there is nothing on the power line.
-
Page 6: Table Of Contents
2. Start and stop................... - 7 - 3. Temperature calibration..............- 7 - 4. The exchange of the metal block..........- 10 - Chapter 5: Error Analysis and Trouble Shooting......- 11 - Annex 1: Wiring Diagram of SDB-2001 Dry Bath INCUBATOR..- 12 -... -
Page 7: Chapter 1: Introduction
Dry Bath Incubator Operation Manual Chapter 1 Introduction Chapter 1: Introduction The dry bath incubator is a microprocessor-controlled thermostat device with high precision of temperature control. It is good for sample preparation parallelism. And it is used as an alternative to the traditional water bath devices. It is widely used in the cultivation, preservation and reaction of various samples. -
Page 8: Chapter 2: Specifications
1. The normal working condition The room temperature: 5 C ~30 C The relative humidity: ≤70% The using power: 110V / 220V ~50/60Hz 2. Basic parameters and performance SDB-2001 Model Temp. Control Range R.T.+5°C 150°C Temp. Setting Range 5°C 150°C Temp. - Page 9 Dry Bath Incubator Operation Manual Chapter 2 Specifications Exchangeable blocks for DKT series （ Below types just for reference. It is subject to change with or without prior notice. ） Type Description Dimension (mm) DT01 6mm x 42 95.5 x 76.5 x 50 DT02 7mm x 42 95.5 x 76.5 x 50...
-
Page 10: Chapter 3: Basic Operation Instruction
Dry Bath Incubator Operation Manual Chapter 3 Basic Operation Introduction Chapter 3: Basic Operation Instruction This chapter mainly describes the instrument’s mechanical structure, the keyboard and functions of each key, as well as preparations before power on.(The picture is based on dkt200-2 for reference). Please learn this chapter well before the Thermo Shaker to be operated the first time. -
Page 11: Button Instruction
Dry Bath Incubator Operation Manual Chapter 3 Basic Operation Introduction 2. Operation panel 3. Button instruction Decreasing button: decrease the value set Increasing button: increase the value set START/STOP Run/stop button: start operation when press the button after setting the temperature and the time value. Press this button for 2 seconds to stop the instrument in operation. -
Page 12: Chapter 4: Operation Guide
Dry Bath Incubator Operation Manual Chapter 4 Operation Guide Chapter 4: Operation Guide 1. Temperature and time setting a) Power on, the LED displays “ ” as the right chart. The instrument enter to the initial state with sound of “du…”. b) Two seconds later, the value changes to block current temperature and setting time of last operation. -
Page 13: Start And Stop
Dry Bath Incubator Operation Manual Chapter 4 Operation Guide 2. Start and stop a) After accomplishment of temperature and time setting, click the Start/Stop key to start the instrument operation. The temperature rises with sound of “du...” When the instrument is heating, the dot “.” of the temperature value flickers regularly. - Page 14 Dry Bath Incubator Operation Manual Chapter 4 Operation Guide within ±0.5 C after temperature calibration. Both the environmental and the block temperature should be lower than 35 C when calibration. Adjustment Methods: a) Power on the instrument, it enters into waiting interface. Make sure the current temperature in display is below 35 C.
- Page 15 Dry Bath Incubator Operation Manual Chapter 4 Operation Guide ▲ c). Press simultaneously to enter the temperature calibration interface as the right chart. LED display “ ” in the time display, the temperature display the current temperature and the program auto control the temperature to 40 C.
-
Page 16: The Exchange Of The Metal Block
Dry Bath Incubator Operation Manual Chapter 4 Operation Guide 4. The exchange of the metal block Screwdriv a) Pull out the two screws which fix the block to the heating board with the screwdriver. Screw b) Fix the raiser in the center well of the block. Raiser c) Pull out the raiser with the block. -
Page 17: Chapter 5: Error Analysis And Trouble Shooting
Dry Bath Incubator Operation Manual Chapter 5 Failure and Trouble Shooting Chapter 5: Error Analysis and Trouble Shooting Fault phenomenon Cause analysis Recovery processing Check the connection of No power power Exchange fuse No signal on the display Broken fuse (250V 4A Ф5x20) when power on Broken switch... - Page 18 Dry Bath Incubator Operation Manual Annex 1 Annex 1：Wiring Diagram for SDB-2001 （ Below diagram is just for reference. It is subject to change without prior notice. ） Power Input AC220V Fuse AC250V 3A 5 20 Monitor Switch Switch AC250V 10A...
