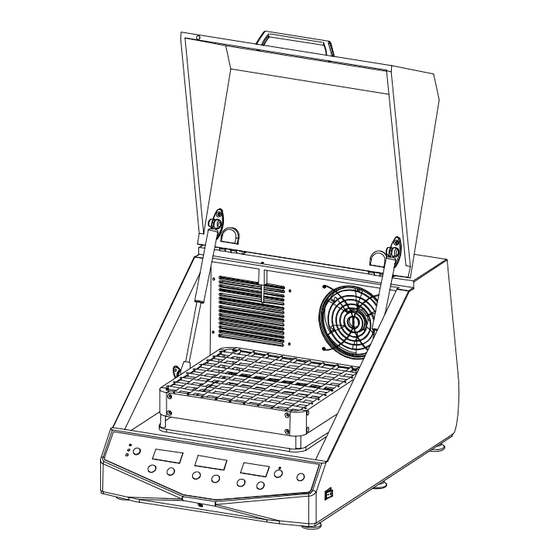

- Page 1 Operations Manual Version 1.0 SIS-60C Incubator Shaker...
- Page 3 File Version: Version 2019.3.1.0 PREFACE Thanks for choosing incubator Shaker. This operation manual describes function and operation of the instrument. In order to use the instrument properly, please read this manual carefully before operating the Instrument. Opening Check Please check the instrument and appendix with the packing list when you first open the packing case.
- Page 4 Safety Warnings and Guidelines 1 Important operation information of the security Users should have an entire conception of how to use the instrument properly before operating it. Please read this operation manual carefully before using the instrument. It is forbidden operating before read the operation manual. Read the guidelines and directions below and carry out the countermeasure according to them.
- Page 5 Power off when operation finished. If do not use the instrument for a long period, pull off the connector plug, cover a piece of cloth on the instrument to prevent from dust. Pull the connector plug from the jack at once in the following case, and contact the vendor.
-
Page 6: Table Of Contents
CONTENTS CHAPTER 1 INTRODUCTION ......................1 CHAPTER 2 SPECIFICATIONS ..................... 2 THE NORMAL OPERATION CONDITION ....................2 THE BASIC PARAMETERS AND SPECIFICATIONS ...................2 CHAPTER 3 PREPARATION ......................3 STRUCTURE DESCRIPTION ........................3 KEYBOARD AND DISPLAY PANEL ......................4 POWER CONNECTION ......................... 4 PLATFORM INSTALLATION ........................ -
Page 7: Chapter 1 Introduction
Chapter 1 Introduction Chapter 1 Introduction The incubator shaker SIS-60C is one temperature controlled biochemical instrument combined incubation and shaking function. It is widely used in cell culture, fermentation, hybridization, biochemistry, research of enzyme and cell tissue, etc. which required higher quality of temperature controlling and shaking speed. -
Page 8: Chapter 2 Specifications
Incubator Shaker SIS-60C Chapter 2 Specifications Chapter 2 Specifications 1. The Normal Operation Condition Ambient Temperature: 45 C Relative Humidity: ≤70% Power: AC110/220V~ 2. The Basic Parameters and Specifications SIS-60C Type Incubator Shaker Temperature Control +4 ~60 R.T. ≤25 Range Temp. -
Page 9: Chapter 3 Preparation
Incubator Shaker SIS-60C Chapter 3 Preparation Chapter 3 Preparation This chapter mainly describes the instrument’s mechanical structure, the keyboard and functions of each key, as well as preparations before power on. Please learn this chapter well before the Instrument is to be operated at the first time. -
Page 10: Keyboard And Display Panel
Incubator Shaker SIS-60C Chapter 3 Preparation 2. Keyboard and Display Panel 3. Button instruction: Increase the speed, temperature or time setting value Decrease the speed, temperature or time setting value In the process of control, you can press this button at any time to... -
Page 11: Platform Installation
Incubator Shaker SIS-60C Chapter 3 Preparation 3. Platform Installation Six kinds of platforms SUP-12, SPP-4, SPP-4D, SPW-260, SP6-250, SP12-100 are optional for incubator shaker SIS60C.. SPP-4 SUP-12 SP12-100 SP6-250 Installation for SUP-12, SPP-4, SPP-4D, SPW-260 Take out the pad of... -
Page 12: Installationfor Sp6-250 Or Sp12-100
Incubator Shaker SIS-60C Chapter 3 Preparation 2) Installation for SP6-250 or SP12-100 Remove the 2 flask Fix the platform Put back the 2 flask clamps in the middle with 4 M4X8 clamps to the of the platform. screws. platform. ─... -
Page 13: Chapter4Operationguide
Incubator Shaker SIS-60C Chapter 4 Operation Guide Chapter 4 Operation Guide 1. Speed, Time and Temperature Setting All digital of LED display as the right chart when power on. The instrument enters into the initial program with beep. Press of speed key. It displays last running speed. -
Page 14: Start/Stop
Incubator Shaker SIS-60C Chapter 4 Operation Guide E.g., to set the temperature to 55.5°C, press until time value displays “055.5”. d) Press the check button can view the set temperature, automatically quit after 3 seconds. Display the warehouse real-time temperature, then add A symbol ahead of temperature in order to distinguish. - Page 15 Incubator Shaker SIS-60C Chapter 4 Operation Guide d) When the cover is opened during running, the speed, temperature and time will be stopped, and the air volume of the fan will drop to half of the original wind speed. Once the insulation cover is closed again, the system will automatically enter the normal running state.
-
Page 16: Chapter5Failureanalysisandtroubleshooting
Incubator Shaker SIS-60C Chapter 5 Failure Analysis and Trouble Shooting Chapter 5 Failure Analysis and Trouble Shooting Failure Analysis and Processing Procedures Phenomenon Possible Causes Processing Procedure No power Check the power Exchange the fuse Broken fuse No signal display when (250V 3.0A Ф5x20) -
Page 17: Appendixa：wiringdiagramofincubatorshakersis60C
Incubator Shaker SIS-60C Appendix A Appendix A：Wiring Diagram of Incubator Shaker （ Below diagram is just for reference. It is subject to change without prior notice. ） Power input AC220V 150VA 50Hz Fuse AC250V2A 5 20 Control Switch Display Board... - Page 18 NOTE...
