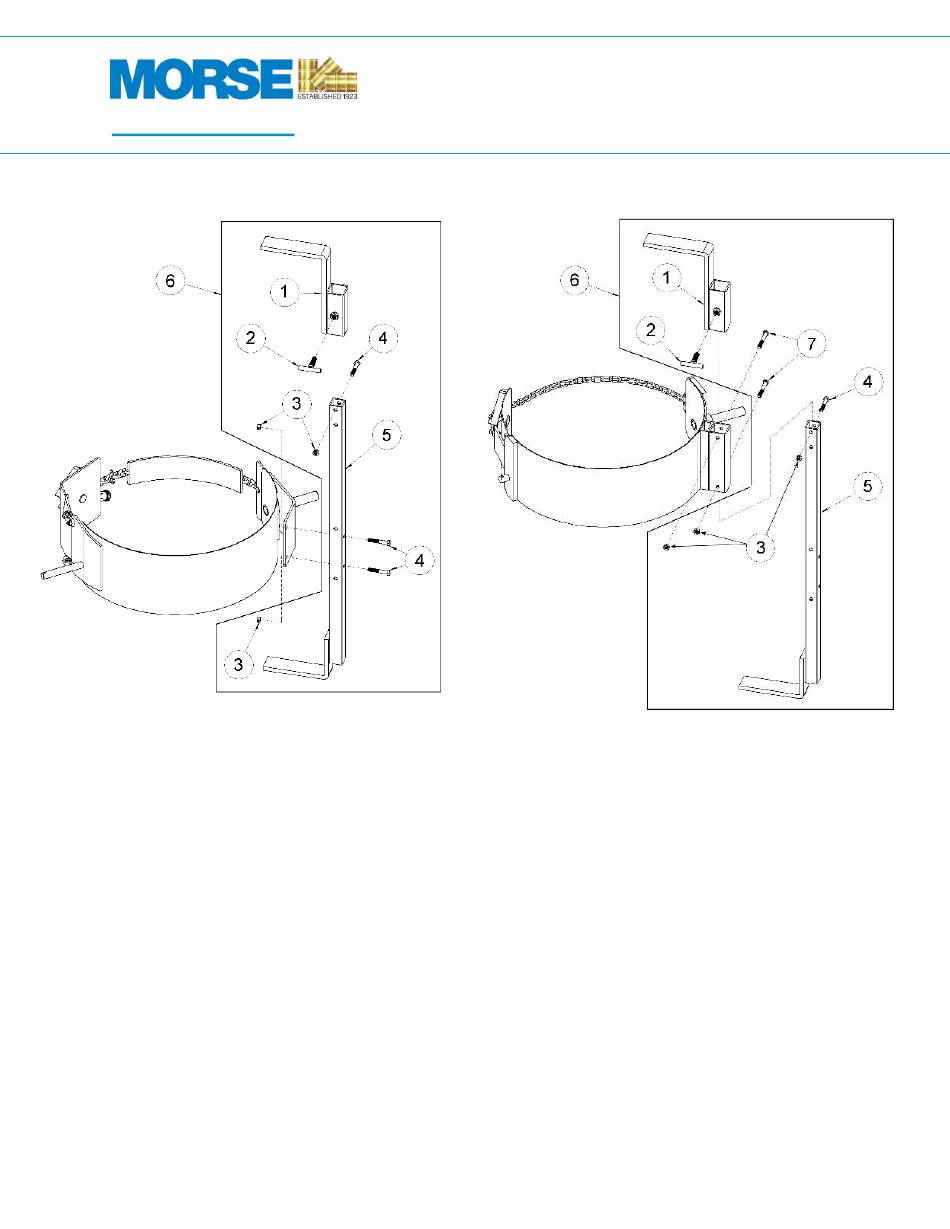

INSTALLATION INSTRUCTIONS for MORCINCH™ Drum Holder
1.
Bolt bottom bracket (item 5) to drum holder, using 2 bolts (item 4) and 2
nuts (item 3), bolt in place through the 2 lowest holes on bottom bracket.
2.
Slide hold down (item 1) down over top of bottom bracket and tighten in
place with tee handle (item 2).
3.
Fasten stop bolt (item 4) and nut (item 3) into top hole of bottom bracket.
Copyright – Morse Mfg. Co., Inc.
Kit 4556M-P
Bracket Assembly, Spark Resistant Parts
SN 0209 to Current (MMYY) or 400000 to Current
INSTALLATION INSTRUCTIONS for Drum Holder with Socket Tube
1.
Slide bottom bracket (item 5) up through socket tube and, using 2
bolts (item 7) and 2 nuts (item 3), bolt in place through the 2
lowest holes on bottom bracket.
2.
Slide hold down (item 1) down over top of bottom bracket and
tighten in place with tee handle (item 2).
3.
Fasten stop bolt (item 4) and nut (item 3) into top hole of bottom
bracket. Use bottom hole for 195 Series starting with serial
number 0207.
25 September 2024
Page 1
