morse 4560M-P Operator's Manual

The Specialist In Drum Handling Equipment
CONTENTS

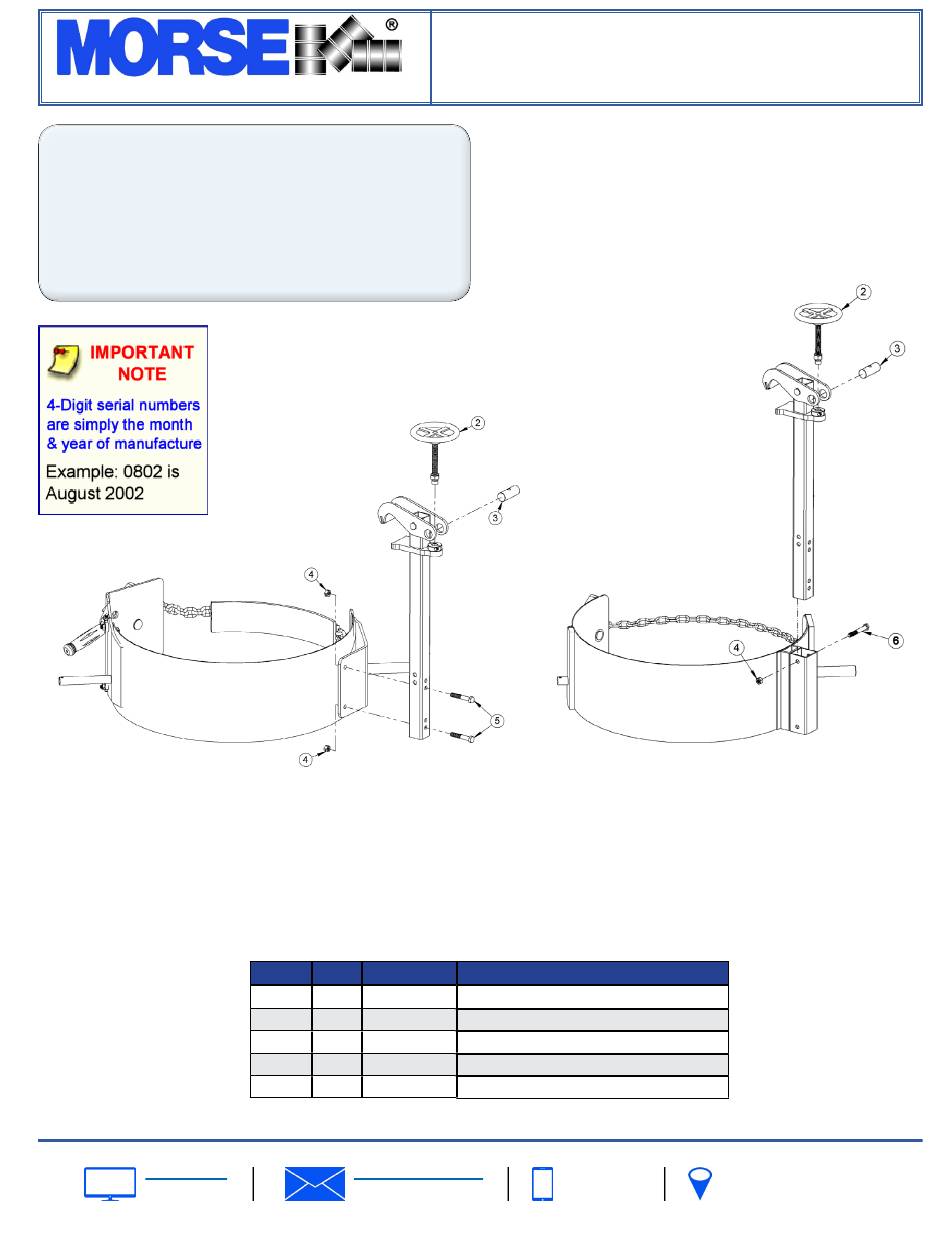

Parts List and Diagram. . . . . . . . . . . . . . . . . . .

Installation Instructions. . . . . . . . . . . . . . . . . . . .

Operating Instructions. . . . . . . . . . . . . . . . . . . .
INSTALLATION INSTRUCTIONS
for MORCINCH Drum Holder
TM
1. Position Rim Clamp Assembly (item 1) on drum holder bracket
with holes aligned.
2. Bolt in place using 2 bolts (item 5) and 2 nuts (item 4).
morsedrum.com
Copyright 2021 - Morse Mfg. Co., Inc.
Page
ITEM QTY PART #
2 1 3616-P
3 1 3510-P
4 2 1169-P
5 2 82-P
6 1 1315-P
service@morsedrum.com
Form PL4560M-P (0616-____)
Kit # 4560M-P
Kit, Rim Clamp Assembly, Spark Resistant
Operator's Manual
for Morse Rim Clamp Assembly Kit
with Spark Resistant Parts
1
Kit # 4560M-P
1
Serial number 0616 to ____ (MMYY)
2

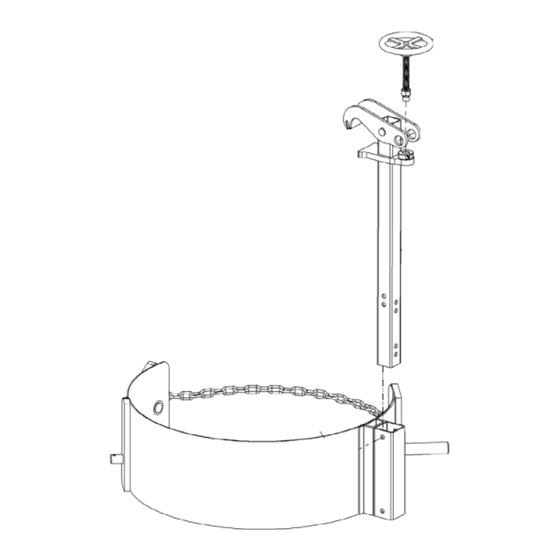

INSTALLATION INSTRUCTIONS
for Drum Holder with Socket Tube
1. Slide Rim Clamp Assembly (item 1) down through socket
tube, and line up top holes in Rim Clamp Assembly with top
holes of socket tube.
2. Use bolt (item 6) and nut (item 4) to bolt in place through the
top holes of the socket tube and the Rim Clamp Assembly.
DESCRIPTION
HANDWHEEL ASM, 4", 3540-P 185R
THREADED BARREL, RIM CLAMP
NUT, 3/8-16 REV HEX LOCK
HHCS, 3/8-16 X 2-1/4 GR2
HHCS, 3/8-16 X 2-3/4 GR2
(315) 437-8475 103 Kuhn Rd.
Syracuse, NY, 13208 U.S.A.
(Updated 17 Mar, 2021)
