morse MORCINCH 4556SS-P Operator's Manual

The Specialist In Drum Handling Equipment
Operator's Manual for Morse Stainless Steel MORCINCH
Part # 4556SS-P
Serial Number 0209 to ____ (MMYY)

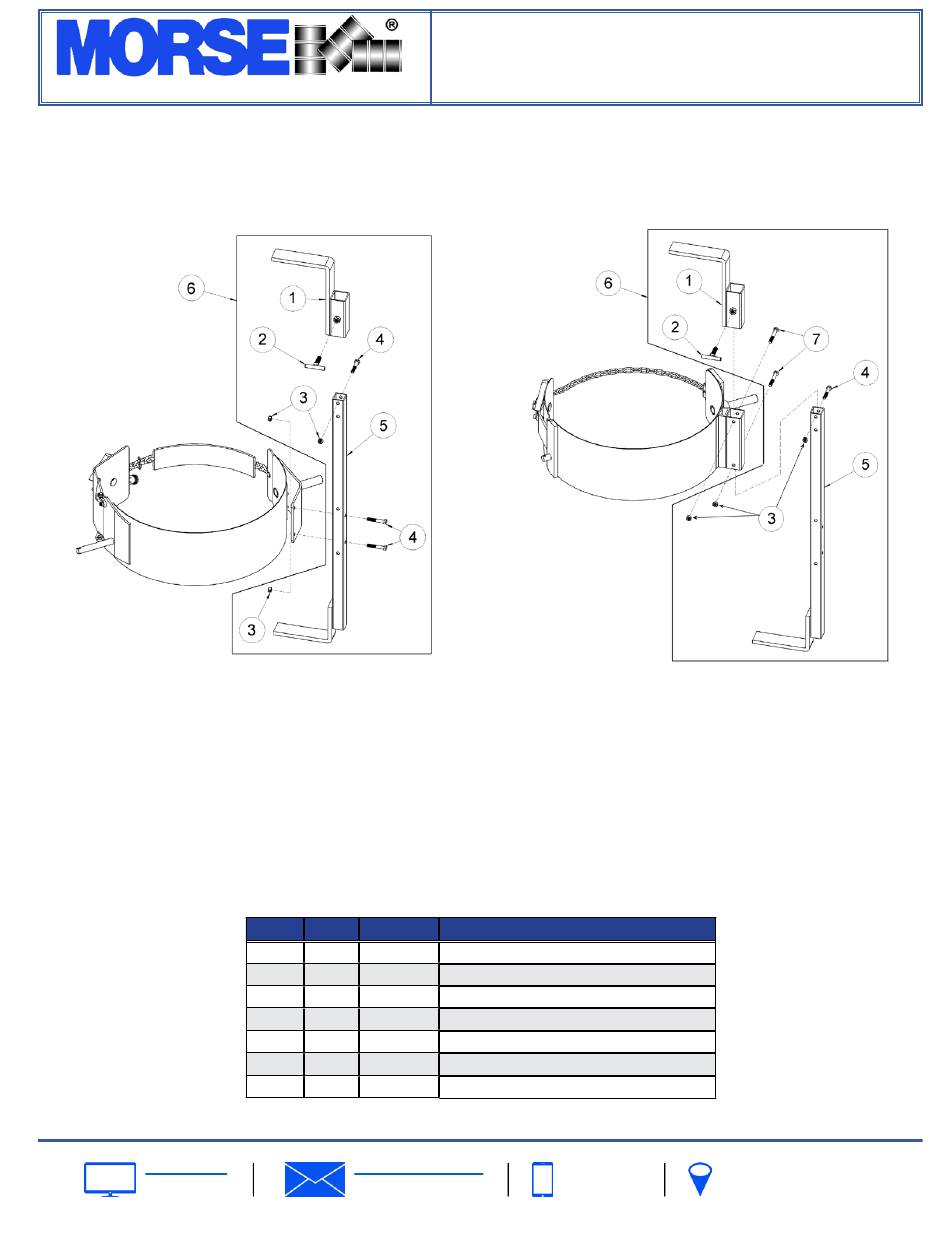

INSTALLATION INSTRUCTIONS
for MORCINCH Drum Holder
TM
1. Bolt bottom bracket (item 5) to drum holder, using 2 bolts
(item 4) and 2 nuts (item 3), bolt in place through the 2
lowest holes on bottom bracket.
2. Slide hold down (item 1) down over top of bottom bracket
and tighten in place with tee handle (item 2).
3. Fasten stop bolt (item 4) and nut (item 3) into top hole of
bottom bracket.
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc.
ITEM QTY. PART #
1 1 1371SS-P
2 1 1372SS-P
3 3 3981SS-P
4 3 82SS-P
5 1 5108SS-P
6 1 4556SS-P
7 2 1315SS-P
service@morsedrum.com
Form PL4556SS (0209-____) (Updated 11 Jun, 2019 9:16 AM)
Kit # 4556SS-P
Kit, Bracket Assembly, MORCINCH
Bracket Assembly Kit
TM
INSTALLATION INSTRUCTIONS
for Drum Holder with Socket Tube
1. Slide bottom bracket (item 5) up through socket tube and,
using 2 bolts (item 7) and 2 nuts (item 3), bolt in place
through the 2 lowest holes on bottom bracket.
2. Slide hold down (item 1) down over top of bottom bracket
and tighten in place with tee handle (item 2).
3. Fasten stop bolt (item 4) and nut (item 3) into top hole of
bottom bracket. Use bottom hole for 195 Series starting
with serial number 0207.
DESCRIPTION
HOLD DOWN, BRACKET ASM, SS
TEE HANDLE, BRACKET ASM, SS
NUT, 3/8-16 NYLON LOCK, SS
HHCS, 3/8-16 X 2-1/4, S
WELD, BRACKET, 35" SS
KIT, BRACKET ASM, MORCINCH SS
HHCS, 3/8-16 X 2-3/4 GR2 SS
