Page 1

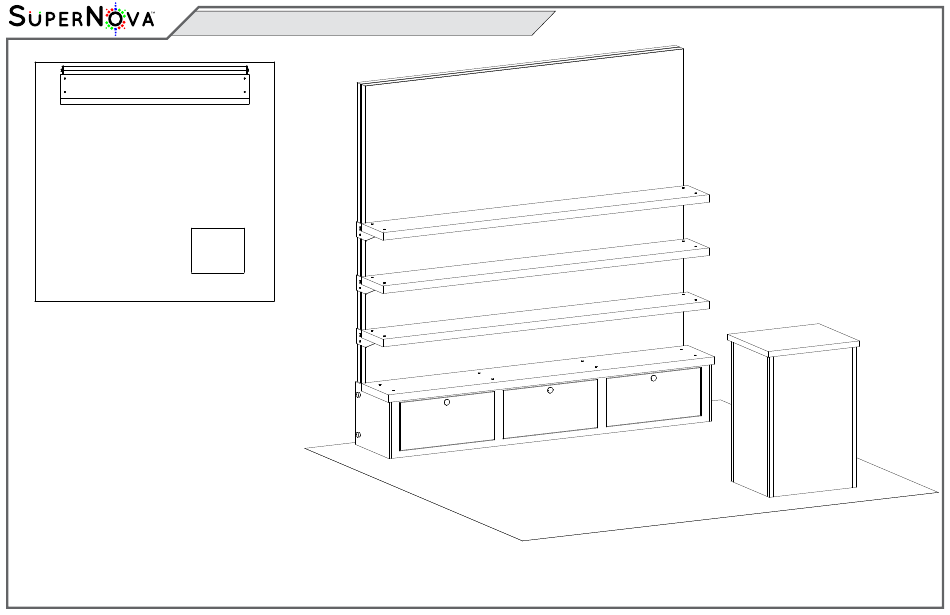

© 2025 Order #XXXXX VK-1963 - 10’ x 10’ Inline Lightbox 10’ Plan View 10’ SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
Page 2: Plan View
© 2025 Order #XXXXX Plan View = 1 sq foot...
Page 3: General Setup Instructions
© 2025 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.
Page 4
© 2025 Order #XXXXX EuroLT Assembly Level 1 = Blue Panel Lock Level 2 = When Required Level 3 = Green Level 4 = Black Panel Lock With Right Hand Thumb When Required Using Your Setup Instructions Close to Seam Color Coded Clip Squeeze, Left Hand...
Page 5
© 2025 Order #XXXXX CEI110 Frame Assembly Disassembly Slide both connectors across seam of extrusions. Tighten all knobs. Straight Connection 1) Loosen all knobs. Straight Connector When assembling frame, first attach all straight 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
Page 6
© 2025 Order #XXXXX SEG Installation The Perfect Fit SEG Graphic Installation in 3 Steps STEP 1: Attach Corners STEP 2: Attach Middle STEP 3: Attach Sides Always insert graphic into each alternate corner, then into the sides of the frame. Otherwise the graphic will not fit into the frame correctly.
Page 7
© 2025 Order #XXXXX Crate Packing CRATE PACKING Crate 1 of 1...
Page 8: Completed Assembly
© 2025 Order #XXXXX Backwall Assembly Item Qty. Description 95” CEI110 Vertical Extrusion 95” CEI110 Vertical Extrusion 92” CEI110 Horizontal Extrusion 92” CEI110 Horizontal Extrusion 91.353" Z33 Vertical Support Extrusion 91.252" TSP46 Horizontal Extrusion Steps: Power 1) Start flat on floor: Assemble extrusions [1,2, 3, and 4] together. Break See CEI110 Frame Assembly sheet for instruction.
Page 9: Assembled View
© 2025 Order #XXXXX Graphic Attachment Steps: 1) Install SEG Graphics and Blocker to assembled backwall as shown. See SEG Graphic Installation sheet for instructions. Assembled View Step 2 of 4...
Page 10: Cabinet Assembly
© 2025 Order #XXXXX Cabinet / Shelf Attachment Item Qty. Description Left Side Shelf Bracket Completed Assembly Right Side Shelf Bracket Steps: 1) Attach shelf brackets [7L and 7R] to underside of shelves. Shelf Bracket Attachment detail below. 2) Connect assembled shelves to backwall. details.
Page 11: Back View
© 2025 Order #XXXXX LT Counter Assembly Item Description Steps: 23”w x 38”h Panel w/ Door 1) Connect panels together in numerical order. See LT Panel 38”h 90° Connector Assembly instruction on reverse side. 23”w x 38”h Panel 2) Connect shelf supports to Velcro on interior of assembled 38”h 90°...
