Summary of Contents for SUPERNOVA MOD-1603

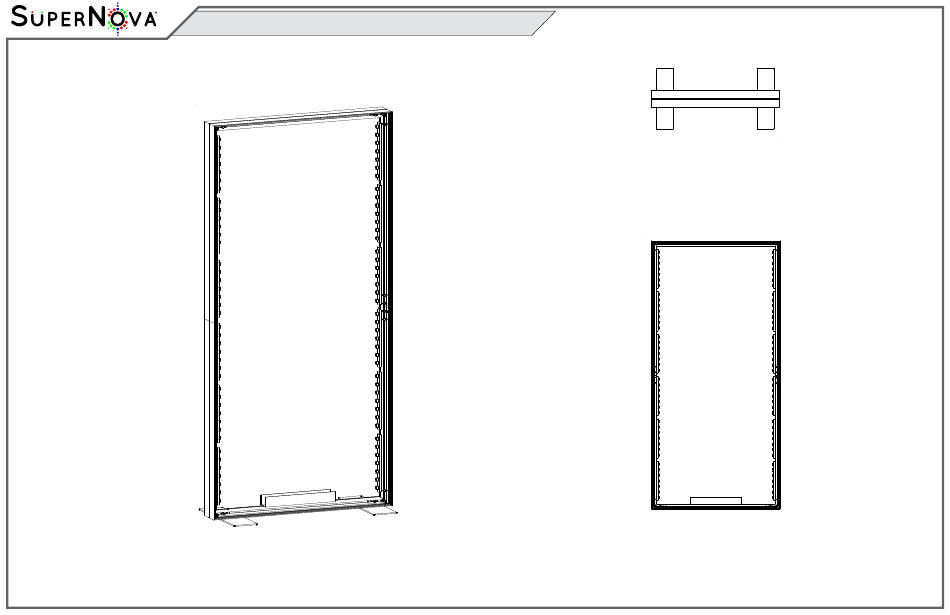

- Page 1 © 2024 Order #XXXXX MOD-1603 Lightbox Plan View Elevation View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
-
Page 2: General Setup Instructions
© 2024 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly. - Page 3 © 2024 Order #XXXXX CEI152 Frame Assembly Slide both connectors across seam of extrusions. Disassembly Tighten all knobs. Straight Connection 1) Loosen all knobs. Straight Connector When assembling frame, first attach all straight 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
- Page 4 © 2024 Order #XXXXX SEG Installation Graphic Removal Corner A Corner B Corner D Corner C Step 1 Step 2 Step 3 It is important to first insert To remove the graphic from Insert corner A. Turn edge of Repeat Step 1 for opposite Once all corners are inserted, graphic into each alternate the frame, locate the fabric...
- Page 5 © 2024 Order #XXXXX Case Packing Top View of Each Level Graphics Baseplates Setup Hardware Level 1 Level 2 Level 3 Level 4 (Bottom level) Case 1 of 1...
- Page 6 © 2024 Order #XXXXX Lightbox Assembly Item Qty. Description Steps: 6” x 22” Rectangular Base Plate 1) Install Base Plates [1,1] to bottom of horizontal [4] using bolts. 2/2A 43”h CEI152 Vertical Extrusion w/(1) Miter 2) Attach U-Channel to horizontal [4]. See U-Channel Attachment detail.
- Page 7 © 2024 Order #XXXXX Lightbox Attachments Steps: 1) Connect power cords to Supernova lights as shown. 2) Apply SEG graphic & blocker to assembled frame. Power Power SEG Graphic Installation Break Break Corner A Corner B When assembled Corner D...
