ROOMS TO GO RETG 1420-50H Assembly Instructions

Manufactured by RETG for Rooms To Go
*** Caution : Please read all instructions carefully before starting the assembly process. These parts are
cumbersome and heavy. Therefore, two people are recommended in order to prevent personal injury and
insure the parts are not damaged during the assemble.

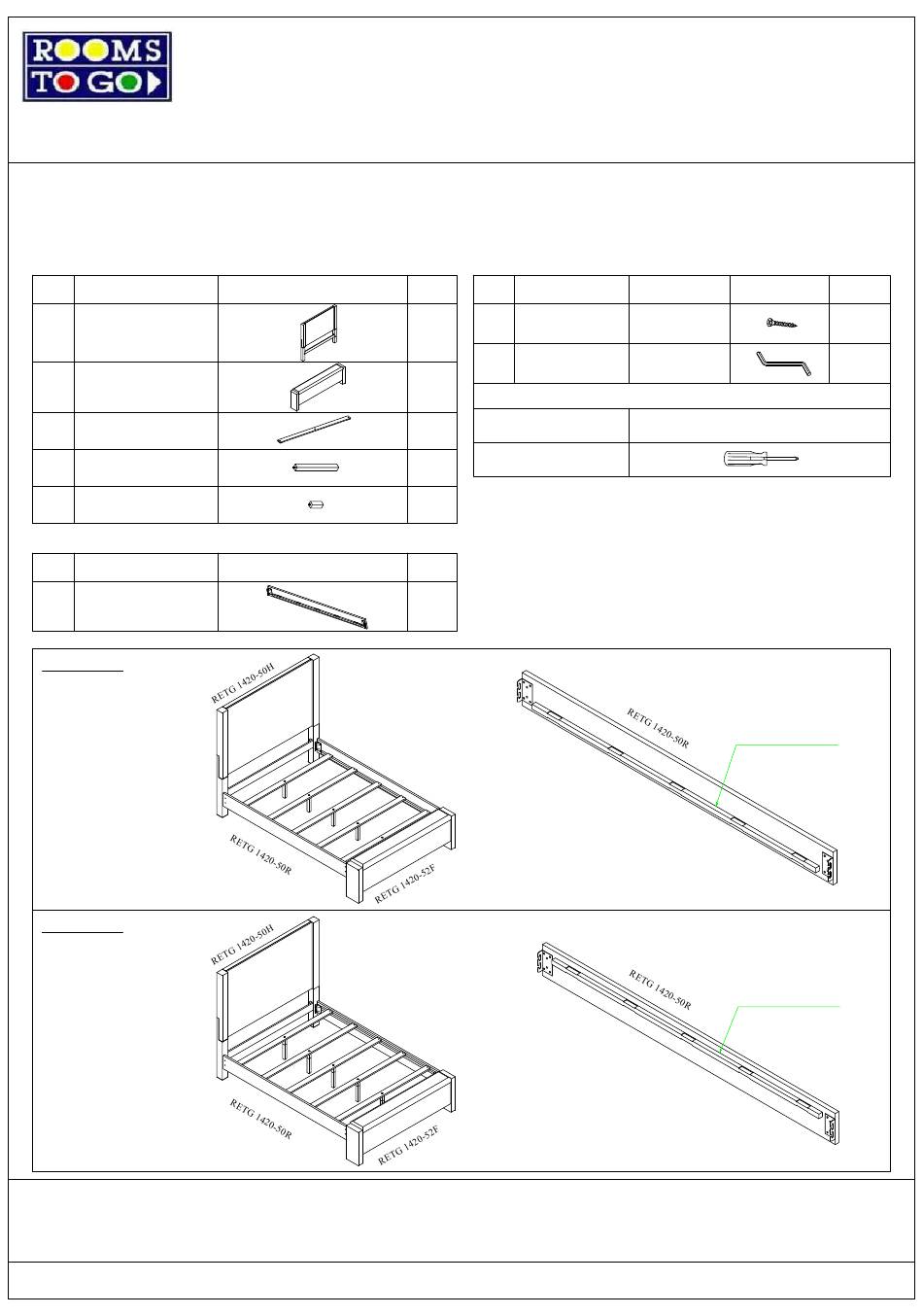

PARTS LIST
No. Description
1
Panel Headboard
2
Footboard Bench
3
Slats
4
Long Slat Support
5
Short Slat Support
PARTS LIST
No. Description
6
Side Rail
OPTION - 1
OPTION - 2
Hardware Pack Location (s):
RETG 1420-52F QN FOOTBOARD BENCH - SKU# 33714204
Assembly Instructions
RETG 1420-50H QN PANEL HEADBOARD - SKU# 32314205
RETG 1420-52F QN FOOTBOARD BENCH - SKU# 33714204
RETG 1420-50R QN/KG SIDE RAIL - SKU# 32914207
Sketch Q'ty
1 Pc
1 Pc
5 Pcs
5 Pcs
5 Pcs
Sketch Q'ty
2 Pcs
HARDWARE LIST
Description
No.
A Screw
B Allen Key Z
TOOLS REQUIRED (NOT PROVIDED)
Description
Phillips screwdriver
Version#1 - 16/04/2024
Zize Sketch
M4 x 1''
M4
Sketch
Slat bearer in
lower position
Slat bearer in
upper position
Q'ty
10 Pcs
1 Pc
Page 1 of 3
