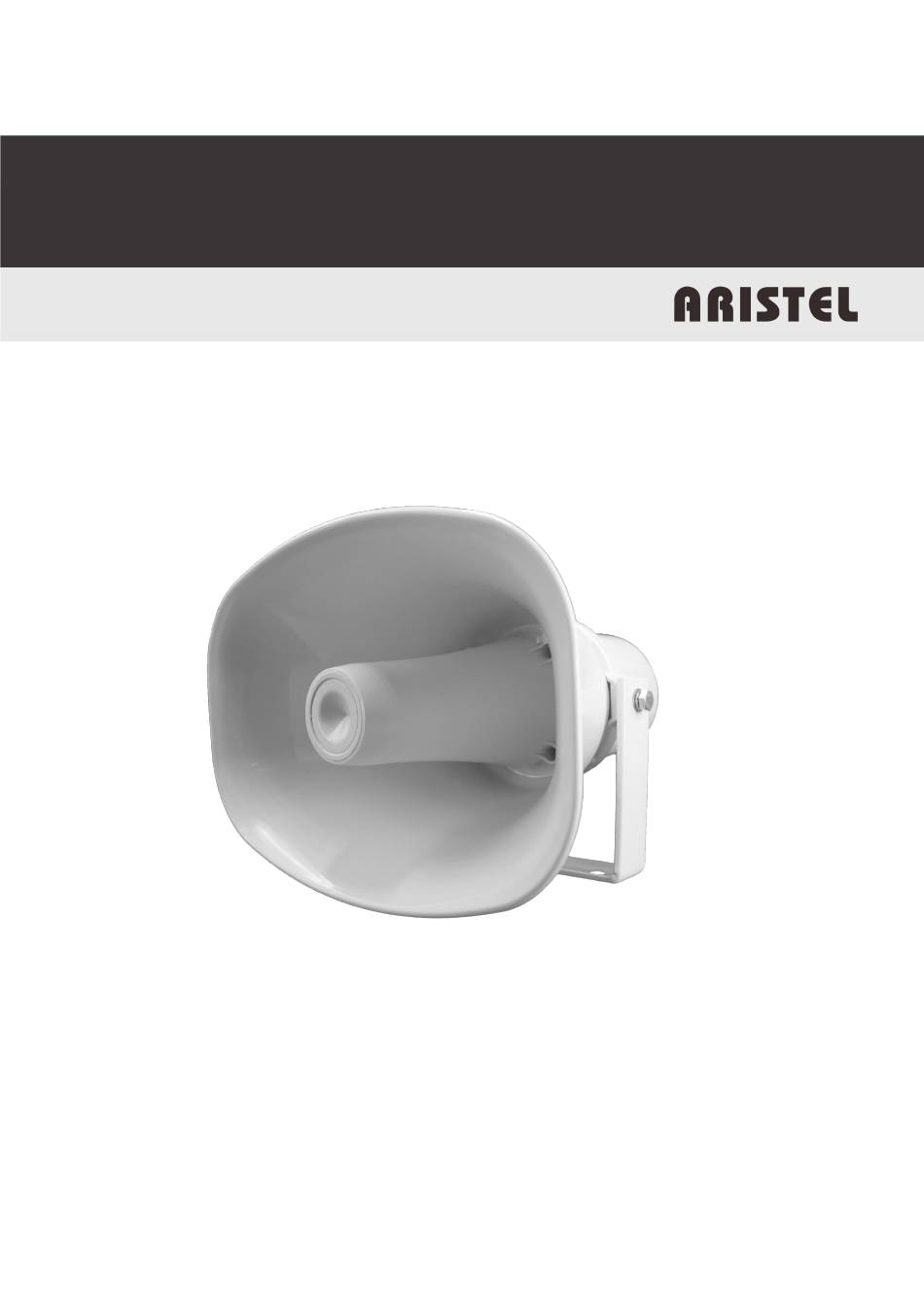

- Page 1 AN170E Outdoor SIP Horn Speaker User Manual Edition 2.1...
- Page 2 This page is left blank for the user 's notes. Edition 2.1...
-
Page 3: Table Of Contents
Contents Introduction Product Over view Product Features Product Information Connection and Installation System Connection Diagram C onnection Diagram Terminal Function Table T erminal WEB Function Settings Specifications Packing List Edition 2.1... -
Page 4: Introduction
Inroduction Thank you for purchasing our product. Products have been rigorously tested before leaving the factor y. This product is often used in schools, football fields, schools, parking lots, railway stations, airports, race tracks, shopping malls and other places which have a need for public address. In order to facilitate your installation, commissioning and use of this product, please read this manual carefully before installation. -
Page 5: Product Information
Product Information Side View Unit: mm Front View Edition 2.1... - Page 6 Rear View Mounting Bracket View Φ Edition 2.1...
-
Page 7: Connection And Installation
Connection and Installation Connection Diagram Network line Network port (POE) (Network audio) DC 24V/2A Power interface Standby power input Installation Instruction The bracket can be rotated at various angles. First tighten the nut to fix the bracket, and then secure the screws into the mounting holes and fix them on the wall. Edition 2.1... -
Page 8: System Connection Diagram
System Connection Diagram 2U or 7U Network Time Calibrator GPS+Beidou Wireless Control Broadcast Intercom Network Ser ver Broadcast Intercom Network Fire Collector Paging Station Wireless Router Network Audio Collector Network Broadcast Indoor Digital Amplifier Intercom Terminal (Multiple) Network Decoding Player (Multiple) Constant Voltage Amplifier Outdoor... -
Page 9: Connection Diagram
Connection Diagram Broadcast Intercom Network Ser ver Switch (Supports POE) Standby Power Input To ensure the normal operation of the entire system, a router must be mounted in the network where the device is connected. Terminal Function Table Item Function and Symbol Name Network Network port input... -
Page 10: Terminal Web Function Settings
Terminal WEB Function Settings Make sure that the device and your computer are on the same LAN network. After connecting the computer and the terminal, enter the default IP address ( 192.168.5.3 ) or as displayed on the terminal equipment label, into the IE browser as shown in example below, and then enter the user name: admin, password: admin for login. - Page 11 2) Network Settings The network connection mode of the device. Please select an appropriate network mode according to the actual network environment. The device provides two network connection modes: Static IP mode (Static): You can select this option. After selecting, fill in the static IP address, subnet mask , gateway, DNS domain name, primar y DNS, and backup DNS.
- Page 12 4) System Tool Can modify the login username and password, restore factor y settings, restart the device, and upgrade the software on the WEB end of the device. Edition 2.1...
-
Page 13: Specifications
5) Troubleshooting Trouble shooting can be performed on the WEB end through the Ping function and remote debugging. Specifications Frequency Response (dB SPL, 1W, 1m) Distortion (THD< 5% 1W, 1m, 100Hz-10kHz) 5.00 4.00 3.00 2.00 1.00 0.01 Edition 2.1... -
Page 14: Packing List
Voltage Network Interface RJ45（10/100M） 24V/2A Power Interface Package Dimension 630x510x335mm(4 pcs) Others Machine Dimension 285x205x288mm 10.8kg(4 pcs) Gross Weight Net Weight 1.9kg Packing List Component Quantity Network Horn Speaker User Manual Certificate Warranty Card www.aristel.com.au E. & O.E. Edition 2.1... - Page 15 Edition 2.1...
