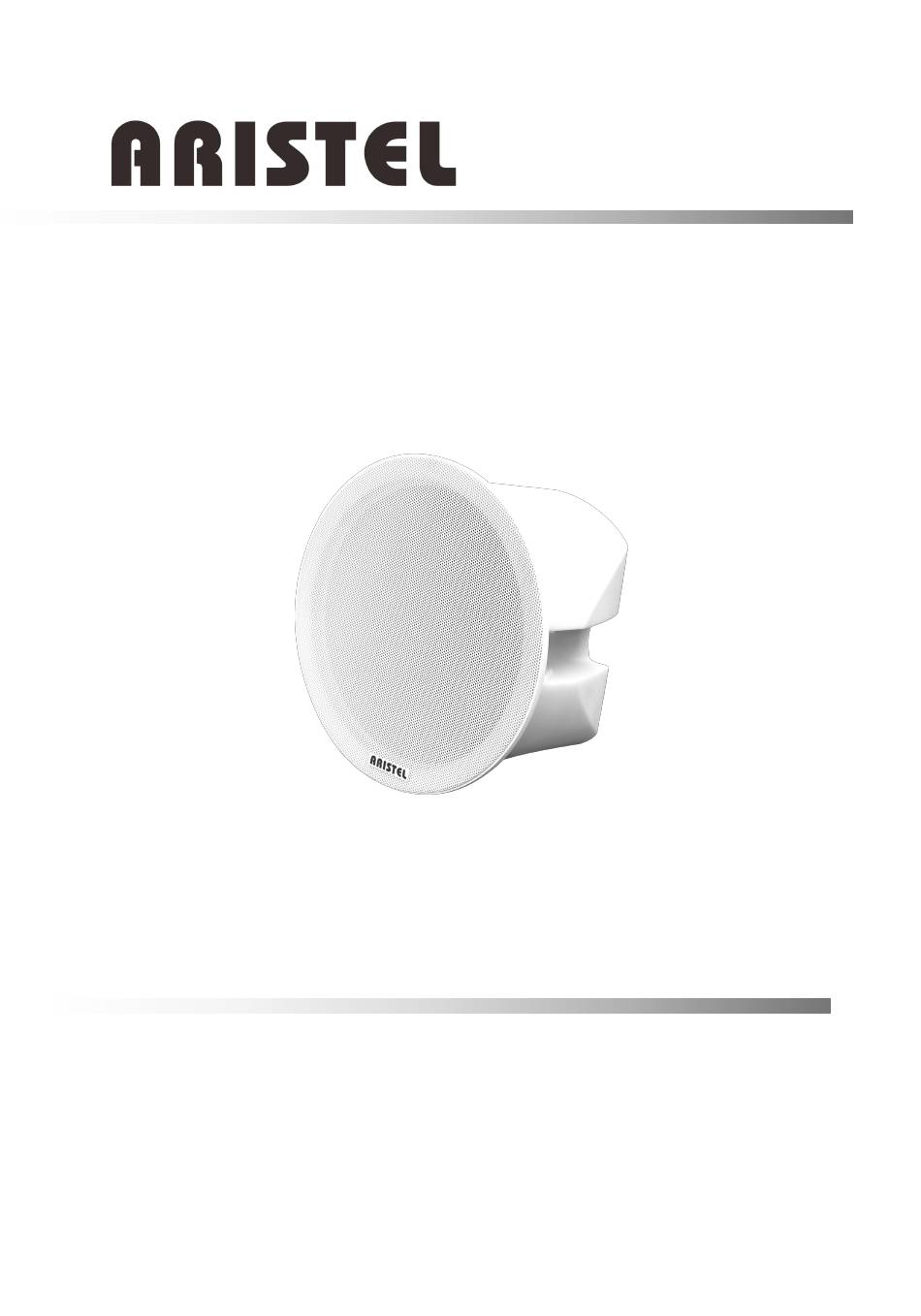

- Page 1 Public Address System IP Network Ceiling Speaker AN6311 User Manual Thank you for using our public address system. Please read this User Manual carefully to make better use of this equipment. Edition v2.1 Aristel...
- Page 2 This page is left blank for users’ notes. Edition v2.1 Aristel...
- Page 3 About the User Manual This User Manual is available and effective upon completion of development of the AN6311 Ceiling Speaker. The User Manual includes system description, matters needing attentions in use, instructions on system connection, instructions on use of product and technical specifications of the terminal. Please read this User Manual carefully before connection, installation and use and operate in accordance with corresponding instructions in the Manual.
-
Page 4: Table Of Contents
2.1 Side Panel................................2 III. Connection Diagram ............................3 3.1 AN6311Application Diagram in the System......................3 3.2 AN6311 Interface Connection Diagram....................... 4 IV. Terminal WEB Function Settings........................5 V. IP Address Setting of the Terminal on the Host..................... 8 VI. Installation................................9 Specification................................ -
Page 5: Product Description
I. Product Description 1.1 About AN6311 Ceiling Speaker The AN6311 ceiling speaker is a network full-digital & analog-digital conversion signal processor based on the SIP transmission protocol. It can be mounted in any place accessible to a network. The remote audio data steam can output as an audio signal through the equipment with intelligent host control. -
Page 6: Appearance Description
Reserved for later . Speaker output Built-in 2×9W digital amplifier (Note: Please be careful when using the two simultaneous outputs due to the power limitation of the PoE switch), which can only drive its own speaker with constant resistance (8Ω). Edition v2.1 Aristel... -
Page 7: Connection Diagram
The above figure is for illustrative purposes only. Please refer to the system connection diagram for ② specific connection. The AN6311 in the system must be powered by 48V IEEE802.3at standard switch port, and set the ③ corresponding address before connecting with the host. -
Page 8: An6311 Interface Connection Diagram
IP Network Ceiling Speaker 3.2 AN6311 Interface Connection Diagram Interface connection diagram 48V, AT mode PoE switch Mircos SD SPEAKER DC/+15V PoE INPUT OUTPUT AN6311 speaker Dedicated ceiling speakers Edition v2.1 Aristel... -
Page 9: Terminal Web Function Settings
Static IP mode (Static): You can select this option. After selecting, fill in the static IP address, subnet mask, gateway, DNS domain name, primary DNS, and backup DNS. DHCP mode: In this mode, network-related information will be automatically obtained from the DHCP server, Edition v2.1 Aristel... - Page 10 SIP automatic answering switch: When it is turned on, the device will answer automatically when there is a SIP phone connected. Alternatively, you can disable auto answer to use the device as a PBX loud ringer. Device volume control: You can set the device volume level. Edition v2.1 Aristel...
- Page 11 WEB end of the device. 5) Troubleshooting Trouble shooting can be performed on the WEB end through the Ping function and remote debugging. Edition v2.1 Aristel...
-
Page 12: Ip Address Setting Of The Terminal On The Host
Enter the host software “Settings” -> “System Maintenance” -> “Device Maintenance”. Find the IP address of the indoor ceiling speaker, select and click “Modify IP”. As shown in the Pic. 3 below, modify the parameters and click OK to display Success. (Pic. 3) Edition v2.1 Aristel... -
Page 13: Installation
3. Insert the spring clip on both sides of the speaker into the mounting hole, then release, and push the speaker into the ceiling (see below). To avoid spring pinch, it is recommended to wear gloves when doing this. 4. Finally, check that it is secure and reliable. Edition v2.1 Aristel... - Page 14 In case of any failure in the warranty period, please contact service personnel (or distributor) of our company for service. The company shall not be liable for damages due to unauthorized dis-assembly or maintenance or service by unauthorized personnel. Edition v2.1 Aristel...
-
Page 15: Specification
IP Network Ceiling Speaker Specification Item Parameter Model AN6311 Bass 0～14 (±2) (60Hz) Tone Adjustment Treble +7，-8 (±2) (10KHz) ≤1% Effective Output Power ≧9W Input Sensitivity -10±1dB Frequency Response 40-18KHz (±3dB) SNR (A) ≧70dB Power 2×9W Power Supply IEEE 802.3 at PoE Package Size 255×255×185mm... - Page 16 This is connected to power source via the plug and any failure or danger occurs, the user can disconnect the device from power source by pulling out the plug out from the socket, therefore, it is required that the power socket should be located somewhere with easy access. www.aristel.com.au E. & O. E Edition v2.1 Aristel...
