Aristel AN-SP11 Quick Start Manual

Specification for AN-SP11
Audio
OPUS 48K, MP3 44.1 kHz,
G.722 ADPCM 16 kHz,
Codec
G.711 PCMU 8 kHz, G.711
PCMA 8kHz
Speaker
Max SPL 101dB
Frequency
80Hz ~ 20KHz
Response
Network
Password protection, IP
address filtering, Digest
Security
authentication, User
access log
SIP, ONVIF, HTTP, IPv4,
Network DHCP, RTSP, RTP, RTCP,
Protocol TCP, UDP, ARP, FTP, TFTP,
NFS, NTP
Network
10/100 Base-TX, RJ45
Interface
2 SIP Accounts
VoIP
SIP Direct IP Call
RTP Multicast
Amplifier
Amplifier
Built-in 15W Amplifier
Description
General
Material ABS (IP55 waterproof)
Rate Power 15W
Power
PoE or DC 12V
Supply
Installation Wall Mounted
Dimensions 296 x 196 x 157 mm
Weight 3 KG
Languages English
Warranty 1 year
IP Speaker Wall Mounted
Package
Speaker
Includes
User Manual
Specification for AN-171mc
Audio
OPUS 48 kHz, MP3 44.1 kHz,
Codec G.722 ADPCM 16 kHz, G.711
PCMU 8 kHz, G.711 PCMA 8 kHz
Speaker
Max SPL 113dB
Frequency
300Hz ~ 8KHz
Response
Network
Password protection, IP address
Security filtering, Digest authentication,
User access log
SIP, ONVIF, HTTP, IPv4, DHCP,
Network
RTSP, RTP, RTCP, TCP, UDP, ARP,
Protocol
FTP, TFTP, NFS, NTP
Network
10/100 Base-TX, RJ45
Interface
Support SIP protocol for
integration with VoIP
systems, integrated with
SIP/PBX.
Support ONVIF protocol for
interaction with security
VoIP systems, integrated with ONVIF
VMS/NVR.
Support SIP features:
secondary/backend SIP server,
IPv4 (IPv6).
Support codecs: OPUS, G711U,
G711A, GSM, MP3, WAV.
Amplifier
Amplifier
Built-in 15W Amplifier
Description
General
Material ABS (IP67 waterproof)
Rate Power 15W
Power
PoE or DC 12V
Supply
Installation Wall Mounted
Dimensions 225*165*240mm
Weight 1.4 KG
Languages English
Warranty 1 year
Package IP Horn Speaker
Includes User Manual
IP Speakers Quick Start Guide

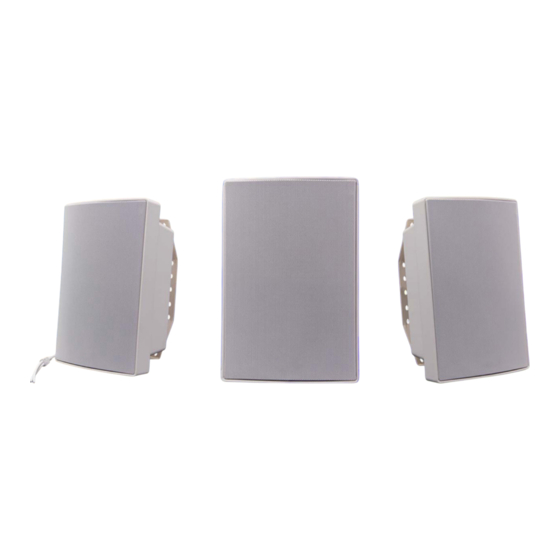

AN-SP11
AN-171mc
AN-171mc
