Summary of Contents for Ananda D18 PC5B

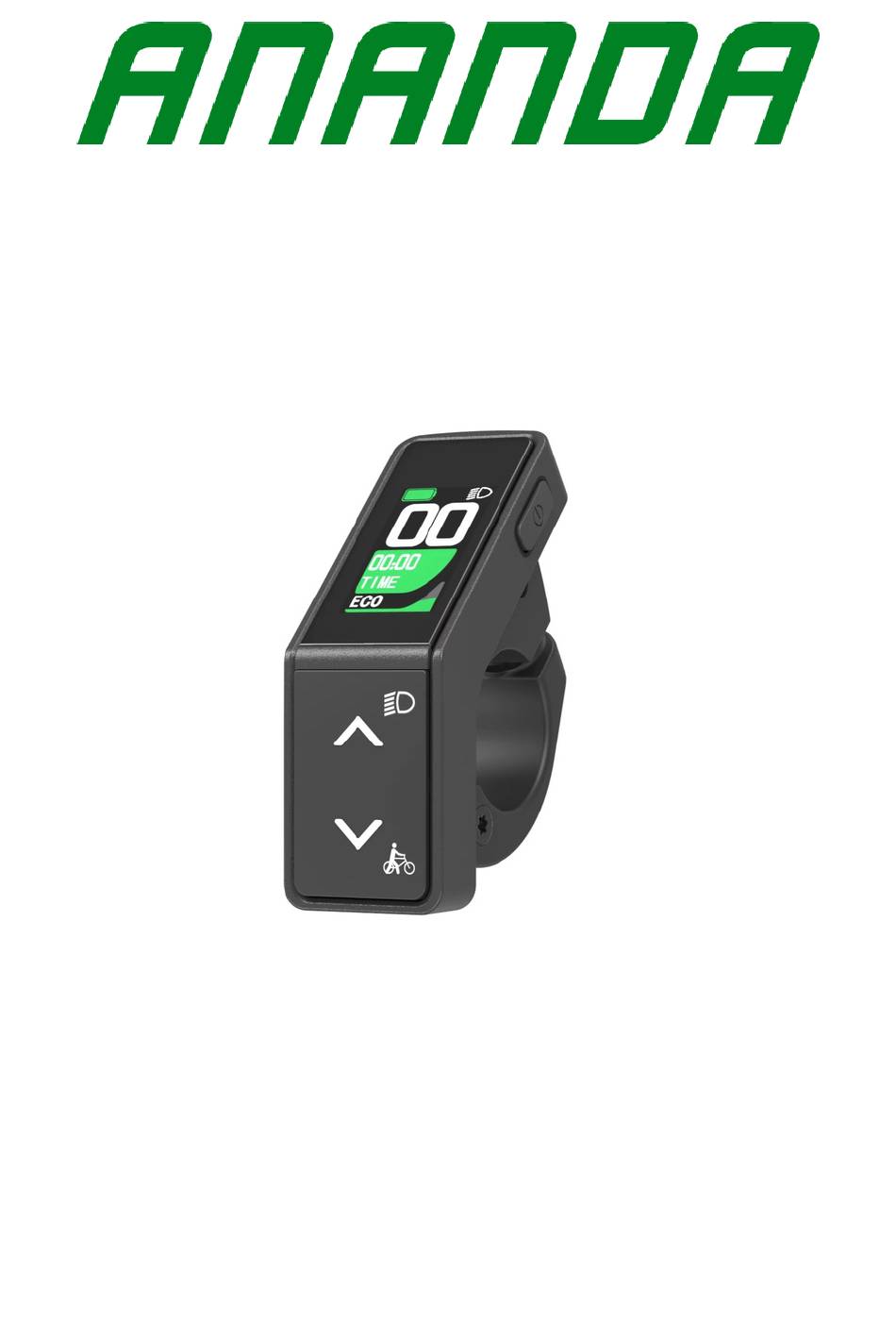

  • Page 1 Display Manual...

  • Page 2: Product Introduction

    The company reserves the right to modify the specification. Product Introduction Product Name and Model TFT Meter. Model: D18 PC5B/PU5B 2 Product Introduction Simple structure and exquisite appearance Super-contrast 1.14" TFT screen...

  • Page 3: Appearance & Size

    4 Appearance & Size...

  • Page 4: Product Description

    5 Coding Rules for Meter D18 PC5B As illustrated: D18 Product model; One-key power-on; CANBUS communication; UART communication; Host type; Bluetooth; 6 Product Description Parameters Power Supply: DC 36V Rated operating current: 30mA@36V Communication: UART/CANBUS Screen specification: 1.14” TFT LCD Operating temperature: -20°C ~ 60°C...

  • Page 5: Installation

    8 Metric/Imperial Speed display: Live speed (SPEED), Max. speed (MAX), Average Speed (AVG) 5-level control: OFF/ECO/TOUR/SPORT/TURB0/BOOST Power indicator: battery capacity indication and low-voltage indication Headlight indication: Headlight ON/OFF indication (to be supported by the controller) 5. Mileage display: Subtotal mileage (TRIP), Total mileage (ODO) 6.

  • Page 6: Display Interface

    10 Display Interface 10.1 Basic Interface Assist levels: 5 levels as indicated below in an ascending order: OFF/ECO/TOUR/SPORT/TURB0/BOOST. In addition, OFF indicates the no- assist mode. Real-time speed: display the current riding speed and unit; Subtotal mileage: displays subtotal mileage and the unit. Max. 999.9; Power indicator: indicates the number of battery capacity cells.
  • Page 7 10.2.2 Press the i button briefly once to show total mileage (ODO): 10.2.3 Press the i button briefly once to show average riding speed (AVG): 10.2.4 Press the i button briefly once to show max. riding speed (MAX):...
  • Page 8 10.2.5 Press the i button briefly once to show motor power (M PWR): 10.2.6 Press the i button briefly once to show priority Treadle power (H PWR): 10.2.7 Press the i button briefly once to show power consumption in amp hours / kilometre (CONS):...

  • Page 9: User Settings

    10.2.8 Press the i button briefly once to show live power consumption of the motor in watt hours / kilometre (C.INST): 11 User Settings NB: To meet international standards, some settings are unable to be adjusted by the end user. User settings and items of display: Unit settings, wheel diameter info, speed limit info, product info, and restore factory settings.
  • Page 10 11.1 Setting Screen 11.1.1 Press and hold the i button for 7 s to access the Settings screen: 11.1.2 Screen of resetting riding distance (ResetTrip): a prompt will be given that current screen is for resetting riding distance 11.1.3 Settings screen (Settings): a prompt will be given that current screen is for setting...
  • Page 11 11.1.4 Product info (Information): display of product information; 11.1.5 BACK: Return to the home page 11.1.6 Press the i button briefly to show the interface and return to the home page 11.2.1 Resetting Riding Distamce 11.2.1 Screen of resetting riding distance (ResetTrip): a prompt will be given that current screen is for resetting riding distance.
  • Page 12 Then select BACK to return to the previous screen. Select NO and press the i button briefly, the data will not be cleared. The data mentioned above will not be cleared upon normal startup or shutdown. 11.3.1 Function Settings 11.3.1 Function settings screen Select the bar: [Settings], and press the i button briefly to show the interface;...
  • Page 13 11.4.1 Unit Settings 11.4.1 Unit settings (Speed Unit): Press the i button briefly to set the units for speed and mileage; On the screen of unit settings, press Ʌ or Ⅴ button to toggle the display between metric system (km) and British system (mile) units.
  • Page 14 11.4.2 Unit settings (Conso Unit): Press the i button briefly to set the unit for power consumption; 11.5.1 Language Settings 11.5.1 Language settings (Language): press the i button briefly and specify the language: English/French 11.6.1 Factory Settings 11.6.1 Restore factory settings ((FactReset): Press the i button briefly, and select Yes to confirm the restoration of factory settings.
  • Page 15 11.7.1 Bluetooth Settings If equipped: depending on original specifications, not all bikes may be Bluetooth ready, contact your retailer if you have any queries. 11.7.1 Bluetooth settings (BLE): Press the i button briefly to display: (Status) Bluetooth status/(Name) Bluetooth name/(Back) Back 11.7.2 Check Bluetooth name (Name): Press the i button briefly and check the name of Bluetooth...
  • Page 16 11.8.1 Auto Shutoff 11.8.1 Auto shutdown (AutoOff): Press the i button briefly, and you can specify the time to shut down the display automatically (you'll have to turn off and then turn on again the device to make it work); 11.9.1 Available Functions 11.9.1 Available functions (AvailableFun): press the i button briefly to perform settings:...
  • Page 17 Total mileage of riding (Odometer) Single ride mileage (Trip display) Trip Time Avg Speed Max speed Riding consumption (Trip Cons) Instant consumption (Inst. Cons) Motor Power Riding power (Rider. Power) Remaining mileage (RANGE) Error code BACK: Return to the previous screen 11.
  • Page 18 11.10.3 Interface of info function settings Select the bar: [Information], and press the i button briefly to show the interface; 11.11.1 Motor Information 11.11.1 FW ver: firmware version HW ver: hardware version Serial number: serial number WheelSize: wheel diameter and size; Odometer: Total mileage;...
  • Page 19 11.12.1 Meter Information (Display Information) 11.12.1 In the screen of Display Info, press the i button briefly to access the Settings screen. FW ver: software version HW ver: hardware version Serial number: serial number BACK: Return to the previous screen The display is as follows: Press the i button briefly to access the Settings screen.

  • Page 20: Button Definitions

    12 Button Definitions Sleep/Wakeup: Function key: i, Adjustment: Ʌ or V 12.1.1 Functional Operation 12.1.2 Sleep/Wakeup When the display is properly connected to the controller, press and hold the button (2 s) in the sleep state to wake up the display and enter the basic interface for further operation;...
  • Page 21 12.3.1 Toggle Displays 12.3.1 On the basic screen, press the i button briefly to toggle among subtotal mileage, trip time, average speed, max. speed, and total mileage in loop: Subtotal mileage (TRIP) -> Trip Time -> Total mileage (ODO) -> Average riding speed (AVG) ->...
  • Page 22 The assist model is shown below: 12.5.1 Headlight ON/OFF 12.5.1 Press and hold the button for 2 s, and the headlight will be ON (required support from the controller), and the headlight icon on the screen light up. If you press and hold the button for 2 s again, the headlight will be turned off, and the headlight icon will disappear.
  • Page 23 12.6.1 Battery level is displayed in two different cases. It will preferentially obtain battery level information from BMS and show the battery level in the form of pixel bar. If it fails to obtain information from BMS, battery level information will be obtained from the controller and displayed in the form of energy grid, which can be divided into 1~5.
  • Page 24 If the display is unable to communicate with or is disconnected from the battery, the SOC display will be as follows: 12.7.1 One- key Power-on 12.7.1 When starting up the system, the user can enable the battery directly by pressing the Power button on the display, in which case the display will be automatically turned on.
  • Page 25 Schedule: List of UART Fault Code Definitions Abnormal busbar current Handle fault Brake fault Abnormal motor hall signal Abnormal phase current Undervoltage fault: Nonconformity to European standard Meter communication failure Power button failure WALK failure Microprocessor failure, voltage reference failure If the 5-core wire connecting the display and controller is faulty: The display cannot be turned on and the LCD screen will fail.
  • Page 26 Fault Code Fault Description Troubleshooting Restart the system. If the fault persists, Phase line overcurrent of apply to an authorized dealer for controller warranty. Restart the system or replace the Busbar overcurrent of controller. If the fault persists, apply to controller an authorized dealer for warranty.
  • Page 27 12.9.1 Wiring Definition 12.9.1...
  • Page 28 13 Q&A Q: Why is the display not turned on? A: Check whether the harness of the display is in reliable contact with the connector of the controller. Q: What should I do if the display shows a fault code? A: First, find the corresponding problem according to the displayed error code.
  • Page 29 VII. Version information Please note that the display software version on your bicycle may differ from the specifications outlined in this manual, depending on how the original product was ordered or configured by the manufacturer. Additionally, not all functions may be available or adjustable in every region. For more information on the original specifications of your bicycle, please contact your bike's retailer.
