Brand: Huawei
Type:
Solar On Grid String Inverter
Models: SUN2000-25KTL,30KTL,33KTL, 36KTL, 40KTL,55KTL, 60KTL, 100KTL, 110KTL, 125KTL
CONNECTION DIAGRAM
Locate communication terminals (RS485) as per your Inverter Model Picture. There are two connection terminals on the
configuration circuit board: RS485IN and RS485OUT (used for Daisy Chain connections
Connection steps
•
Please unscrew the RS485 terminal as shown in A part of Figure
H1.
•
Please make the connections from the Terminal Block to TrackSo
IoT Gateway as mentioned in Table – HT1.
•
Provide 12V external supply to TrackSo IoT Gateway via 12V, 2A DC
adaptor provided in the package
TRACKSO INSTALLATION GUIDE FOR HUAWEI

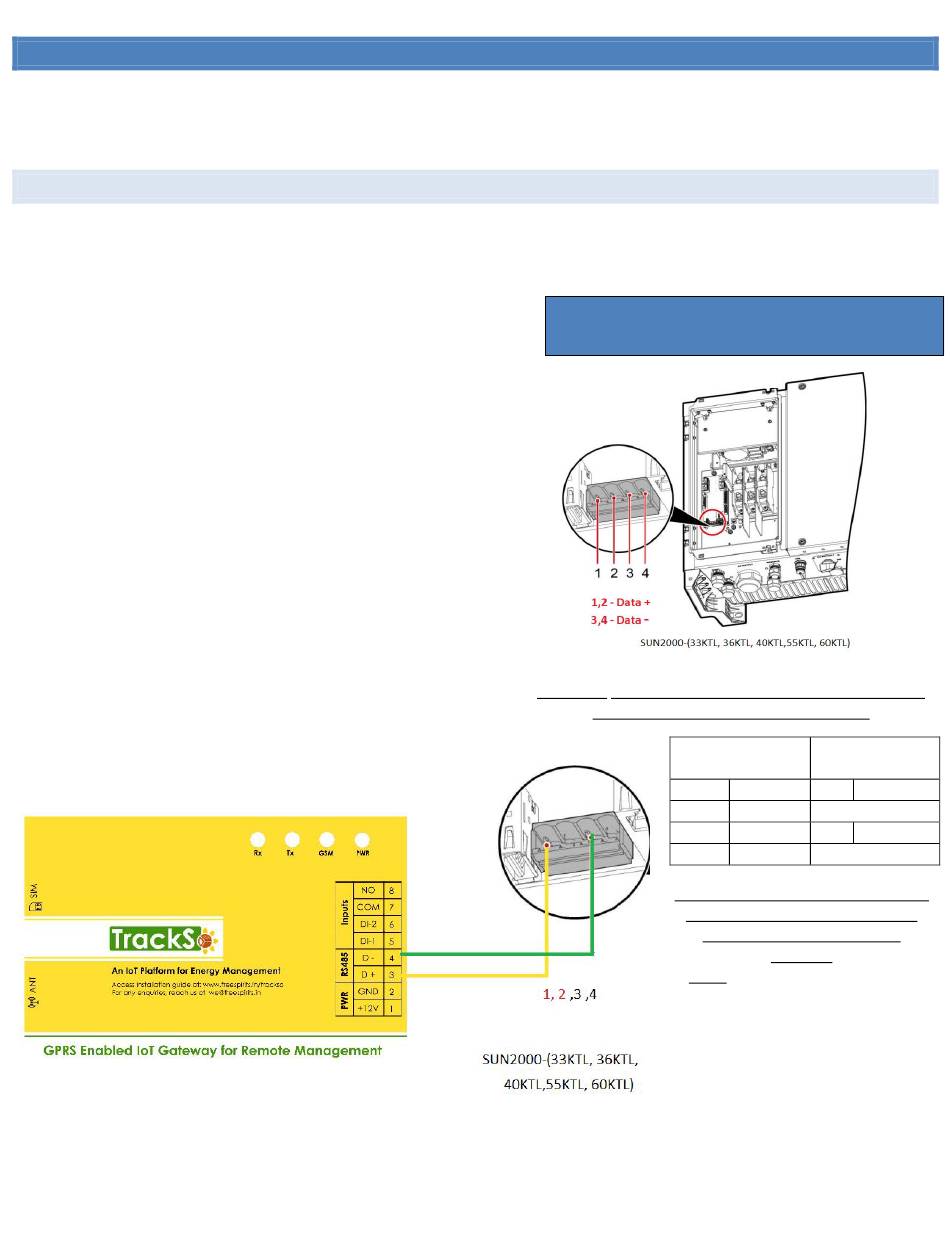

Following Connection Diagram is valid for
HUAWEI SUN2000-33KTL, 36KTL, 40KTL,55KTL, 60KTL
Figure H1: Huawei SUN2000-33KTL, 36KTL, 40KTL,55KTL,
60KTL String Inverter communicatio port
Huawei Pin no.
& Assignment
1
2
3
4
Table HT1 – Huawei SUN2000-33KTL,
36KTL, 40KTL,55KTL, 60KTL RS485
connections with TrackSo IoT
Note: RS485 Out- Used in case of
Multiple Inverter Connection (Daisy
TrackSo Pin No.&
Assignment
RS485A
3
Data+
RS485A
RS485 Out
RS485B
4
Data-
RS485B
RS485 Out
Gateway
chain).
