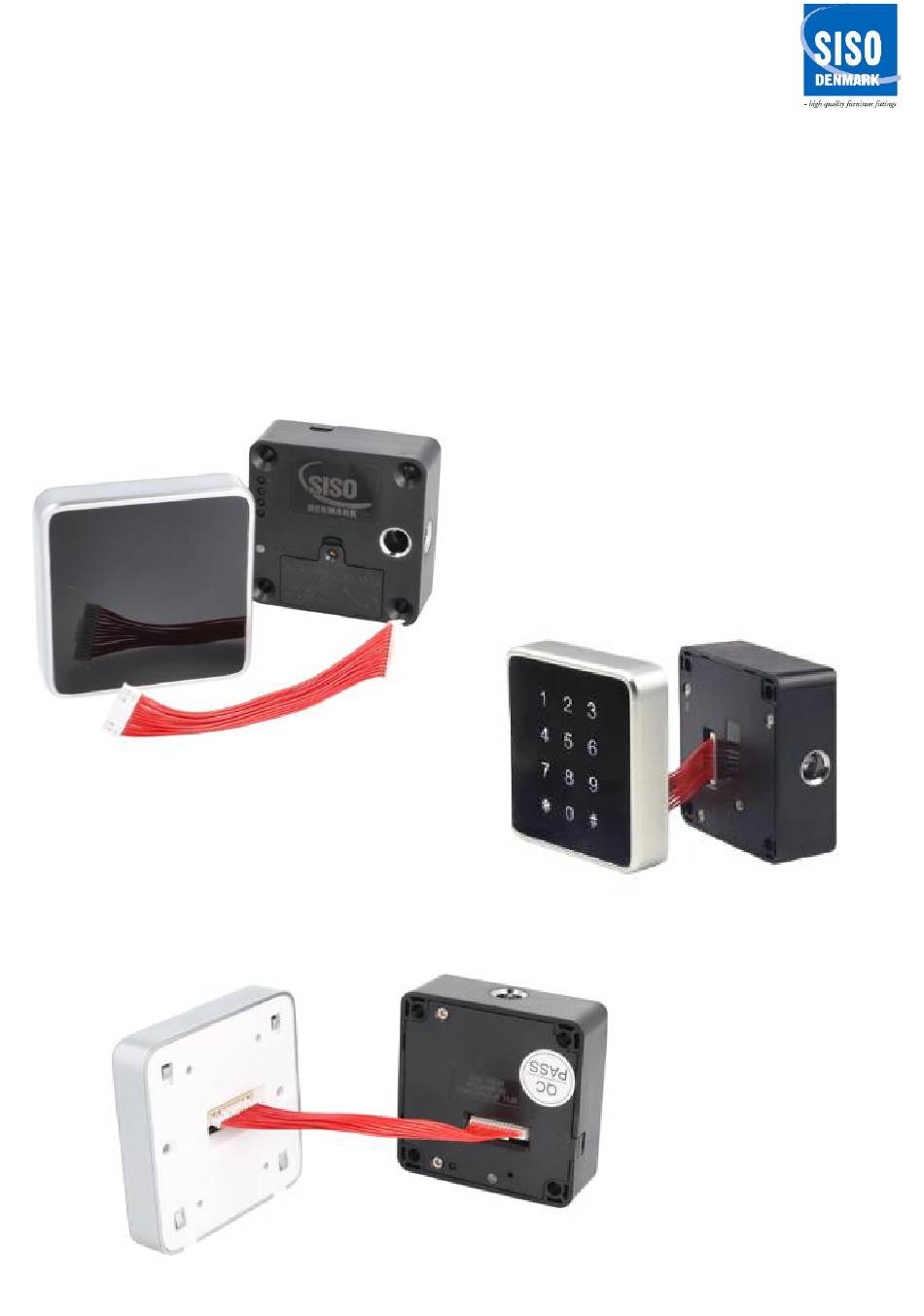

- Page 1 User manual for SISO invisible Mifare1 lock “Mini” With card reader & code panel...
-
Page 2: Table Of Contents
Contents 1. Product Installation Dimensions...................2 2. Product Functions........................5 2.1 Parameters...........................5 2.2 Functions & Features......................5 3. Operations..........................7 3.1 Public Mode........................7 3.1.1 Mode introduction......................7 3.1.2 Set manager code......................7 3.1.3 Set manager card......................8 3.1.4 Set lock into public mode....................8 3.1.5 Set user code/card......................8 3.1.6 How to use user code.......................8 3.1.7 How to use user card......................8 3.1.8 Set delete card........................8... -
Page 3: Product Installation Dimensions
1. Product Installation Dimension Lock body Item 14.60.275-1 Invis. Mifare1 Lock "Mini" W/Card Reader & Code Panel, ABS, - 2 -... -
Page 4: Front Panel
Front Panel - 3 -... - Page 5 Striker Item 14.60.276-0 Striker, PTO, F/Mifare1 Lock "Mini",F/Sliding & Cabinet Doors, - 4 -...
-
Page 6: Product Functions
2. Product Functions 2.1 Parameters ABS for lock body shell, Acrylic & PC for panel Material Load current < 200mA Locked-rotor current < 350mA Power consumption Standby current < 20mA Statistic current < 50uA @3V 123A rechargeable lithium battery Voltage: 2.1V~3.3V Working voltage Low voltage alarm: 2.5V±0.1V Ultimate low voltage: 2.1V, can operate the last unlock... - Page 7 Lock status alarm: 1. Lock will keep warning for 10s if it keeps unlocking status more than 30s. 2. ※ Lock status alarming function only exists in private mode. Press button 1+2 can enable/disable this function. Locking protection: Input wrong code/card, lock will shine in red twice and prompt with “di di”.Wrong for 5 times continuously, lock will be unavailable for 5mins.
-
Page 8: Operations
3.Operations 3.1Public Mode 3.1.1 Mode introduction Lock keeps unlocking under public mode, any code (with 4~8 digits) or card to lock and same code/card to unlock. Manager code/ manager card should be programmed first (manager code /card can use for emergency unlock). 3.1.2 Set manager code Input “new manager Input “*#1#”, lock... -
Page 9: Set Manager Card
3.1.3 Set manager card Pressing Set manager Lock will keep Swipe an empty Lock will prompt button “1” for card flashing in green card with “di” 2 seconds successfully Notice: 1. While the green light is flashing, the user can set manager card continuously. One lock can have max 10pcs manager cards. -
Page 10: Private Mode
Notice: 1. While the green light is flashing, users can set delete card continuously. One lock can have max 10 pcs delete cards. 2. Swipe the delete card, all user cards will be invalid, then need to set again. 3. If you want to delete one user card at one time, please let us know in advance. 3.2 Private Mode 3.2.1 Mode introduction Lock keeps locking under private mode, manager code/card and user code/card should be programmed first. -
Page 11: Set Manager Card
Notice: 1. While the green light is flashing, the user can set manager card continuously. One lock can have max 10pcs manager cards. 2. Manager cards cannot use for emergency unlock, just for setting user card. 3.2.4 Set lock into private mode Way one: Lock will prompt with “di Set into private mode... -
Page 12: Set Delete Card
3.2.9 Set delete card Pressing Lock will Lock will Set delete Swipe an button “2” keep flashing prompt with card empty card for 2 seconds in green “di” successfully Notice: 1. While the green light is flashing, users can set delete card continuously. One lock can have max 10pcs delete cards. -
Page 13: Set Manager Card
4.3.3 Set manager card Pressing Lock will keep Lock will Set manager Swipe an button “1” for flashing in prompt with card empty card 2 seconds green “di” successfully Notice: While the green light is flashing, user can set manager card continuously. One lock can have max 10pcs manager cards. -
Page 14: How To Use User Code
4.3.7 How to use user code Input user code + # Input user code + #, Lock will keep Push the door to again, lock tongue lock will be unlocked unlocking close cabinets streches out 4.3.8 How to use user card Input user card, input user card Lock will keep...
