GE JGP975SEKSS - 36" Gas Cooktop Dimensions And Installation Information

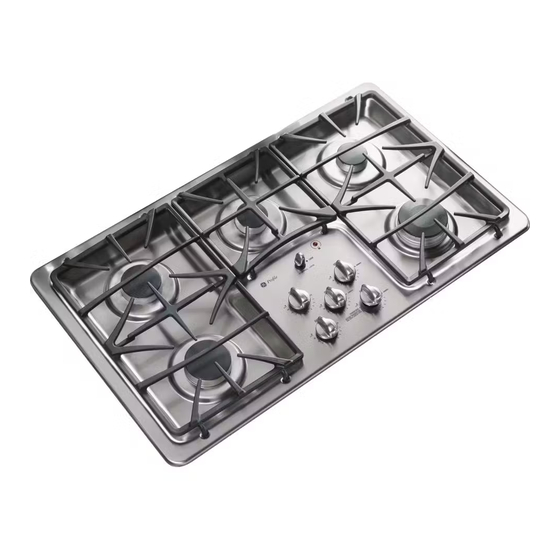

36" built-in gas cooktop
Hide thumbs


Advertisement

JGP975SEK
GE Profile
36" Built-In Gas Cooktop
Dimensions and Installation Information
AGA Requirement: All gas cooktop models require
7/16" free area below cooktop height to combustible
material. Requires 18" minimum from countertop to
adjacent overhead cabinets.
Note: If installing with a GE Profile
TM
System, consult both cooktop and downdraft installation
instructions packed with product before installing.
Cooktop gas/electric supply may need to be re-routed
to install downdraft.
Electrical Rating: 120V, 60Hz, 5A
Installation With Single Wall Oven Information:
30" Gas Cooktops are approved for use over select GE 27"
and 30" Wall Ovens and Warming Drawers. 30" and 36"
Gas cooktops are approved for use over 30" Wall Ovens
and Warming Drawers. Refer to cooktop and wall oven/
warming drawer installation instructions packed with
product for current dimensional data.
Installation Information: Before installing, consult
installation instructions, packed with product, for current
dimensional data.
For answers to your Monogram,
GE Profile
®
GE
appliance questions, visit our website at
®
ge.com or call GE Answer Center
®
800.626.2000.
Telescopic Downdraft
or
service,
21
36
Cooktop
19-1/8
33-7/8
2-1/2
(Min.)
Gas Connection
Electrical
Pressure
cord
regulator
1/2" pipe
Electrical
outlet
Coupling
Shut-off
valve
13" MAX.
3-3/16*
depth
30" MIN. to
unprotected
cabinet
2-1/4" to
rear wall
3-3/4" MIN.
clearance to
side wall
from cut-out
Electrical junction
box 12" MIN.
below countertop
Dimension and installation information are shown in inches.
*Allow 5-3/4" depth at rear for electrical and gas connections
Specification Revised 10/05
6" MIN.
18" MIN.
clearance to
to cabinet
side wall
from cut-out
Cut should
not interfere
with cabinet
structure at
front
230276
