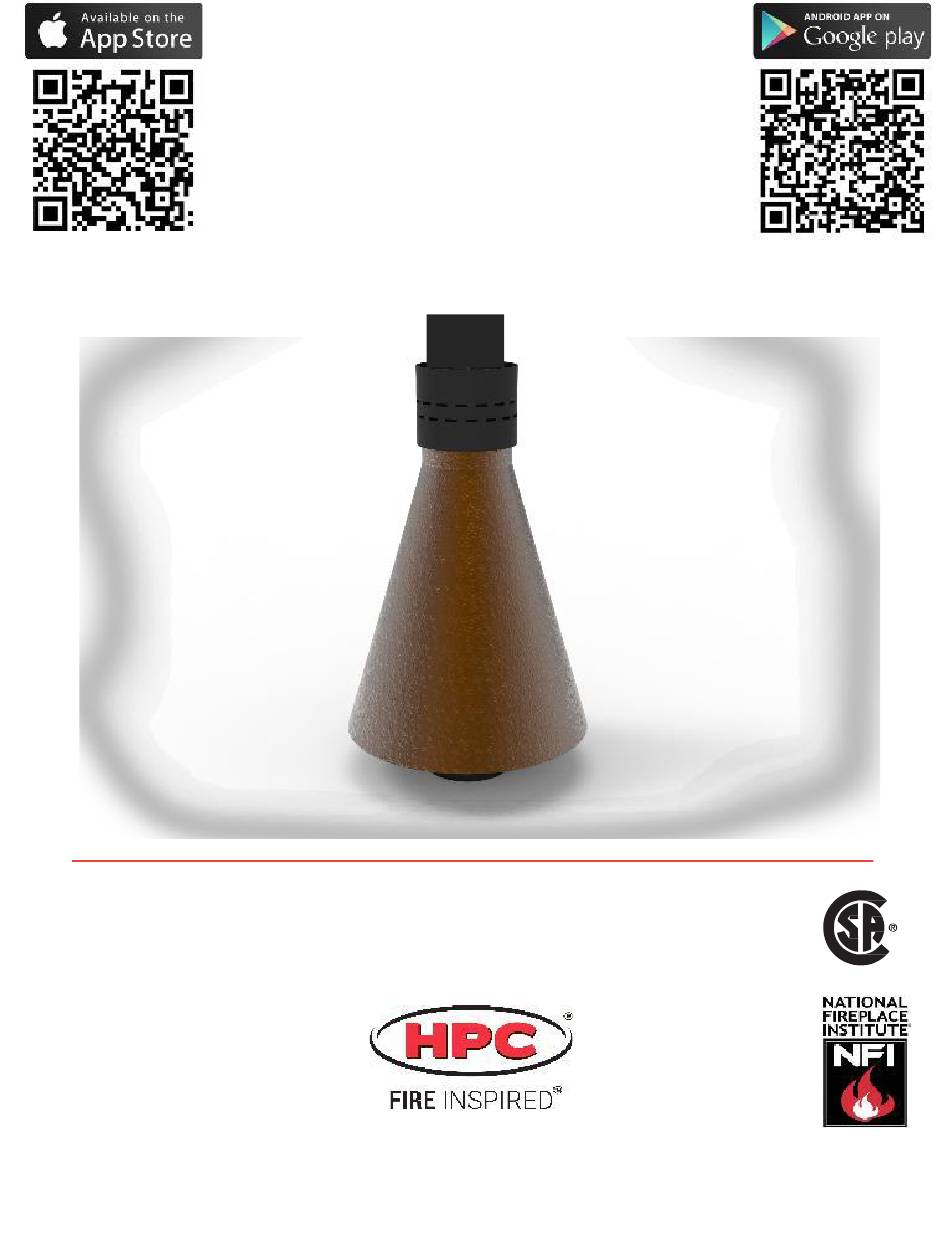

- Page 1 Electronic Ignition SmartARC Tiki Tiki SmartARC Installation & Operation Instructions Hearth Products Controls Fire-Inspired Since 1975. 955-TK SmartARC...
- Page 2 These are Warning and Danger Symbols When you see this symbol on the Tiki, or in this manual, look for one of the following signal word panels alerting you to the potential for personal injury, death, or major property damage. WARNING: For Outdoor Use Only.
-
Page 3: Table Of Contents
Table of Contents Important Safety Information ................ 3 Technical Support ................3 Symbol Legend................4 Important Safety Information for Installers ........5 Important Safety Information for End-Users ........6 Product Features and Parts List ..............7 Overhead Structures and Sidewall Clearance Requirements ....... 8 Installing the Tiki .................... -
Page 4: Important Safety Information
Important Safety Information • Hearth Products Controls Company recommends that our products are installed INSTALLER: by professionals locally licensed by the authority having jurisdiction in gas piping. Leave this manual with All installation instructions must be followed to ensure proper performance and the appliance. -
Page 5: Symbol Legend
Important Safety Information Symbol Legend These are Warning and Danger Symbols When you see this symbol on the Tiki, or in this manual, look for one of the following signal word panels alerting you to the potential for personal injury, death, or major property damage. -
Page 6: Important Safety Information For Installers
Important Safety Information Please reference page 2 for all warnings and section 1 safety information. Important Safety Information for Installers Leave this manual with the end-user and instruct them to retain it for future reference. Instructions and product updates are also available at www.hpcfire.com under the Support tab. Installers must carefully follow the instructions in this manual to prevent personal injury or property loss. -
Page 7: Important Safety Information For End-Users
HLG-185H-30 (single Tiki Torch) HLG-320H-30 (two Tiki Torches) HPC recommends that each 30 VDC Tiki is wired with its own dedicated line and not to be daisy chained in line to maintain proper function. Use toggle switch on the underside of the Tiki base to shut power off to the appliance. -
Page 8: Product Features And Parts List
Product Features and Parts List Product Features SmartARC Igniter Burner Orifice Solenoid Valve SmartARC Control Module Indicator Toggle Switch Kano Cover (on/off) Parts List • Kano Cover • Kano Top Kano Top • Burner • SmartARC Control Module • Valve Installation •... -
Page 9: Overhead Structures And Sidewall Clearance Requirements
WARNING: All Tiki systems are designed and intended for outdoor use only. It is recommended that material such as granite, marble or other dense stone be kept away from heat and especially flame due to risk of cracking. HPC is not responsible for damage resulting from failure to follow these recommendations. -
Page 10: Installing The Tiki
Tiki Installation Requirements WARNING: It is important to review the clearance requirements below for any type of overhead structure such as pergola, roof, overhang, screens, arbor, etc. or a sidewall to ensure that the distances are met. Figures 4.1 and 4.2. Post is “reference only”... - Page 11 Tiki Installation Requirements Location and design • The platform the Tiki mounts to must be above-grade and allow for drainage to prevent water damage to Tiki. • Refer to cut sheets on our website for important dimensional information for your Tiki. Visit www.hpcfire.com •...
- Page 12 • A certified quarter turn gas shut-off valve must be installed ahead of the Tiki to allow for service of the appliance and for emergency shut-off. HPC valve part 226-HC (3/4” FPT). Do not use trimmer valve on Tiki to serve as shut-off for servicing the appliance or in the event of an emergency.
-
Page 13: Operating The Tiki
Tiki must have a gas shutoff on the exterior of the appliance ahead of the Tiki to allow for emergency shut off and maintenance. The gas shutoff should not be used to adjust flame height. Recommended certified quarter turn valve HPC part 226- HC (3/4” FPT) •... - Page 14 Operating the Tiki 1. Turn “ON” gas to Tiki. 2. Remove Kano Top to allow viewing of SmartARC igniter. 3. Turn “ON” electrical power to Tiki via wall switch or breaker then, flip on toggle switch at Tiki base. 4. Internal system safety checks will be performed prior to the start of ignition sequence. 5.
- Page 15 Operating the Tiki WARNING: Before use, be sure to test all gas connections for leaks. Do not use a Tiki if there is any evidence of leaking gas. If leaking gas is suspected, turn off the main gas supply and repair it immediately.
- Page 16 Operating the Tiki Start-up DANGER Boost Mode : When the arc power supply is initially started If you smell gas: after power up and when the arc is started from an error 1) Shut off gas to appliance. condition, boost mode is applied for 0.2 seconds. This 2) Extinguish any open flame.
- Page 17 Operating the Tiki The arc will now be cycled on for 2 seconds then off for 4 seconds. During normal operation, the arc will be started in normal power mode to reduce wear of the igniter electrodes. Depending on the setting of the mode Note: After an error occurs, if the system restarts successfully and operates normally for 1 minute, the retry attempt counter will be reset to 0.
-
Page 18: Maintaining The Tiki
Maintaining the Tiki Service • We suggest that our products be serviced annually by a We suggest that our products professional certified in the US by the National Fireplace be serviced by a professional Institute (NFI) as NFI Gas Specialists. certified in the US by the •... -
Page 19: Troubleshooting
Troubleshooting Service Table 10.1 and 10.2, below indicate some potential causes and countermeasures to the symptoms We suggest that our products be indicated in bold type. Please contact your retailer serviced by a professional certified in or certified technician for service and repair. the US by the National Fireplace •... -
Page 20: Wiring Diagram
Wiring Diagram Electronic HLG-185H-30, HLG-320H-30 NOTE: Minimum 120W Output Required Tiki Ignition Control Module On board LED light Panel mount Tiki base LED light 3-amp fuse fuse 30VDC + 30VDC – Black wire to igniter – Valve Orange wire to igniter Valve... -
Page 21: Compatible Accessories
For a complete list of accessories, visit www.hpcfire.com Figure 12.1 – Tiki cover Replacement Parts Please contact your dealer for parts – if unsure please contact HPC or visit our website at www.hpcfire.com and we will be happy to help you. Replacement Components List... -
Page 22: Warranty
3) Stainless Steel Components: Commercial-1 year; Residential-5 years Warranty commences from the date of original sale / shipment from HPC FOB Dayton, Ohio. This warranty is for parts and in-house (HPC) labor. The defective product must be sent back to HPC with a Return Merchandise Authorization (RMA) issued by HPC for that specific product and any other additional information for the nature of the defect or warranty claim.
