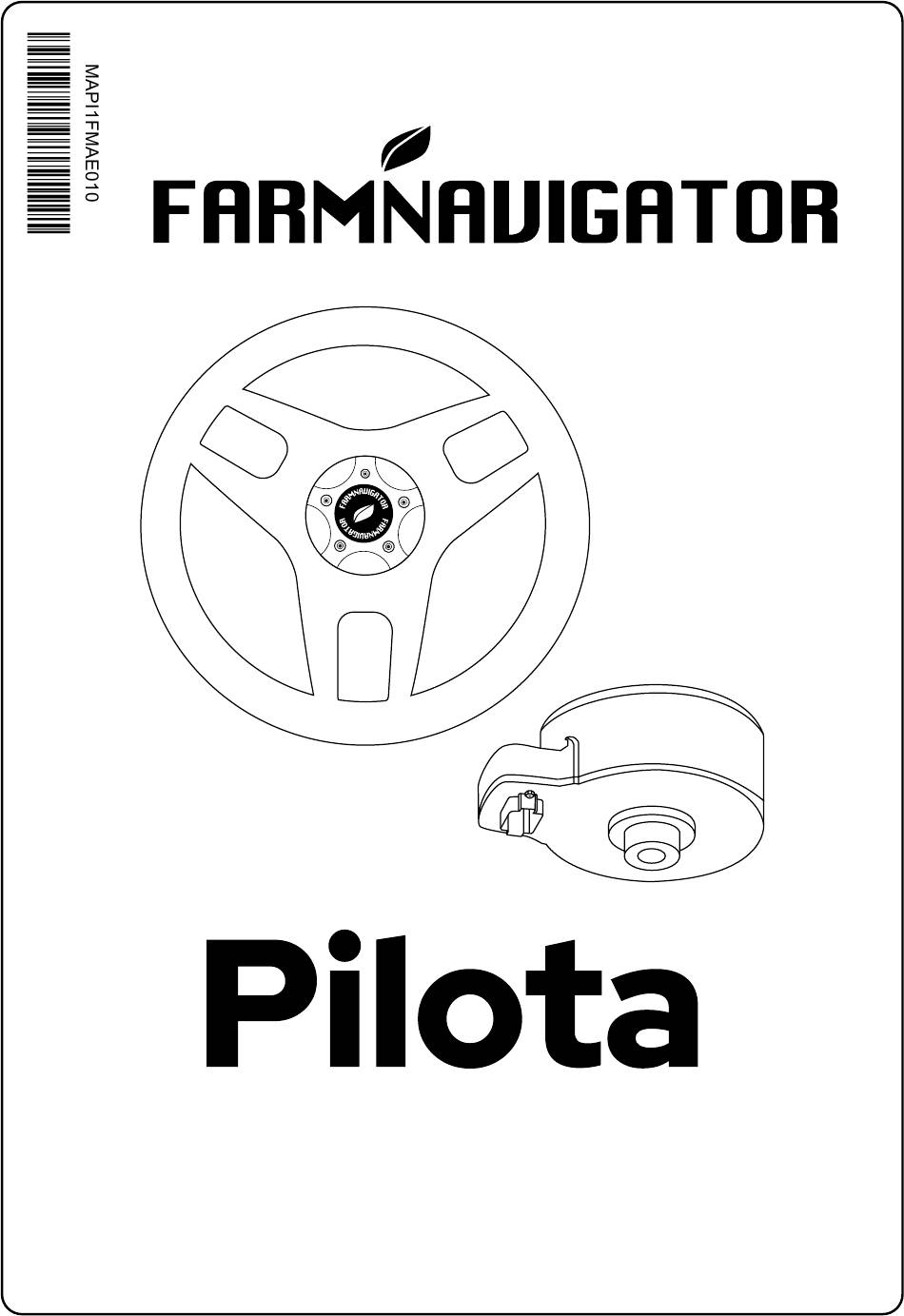

  • Page 1 INSTALLATION MANUAL Detailed Instructions...

  • Page 2: Product Description

    FARMNAVIGATOR Pilota is a high precision vehicle interface controller that provides additional functions and features to the FARMNAVIGATOR display (G7 / G12). In addition, FARMNAVIGATOR Pilota can receive driving information from the display and interface it with the vehicle to steer the vehicle and display the autosteer functionality on the display.
  • Page 3 Here are described the steps for the correct installation of the electric motor: 1. Proceed, with the appropriate tools, to remove the steering wheel from the vehicle; 2. When the steering wheel has been removed, check that the motor installation kit is correct. Insert the spline adapter into the steering column and check that there is correct mechanical coupling.
  • Page 4 5. Attach the fixing bracket under the motor and connect the anti-rotation pin; 6. Insert the electric motor fitted with the steering wheel, spline adapter and anti-rotation pin on the tractor’s steering column and check that the coupling is well made without play; WARNING: if too much mechanical play is noted, mechanical parts may be damaged over time and operator safety cannot be guaranteed.

  • Page 5: Antenna Installation

    2.2 Antenna installation For the antenna installation, please refer to the display-specific installation manual. These are the steps to follow: 1. Identify the attachment point for the antenna on the roof of the tractor. TIP: Try to position the antenna as close to the front steering axle as possible; 2.

  • Page 6: Electric Connection

    2. Bring the connector from the battery inside the tractor. Ensure that the cable is not attached to moving mechanical elements, rubber hydraulic hoses, air conditioning pipes, high-temperature elements or in close proximity to electric alternators; 3. Connect the connector “C2” to the Pilota main cable and make sure it is well connected.

  • Page 7: Battery Connection

    2. The ‘To ISOBUS’ connector remains available if ISOBUS equipment also needs to be connected to the steering system; 3. The ‘C3’ connector must be connected to the ‘Pilota main cable’; C. Pilota main cable 1. Connect the connector “C1” to the motor, make sure it is secure;...

  • Page 8: Vehicle Configuration

    3. Configuration 3.1 Vehicle configuration A vehicle must be configured in the Farmnavigator software for the guidance system to work properly. Vehicle configuration consists of entering the geometric measurements of the vehicle and the position of the antenna in relation to the centre of the vehicle and the rear axle of the vehicle.
