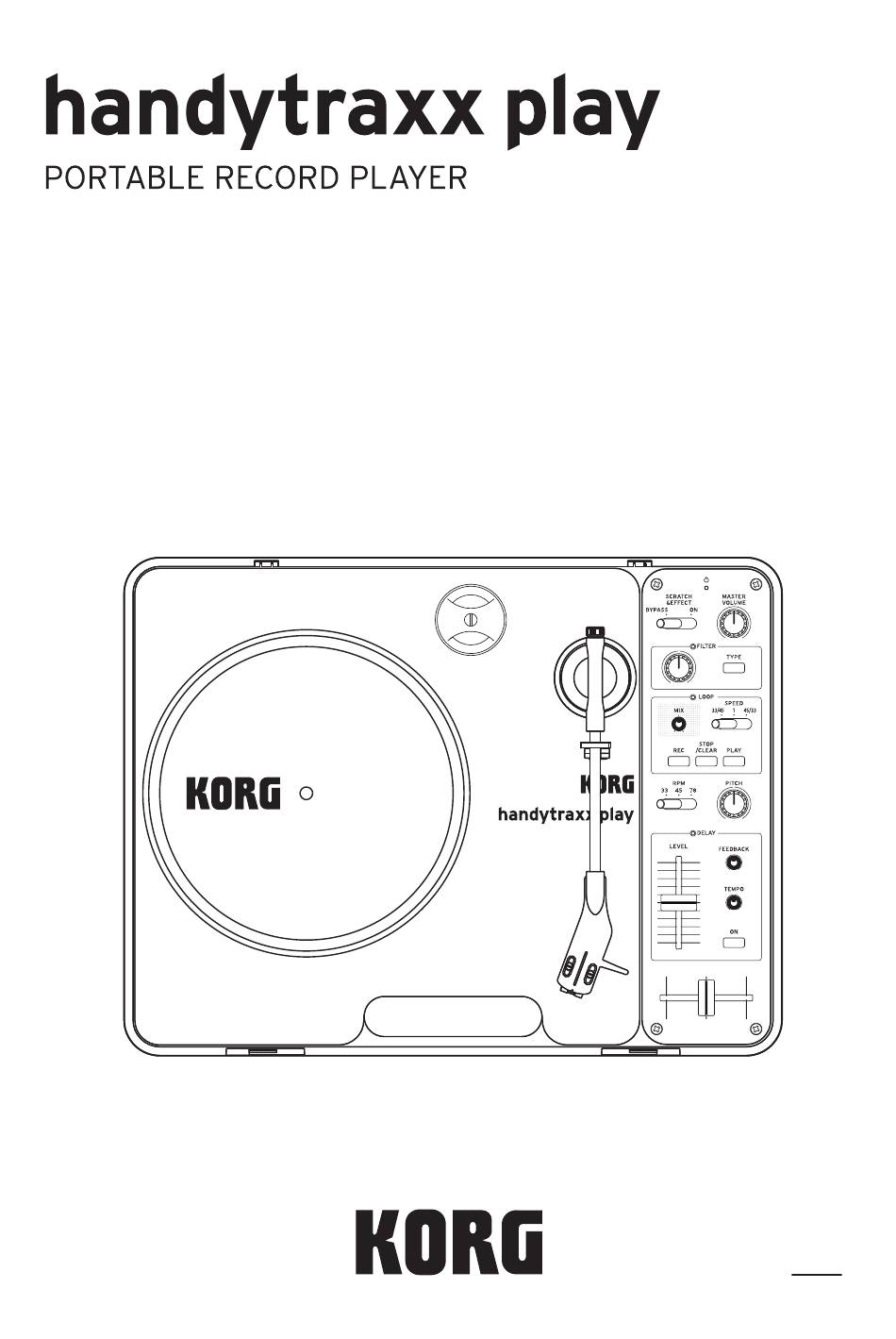

- Page 1 Quick Start Guide En 1...
-
Page 2: Table Of Contents
- Table of contents Table of contents Introduction ........................3 Conventions in this manual ................4 Main features ......................5 Part names........................6 Top panel ........................6 Control panel ....................... 7 Side panel ........................8 Getting ready........................9 Using the dust cover ....................9 Setting up the unit...................... -
Page 3: Introduction
- Introduction Introduction Thank you for purchasing the Korg handytraxx play Portable Record Player. To take full advantage of this device’s functionality and ensure years of trouble-free operation, please read this Owner's Manual carefully before use. → Conventions in this manual... -
Page 4: Conventions In This Manual
- Introduction Conventions in this manual • Specifications and appearance of this product are subject to change without notice. • The product shapes and display content illustrated in this manual may differ somewhat from the actual product. • Symbols used in this manual Indicates an explanation you should heed to ensure that you can correctly uti- lize the capabilities or functionality of this unit. -
Page 5: Main Features
- Introduction Main features Portable, can be carried anywhere • Compact, lightweight. Attach the cover and easily carry the unit with the handle. • Can be powered with six type AA batteries or the AC adapter. • Features a built-in phono equalizer and speaker—all you need to play records. -
Page 6: Part Names
- Part names Part names Top panel Platter Slip mat Spindle EP adapter Needle pressure adjustment screw This screw comes preadjusted at the optimum pressure for the included cartridge. Do not Note: adjust this screw unless you have replaced the cartridge. -
Page 7: Control Panel
- Part names Control panel Power indicator SCRATCH/EFFECT switch MASTER VOLUME knob FILTER section LOOP section RPM switch PITCH knob DELAY section Crossfader By removing the screw on the control panel to switch the front/rear orientation and remounting... -
Page 8: Side Panel
- Part names Side panel FADER REVERSE switch Toggles the crossfader control orientation. Headphones jack (3.5 mm stereo mini-phone jack) Connect your headphones here. Headphones volume knob Adjusts the output volume for the headphones. Headphones DIRECT/MASTER switch → Connecting the headphones Switches between output sources for the headphones. -
Page 9: Getting Ready
• To prevent the unit from picking up vibrations or sound pressure waves, do not place it next to speakers or similar equipment. • Placing the handytraxx play next to a radio may cause it to pick up wireless electrostatic inter- ference. For this reason, keep the handytraxx play away from any wireless devices. Placing this... -
Page 10: Inserting The Batteries
- Getting ready Inserting the batteries Remove the screw from the bottom of the battery compartment, open the cover and insert the bat- teries while making sure they are facing the right direction. When using this unit on battery power, the power indicator blinks at a specific interval if the remain- ing battery level reaches or falls below a certain point. -
Page 11: Removing The Exchangeable Plug From The Ac Adapter
- Getting ready Removing the exchangeable plug from the AC adapter While pressing the lock button on the AC adapter, slide the exchangeable plug. Once it reaches the point where it can no longer slide, the exchangeable plug can be removed. -
Page 12: Connecting Audio Devices
- Getting ready Connecting audio devices Use the OUTPUT jacks if you wish to connect to an audio amp or the like. The audio output from the OUTPUT jacks is the same as the sound that’s output from the speakers. -
Page 13: Operation
- Operation Operation → Playing a record → DJ play... -
Page 14: Playing A Record
Use the headphone volume knob to control the headphone volume. Auto power-off function The handytraxx play automatically turns off if the switches are not operated for 20 minutes and the turntable is stopped (except for when the looper is recording). -
Page 15: Dj Play
- Operation DJ play DJ play You can enjoy DJ play by recording the sound of the record with the looper, and then use the cross- fader while the loop is playing in the background to scratch the record or apply delay and filter effects. -
Page 16: Loop Section
- Operation LOOP section MIX knob This adjusts the volume balance between the loop playback and record playback audio. When you scratch while the loop is playing back but the record playback audio is too loud, turn the knob clockwise from center position. -
Page 17: Crossfader
- Operation PLAY button Plays the recorded audio in a loop. Each time you press this repeatedly during playback, the loop restarts from the beginning, so you can use this like a sampler pad. LOOP indicator Shows the looper status. -
Page 18: Effects
- Operation Effects FILTER section FILTER knob Adjusts the filter effect. The effect that changes when you turn the knob depends on the filter type. TYPE button Each press of this button cycles to the next filter type. When you switch the filter type, the FILTER indicator color changes. -
Page 19: Delay Section
- Operation DELAY section FEEDBACK knob Sets how many times the feedback delay sound is repeated. Turn this knob clockwise for more repeti- tions, and counterclockwise for less repetitions. TEMPO knob Adjusts the delay time. Turn the knob clockwise for a longer delay time, and counterclockwise for a shorter delay time. -
Page 20: Appendix
- Appendix Appendix → Replacing the cartridge and needle → Troubleshooting → Specifications → Block diagram... -
Page 21: Replacing The Cartridge And Needle
• If the tip of the cartridge needle becomes worn out, this may make the sound quality worse, and may also damage the record. • Make sure to turn the power off before you replace these parts. • Please contact Korg customer service if you need to replace the cartridge or needle. -
Page 22: Troubleshooting
- Appendix Troubleshooting Power does not turn on • Is the AC adapter plugged into the AC outlet? Connect the AC adapter to the AC outlet. • Have you installed batteries, and are they in the correct orientation? If you are using this unit on battery power, check whether the batteries have enough charge. -
Page 23: Specifications
- Appendix Specifications Drive system Belt-driven (with digital rotation correction) Drive motor DC servo motor 33-1/3, 45 or 78 revolutions per minute S/N (signal-to-noise) ratio Less than 60 dB (DIN-B) Cartridge model Stereo ceramic cartridge included (MM supported) Needle pressure 5–6 g... - Page 24 - Appendix Included items AC adapter (USB type-C cable attached), AC adapter exchangeable plug (5 types), dust cover, slip mat, slip sheet, EP adapter, Quick Start Guide * Specifications and appearance are subject to change without notice for improvement.
-
Page 25: Block Diagram
- Appendix Block diagram... - Page 26 ©2025 KORG INC. Published 02/2025...
