Summary of Contents for Appsys ProAudio flexiverter AUX-ADAT

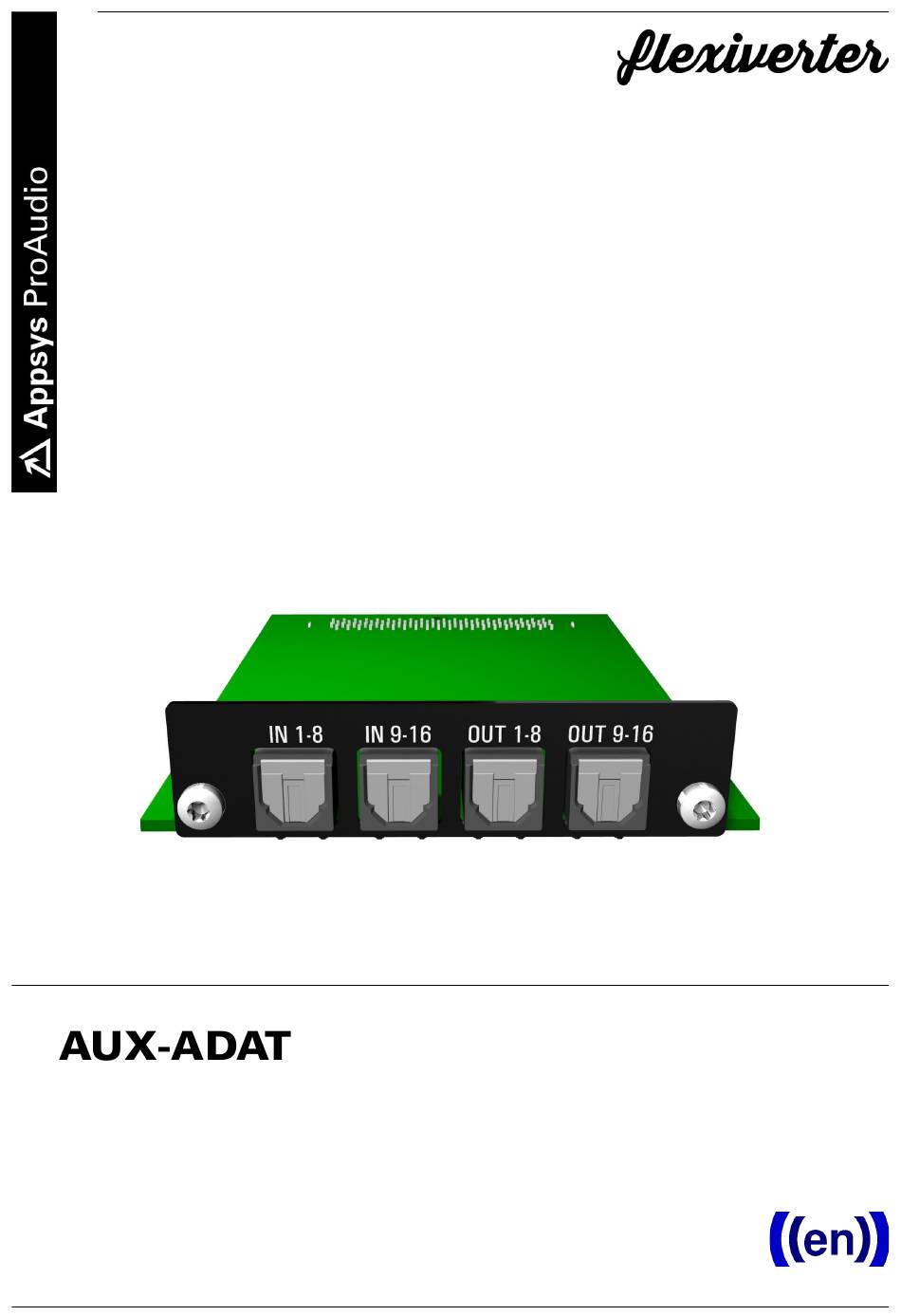

- Page 1 16x16 channel ADAT/SPDIF Extension Card for FLX devices User's Manual...
-
Page 2: Table Of Contents
User's Manual Table of Contents CONNECTORS.....................3 DESCRIPTION......................3 2.1. Box Contents....................3 INSTALLATION....................4 3.1. Opening the flexiverter.................4 3.2. Flexiverter Inside View.................4 3.3. Installing the card..................4 DIP SETTINGS.....................5 SELF-TEST......................5 SPECIFICATIONS....................6 APPENDIX......................6 7.1. Available AUX cards..................6 7.2. Available FLX devices..................6 7.3. Warranty....................7 7.4. Manufacturer contact...................7 7.5. -
Page 3: Connectors
AUX-ADAT CONNECTORS ➊ ADAT / SPDIF Inputs (format is auto-detected) ADAT / SPDIF Outputs (format can be set by DIP switches, see . DIP ➋ Settings) DESCRIPTION The AUX-ADAT card provides 16x16 channels of ADAT and/or SPDIF I/O. It can be fitted into every flexiverter (FLX) device for the following purposes: to use the FLX as standalone converter between the built-in interface and this ... -
Page 4: Installation
User's Manual INSTALLATION 3.1. Opening the flexiverter Required: Torx T10 screwdriver Power off the device and detach all cables to avoid short-circuit or damage Detach the device from the rack-mount kit Remove the four top screws and the top cover by pulling it upwards: ... -
Page 5: Dip Settings
AUX-ADAT DIP SETTINGS The behavior of the card can be controlled by DIP switches 4..6 on the FLX device. Changing the DIP settings will come immediately into effect. AUX-ADAT Channels 1-8: Channels 9-16: Clock source: ▀ ▀ ▀ ADAT format* 1 ADAT format* 1 Auto* 2 Channels 1-2:... -
Page 6: Specifications
User's Manual SPECIFICATIONS Parameter Value Dimensions 118x80mm (WxH) Weight Operating 0..+55°C, non-condensing temperature Storage temperature -40..+85°C, non-condensing Cable lengths Toslink: Up to 5m / 15 ft. Channel count ADAT mode Each I/O: 8@ 8kHz, 4@96kHz (S/MUX), 2@192kHz (Q/MUX) SPDIF mode Each I/O: 2@48kHz, 2@96kHz Sample rates ADAT mode... -
Page 7: Warranty
1: Initial release All trademarks mentioned in this document are property of the respective owners. All information provided here is subject to change without prior notice. Document Revision: 2 · 2025-03-11 Copyright © 2021 Appsys ProAudio · Printed in Germany IDENT 9.00.16136.00...
