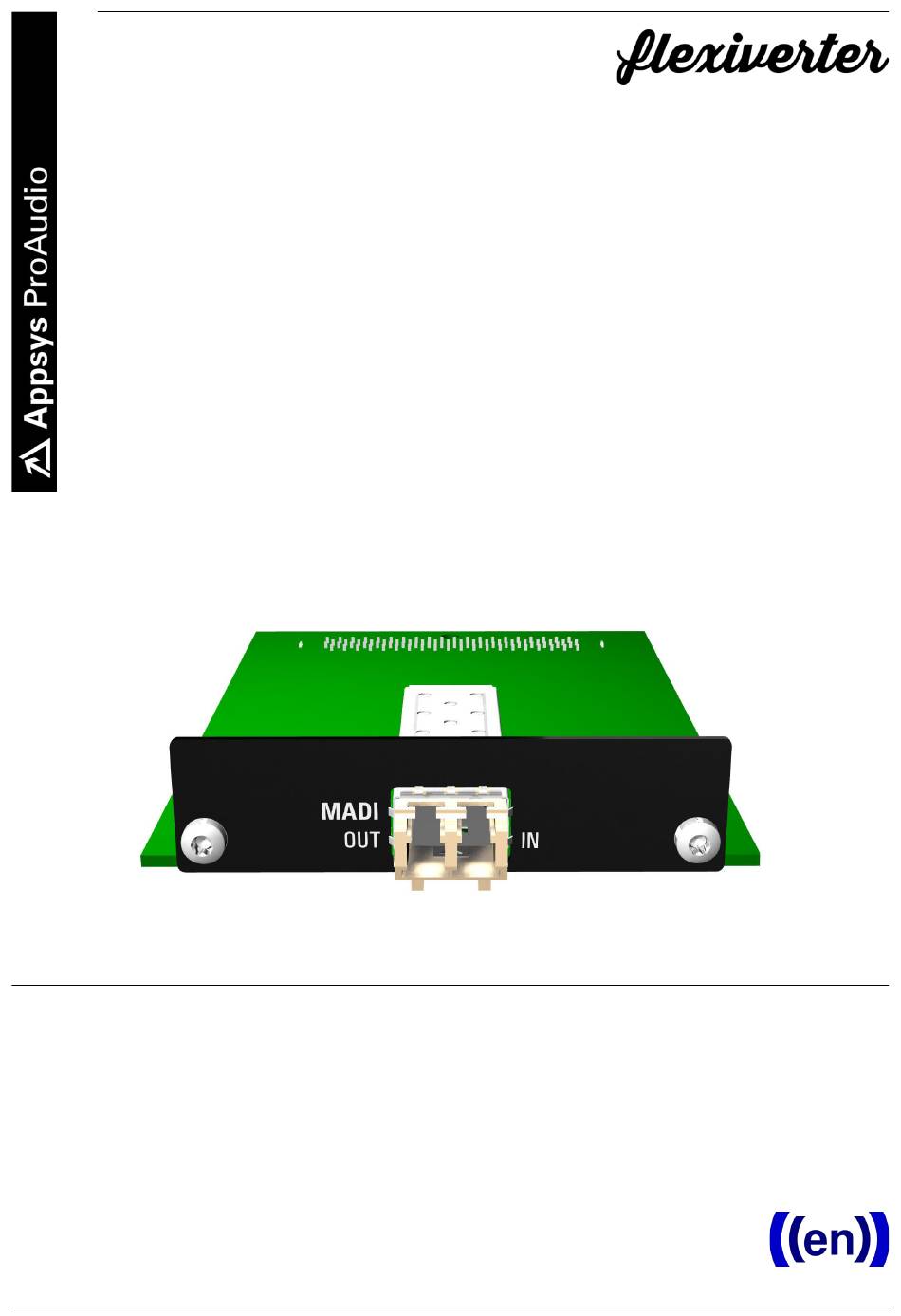

- Page 1 AUX-MADI-SFP 64x64 channel MADI Extension Card for FLX devices User's Manual...
-
Page 2: Table Of Contents
User's Manual Table of Contents CONNECTORS....................3 DESCRIPTION....................3 2.1. Box Contents.................... 3 INSTALLATION....................4 3.1. Opening the flexiverter................4 3.2. Flexiverter Inside View................4 3.3. Installing the card..................4 DIP SETTINGS....................5 SELF-TEST......................5 SPECIFICATIONS....................6 APPENDIX......................6 7.1. Available AUX cards..................6 7.2. -
Page 3: Connectors
Input mode fiber). DESCRIPTION The AUX-MADI-SFP card provides 64x64 channels of MADI over SFP. It can be fitted into every flexiverter (FLX) device for the following purposes: to use the FLX as standalone converter between the built-in interface and this ... -
Page 4: Installation
User's Manual INSTALLATION 3.1. Opening the flexiverter Required: Torx T10 screwdriver Power off the device and detach all cables to avoid short-circuit or damage Detach the device from the rack-mount kit Remove the four top screws and the top cover by pulling it upwards: ... -
Page 5: Dip Settings
AUX-MADI-SFP DIP SETTINGS The behavior of the card can be controlled by DIP switches 4..6 on the FLX device. Changing the DIP settings will come immediately into effect. AUX-MADI-SFP 96k frame* 1 64ch output* 1 ▀ ▀ ▀ 5 6 ▃ ▃ ▀... -
Page 6: Specifications
8ch analog outputs (1xDB25) AUX-DANTE 64x64ch DANTE network card AUX-MADI-COAX 64x64ch MADI for coaxial cable (BNC connectors) AUX-MADI-OPTO 64x64ch MADI optical, SC connector (Multimode 125um 1310 nm) AUX-MADI-SFP 64x64ch MADI for SFP (Small-Factor Pluggable) modules AUX-WORDCLOCK BNC wordclock I/O 2 Estimated availability: Q1/2022... -
Page 7: Available Flx Devices
AUX-MADI-SFP 7.2. Available FLX devices At the time of writing (2021-11), the following FLX devices are available. More will come, please check www.appsys.ch for updates. Item Description FLX-AES3 16x16 channel AES3 flexiverter (with AUX slot) FLX-AES50 96x96 channel AES50 flexiverter (with AUX slot) -
Page 8: About This Document
About this document All trademarks mentioned in this document are property of the respective owners. All information provided here is subject to change without prior notice. Document Revision: 1 · 2021-11-29 Copyright © 2021 Appsys ProAudio · Printed in Switzerland IDENT 9.00.16141.00...
