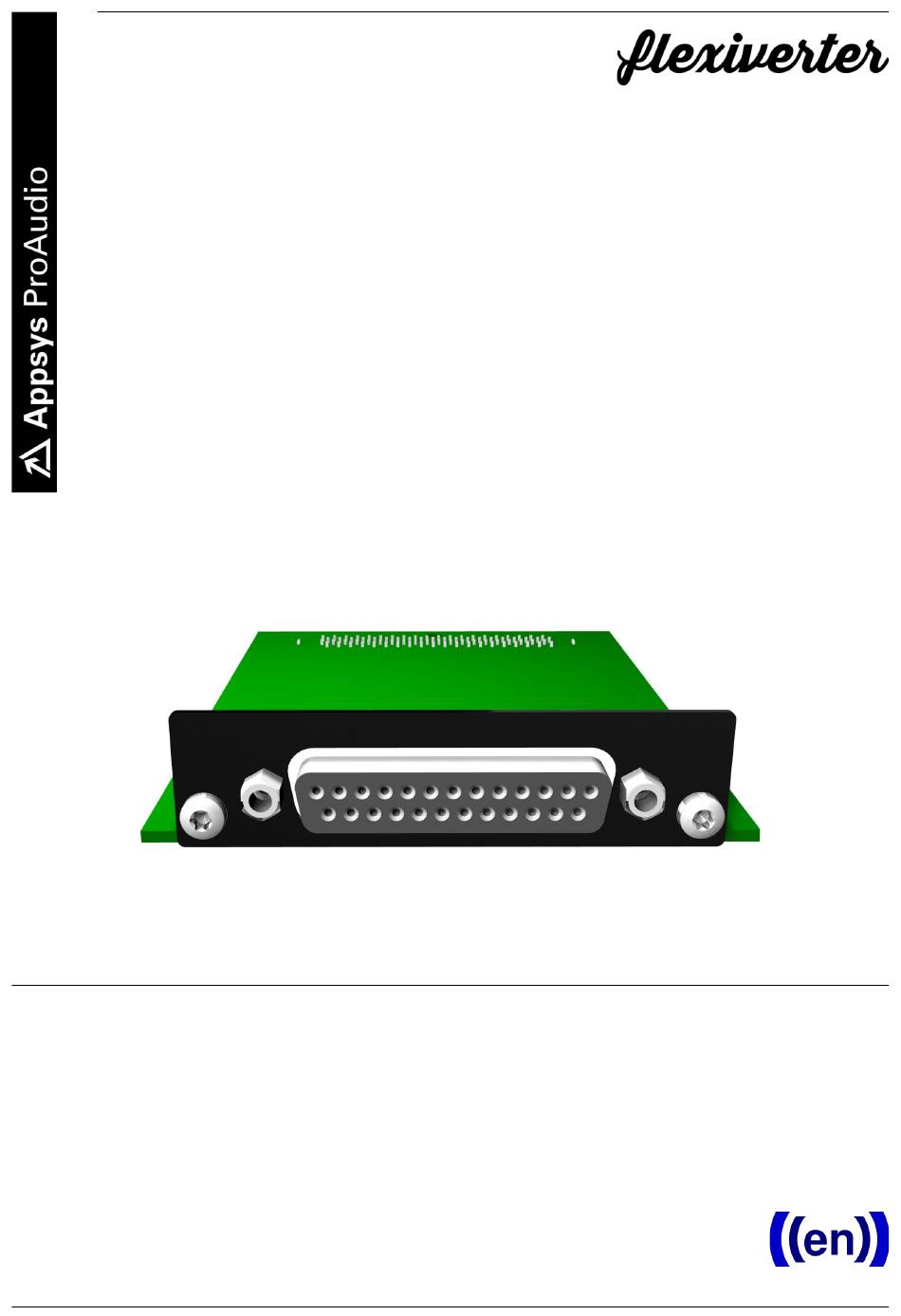

- Page 1 AUX-AES3 8x8 channel AES/EBU Extension Card for FLX devices User's Manual...
-
Page 2: Table Of Contents
User's Manual Table of Contents CONNECTORS....................3 DESCRIPTION....................3 2.1. Box Contents.................... 3 INSTALLATION....................4 3.1. Opening the flexiverter................4 3.2. Flexiverter Inside View................4 3.3. Installing the card..................4 VARIABLE DB25 PINOUT..................5 DIP SETTINGS....................6 SELF-TEST......................6 SPECIFICATIONS....................8 APPENDIX......................8 8.1. -
Page 3: Connectors
4 . Variable DB25 pinout DESCRIPTION The AUX-AES3 card provides 8x8 channels of AES/EBU It can be fitted into every flexiverter (FLX) device for the following purposes: to use the FLX as standalone converter between the built-in interface and this ... -
Page 4: Installation
User's Manual INSTALLATION 3.1. Opening the flexiverter Required: Torx T10 screwdriver Power off the device and detach all cables to avoid short-circuit or damage Detach the device from the rack-mount kit Remove the four top screws and the top cover by pulling it upwards: ... -
Page 5: Variable Db25 Pinout
AUX-AES3 VARIABLE DB25 PINOUT Historically, there are two different pin assignments for the AES/EBU DB25 connectors around, commonly known as "Yamaha" and "Tascam" style. The AUX- AES3 supports both pinouts by means of internal jumpers. Locate the jumper blocks on the card and move all jumper blocks (3 each) to ... -
Page 6: Dip Settings
DIP SETTINGS The behavior of the card can be controlled by DIP switches 4..6 on the FLX device. Changing the DIP settings will come immediately into effect. AUX-AES3 Single Wire (full channel count at 48k, 96k and 192k), ▀ ▀ 4 5 professional format for metadata* ▃ ▀... - Page 7 AUX-AES3 Note: A special loopback cable / plug is required for this. Depending on the jumpered pinout, the cable must connect each "OUT" (Cold/Hot) to the corresponding "IN". Attach the loopback plug or cable Turn off the FLX, and hold down Mode button while switching on again ...
-
Page 8: Specifications
Item Description AUX-ADAT 16x16ch ADAT I/O (2x Toslink In+2x out). Supports also S/PDIF AUX-AES3 8x8ch AES3 I/O on 1x DB25, fully transformer isolated AUX-AES67 64x64ch AES67 network card AUX-AVB 1 16x16ch / 32x0ch / 0x32ch MILAN-approved AVB... -
Page 9: Available Flx Devices
AUX-AES3 AUX-WORDCLOCK BNC wordclock I/O 8.2. Available FLX devices At the time of writing (2021-11), the following FLX devices are available. More will come, please check www.appsys.ch for updates. Item Description FLX-AES3 16x16 channel AES3 flexiverter (with AUX slot) FLX-AES50... -
Page 10: Document Revision History
About this document All trademarks mentioned in this document are property of the respective owners. All information provided here is subject to change without prior notice. Document Revision: 1 · 2021-11-29 Copyright © 2021 Appsys ProAudio · Printed in Switzerland IDENT 9.00.16137.00...
