Solenso Sol-H900 Quick Installation Manual

1. Accessories
Object
A
B
C
D
*Note:1. All above accessories are not included in the package, they need to be purchased
separately. Please contact our sales for the price.
2. M8 screws need to be prepared by installer.

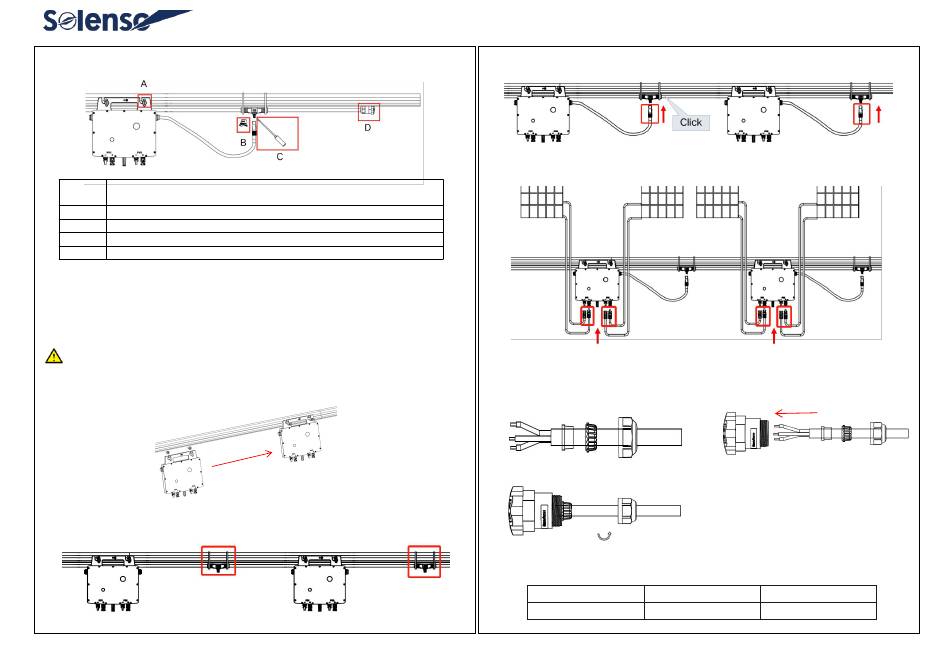

2. Installation Steps
Ensure the microinverter is installed in the required environment. (Refer to
product user manual for more details.)
a. Attach Microinverter on Rail
b. Plan and Build the AC Trunk Cable
Sol-H900/Sol-H1000 AC Version 0001 REV1.1
Description
M8*25 screws
AC T trunk waterproof cap
Slotted screwdriver
AC cable End Cap, IP65
Quick Installation Guide
c. Connect AC Cables of Microinverter and Conect PV Modules
d. Connect the module DC cable to the micro inverter DC cable.
e. Connect AC End Cable Cap
1. Strip cable jacket.
3. Rotate the nut with 3 . 3N . m untilthe latching mechanism meets the base
f. Make sure to respect max number of micro inverters / AC line:
L+N 230 Vac
AC bus cable
2. Insert the cable end into the seal.
Sol-H900 Sol-H1000
Max 8 Max 7
1 / 2
