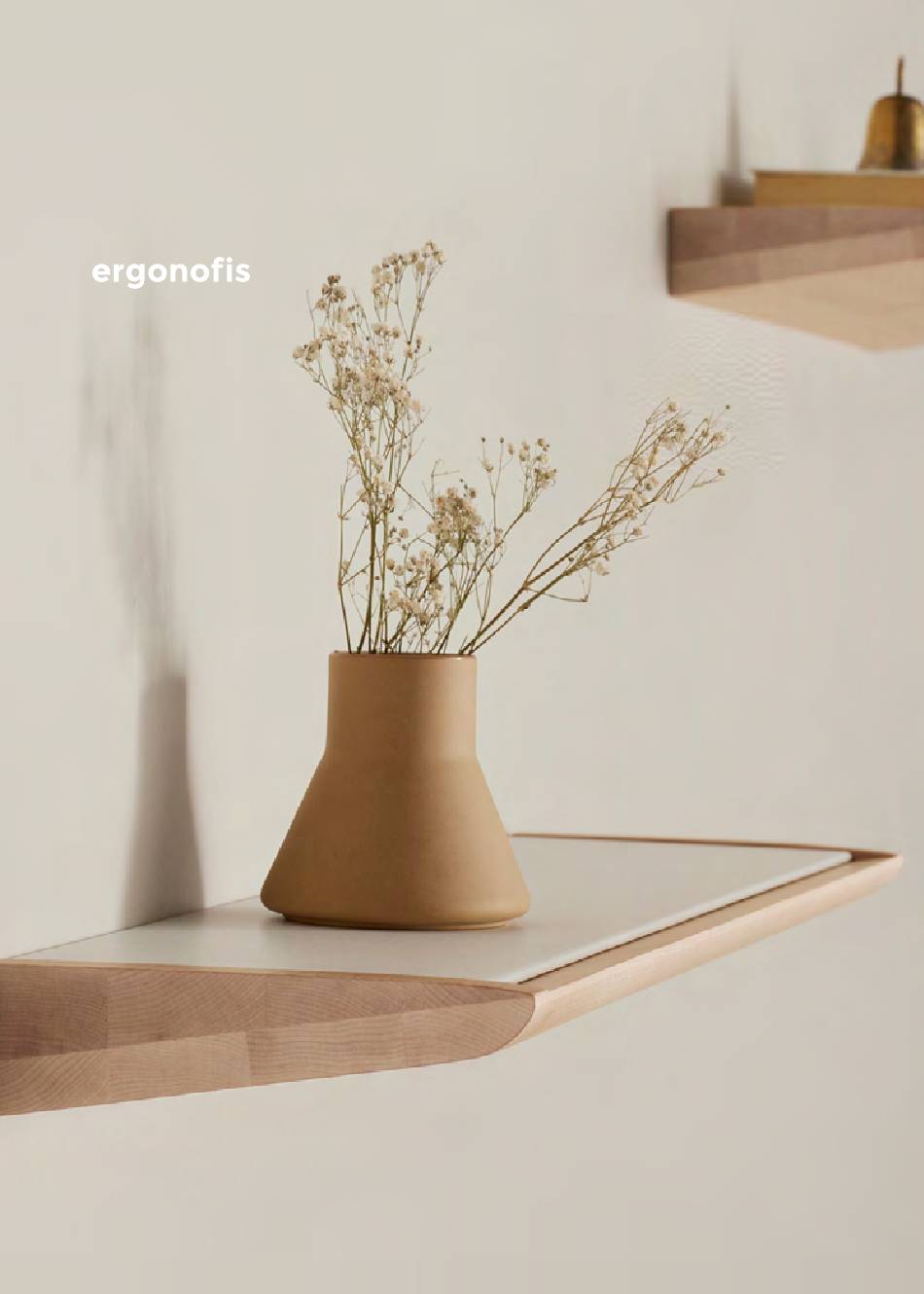

- Page 1 Installation Guide Wall Shelf...
- Page 2 100% made in Quebec. If you have any questions To know more about our products regarding our products, give us a and services, visit our website at call at 1-877-377-8263 or email us ergonofis.com at info@ergonofis.com...
-
Page 3: Table Of Contents
Table of Contents Installation preparation Content Installation on wall studs Installation on drywall 10-14 Wall Shelf warranty... -
Page 4: Installation Preparation
Special anchors may be required for other types of walls. • Make sure that the wall is structurally sound before the installation. • Ergonofis is not responsible for damages or failure due to improper installation or installation on a faulty wall. -
Page 5: Content
Content : Wood Shelf Metal Support Installation Template Drywall Anchors x7 Screws #8 x 1.5” x7 Required tools (non included) : Electric Screwdriver Level Stud Finder* P2 Phillips Bit Pencil * Required only if you install in wall studs... -
Page 6: Installation On Wall Studs
Installation on wall studs Prioritize this installation method if you are able to locate the studs of your wall and if their arrangement matches the layout you wish to achieve. If you prefer to install the shelf in gypsum only, please refer to the steps beginning on page 10. - Page 7 Step 2 Find the position of the studs in your wall using a stud finder and mark two points at a distance of 16”, aligned on the center of the studs. Use a level to ensure they are parallel to the ground. 16”...
- Page 8 Step 4 Hang the metal support on these two screws using the two lock holes present on the support. Slide the support along the screws to align the shelf, ensuring that the screw heads are sufficiently away from the entry hole. Step 5 Using the screwdriver, tighten the screws against the metal support.
- Page 9 Step 6 Slide the wooden shelf over the support, aligning the keyholes of the support with the hardware of the shelf. Ensure that the assembly is firmly inserted all the way. Step 7 Place your personal items on the shelf. Do not exceed the maximum load of 33 lbs or 15 kg.
-
Page 10: Installation On Drywall
Installation in a gypsum wall without studs Follow these steps if you wish to install the shelf in a gypsum wall without using wall studs. Make sure the gypsum wall is between 3/8” and 5/8” thick and adequately fixed to the structure of the wall. Step 1 Start by removing the metal structure from the wooden shelf by sliding the two pieces in opposite directions, then separating the hardware from the... - Page 11 Step 2 Place the cardboard template provided in your package to determine the position of your shelf. Use a level to ensure the template is parallel to the floor, then mark the position of the seven holes on the wall. Remove the template.
- Page 12 Step 4 Using an electric screwdriver with a Phillips P2 head, fix screws into the second and sixth anchors. Leave the screw heads protruding about 1/4”. 1/4” Step 5 Hang the metal structure on these two screws using the two keyholes present on the structure.
- Page 13 Step 6 Using the screwdriver, tighten the screws against the metal structure. Ensure that the screws are tightly secured against the inner wall and that the structure no longer moves or sags. A snapping sound confirms that the anchor has deployed and reached its maximum strength. SNAP! Step 7 Install screws into the remaining anchors.
- Page 14 Step 8 Slide the wooden shelf against the structure, ensuring that the keyholes of the bracket align with the hardware of the shelf. Make sure the assembly is firmly inserted all the way. Step 9 Place your personal items on the shelf. Do not exceed the maximum load of 33 lbs or 15 kg.
- Page 16 Normal wear and tear. Please note that the warranty applies only to the original purchaser with proof of purchase and is not transferable. Ergonofis is not responsible for damages or failure due to improper installation or installation on a faulty wall.
- Page 17 1-877-37-STAND info@ergonofis.com ergonofis.com...
