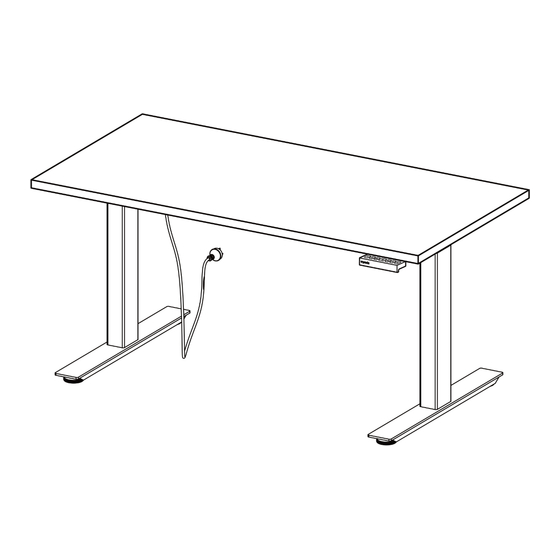

- Page 1 Installation guide...
- Page 2 If you have any questions To know more about our products regarding our products, call and services, visit our website at us at 1-877-37-STAND. ergonofis.com.
-
Page 3: Table Of Contents
Step 3 - Adjust the rail to the proper length and secure the rail Step 4 - Secure the frame to the work surface Step 5 - Attach the feet Step 6 - Attach the ergonofis handset Step 7 - Wire management Step 8 - Turn the desk upright... -
Page 5: Assembly Instructions
Assembly instructions english version... -
Page 6: Table Parts And Hardware
6. Glides, they are pre-assembled on the feet (4) 7. Control Box (1) 8. Power cable (1) 9. ergonofis Handset (1) 10. Wire management kit (1) 11. Table top (only when purchased a complete desk) 12. M6 x 12mm screw (4) 13. -
Page 8: Step 1 - Unfold The Lifting Columns
Step 1 Unfold the lifting columns * * * Caution * * * > We highly suggest being two to unbox the frame and to unfold the lifting columns. > Be careful not to squeeze your fingers while unfolding the lifting columns. -
Page 10: Step 2 - Attach Side Brackets To Lifting Columns
Step 2 Attach side brackets to lifting columns You will need your lifting columns (2), side brackets (2), M6 x 12mm screw (4) and the M5 Allen key. 1. Insert the side brackets in the lifting column. Make sure the side holes are aligned. -
Page 12: Step 3 - Adjust The Rail To The Proper Length And Secure The Rail
Step 3 Adjust the rail to the proper length and secure the rail You will need the frame (composed of the lifting columns, the side brackets, and the rail) and the M5 Allen key. 1. Set frame on the underside of the worksurface (table top), loosen the screws that are in the rails (the screws are already in the proper holes in the frame), and then align the frame holes with the pre-drilled holes in the worksurface. -
Page 14: Step 4 - Secure The Frame To The Work Surface
Step 4 Secure the frame to the work surface (table top) You will need the frame, the button head ST5.0 screws (16), and a screwdriver or a power drill. 1. Double check to make sure everything is centered on the pre-drilled holes, then, using the button head ST5.0 screws (16), secure the frame to the table. -
Page 16: Step 5 - Attach The Feet
Step 5 Attach the feet You will need your feet (2), the round M8 x 20mm head screws (8), and the M5 Allen key. 1. Affix the foot to the column. 2. Secure the foot to the column using the round M8 x 20mm head screws and the M5 Allen key. -
Page 18: Step 6 - Attach The Ergonofis Handset
Step 6 You will need your handset, the pan head ST3.5 screws (4), and a screwdriver or a power drill. 1. Locate the four pre-drilled holes for the handset. 2. Secure the handset to the table top using the pan head ST3.5 screws (4). -
Page 20: Step 7 - Wire Management
Step 7 Wire management You will need the wire management kit 1. Connect the handset to the control box. 2. Connect the cables from each leg into the control box. 3. Connect the power cord to the power port on the control box (the other end of the power cable will go into an outlet). -
Page 22: Step 8 - Turn The Desk Upright
Step 8 Turning the desk upright Attention: We highly suggest being two when turning the desk. 1. Turn the desk over into an upright position. 2. Connect the power cord to a power outlet. 3. Review the handset guide to start using your desk. 4. -
Page 24: Handset User Guide
Handset user guide english version... -
Page 25: Technical Data
Technical data Supply voltage 100-240 V Consumption while 70 W raising/lowering (average) Consumption in standby Cable length (including loop) -
Page 26: Initializing
Initializing First Use Plug the power cable into an electrical outlet and you may start using your desk. Saving a position You can use this function to program your preferred heights for standing and sitting. 1. Adjust the desk to the height you wish to save by using the up/down arrows. -
Page 27: Recalling A Saved Position
*Use this function with caution. Make sure that nothing prevents your desk from raising or lowering and that no one, including animals, goes under the desk while it’s moving. ergonofis will not be held responsible for any injuries caused by the mishandling of this function or any other incidents. -
Page 28: Locking - Unlocking The Desk
Initializing (cont’d) Removing height limits 1. Adjust the desk to the current height limit by using the up/down arrows. 2. Press and hold both “1” and “2” at the same time for 5 seconds or until you hear a “beep” to remove the height limit when lowering the desk or press and hold both “3”... -
Page 29: Intelligent System Protection (Isp)
Intelligent system protection (ISP) for collision detection All our desks are equipped with an Intelligent system protection (ISP) for collision detection using sensors. If you lower the desk onto an obstacle, the sensors will detect it and automatically stop and reverse direction for about ½ an inch. The desk will react in the same manner if an obstacle is met while raising. -
Page 30: Troubleshooting
Troubleshooting Code Source Solution Disconnect the power cable, Internal fault reconnect, and perform factory reset Disconnect the power cable, recon- nect, and perform factory reset. If Synchro error handset displays “RST”, hold down arrow until the desk goes all the way at its lowest height. -
Page 31: Warranty
What happens if any parts defect while the warranty is still applicable? If you have an ergonofis desk that defects during the warranty period, send us an email at info@ergonofis.com explaining what happened. Depending on the issue, we may be able to fix it with you... - Page 32 51 de Louvain Street W. 1-877-37-STAND Montreal (Quebec) info@ergonofis.com H2N 1A3 Canada ergonofis.com...
