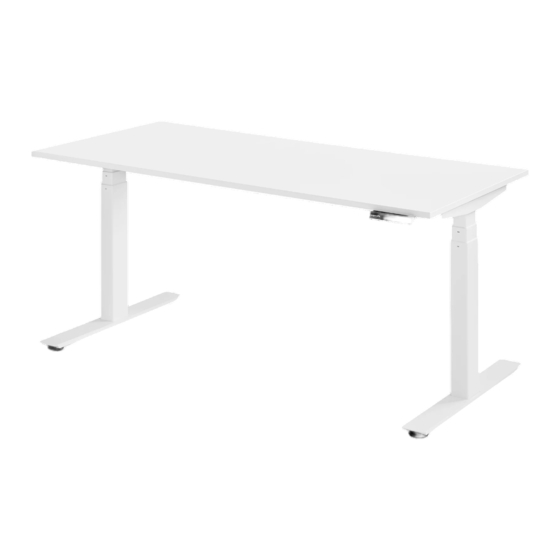

- Page 1 Installation Guide...
- Page 2 If you have any questions To know more about our products regarding our products,call us and services, visit our website at at 1-877-377-8263 or email us ergonofis.com at info@ergonofis...
-
Page 3: Table Of Contents
Table of contents Assembly instructions Table parts and hardware Step 1 Unfold the lifting columns from the frame Step 2 Installing the cantilevers on the lifting columns Step 3 Adjusting the frame to the proper length and securing it Step 4 Securing the frame to the work surface Step 5 Installing the desk’s feet Step 6 Installing the handset... - Page 4 What’s included in the box : Frame (x1) Feet (24 po or 30 po) (x2) Control Box (x1) Handset (x1) Levelers M8 for Feet (x4) Cantilevers(x2) Power Cable (x1) Surface (Only Cable management when purchased a Loops (x6) complete desk) (x1) Adhesive Loops (x4) Motor Cable (x1) Tie Wraps (x12)
- Page 5 Round Head Screws Tapping Screws Socket Screws M8 X 16 mm (x8) ST4 X 21 mm (x4) M6 x 15 mm (x4) Tapping Screws Tapping Screws Tapping Screws ST4 X 16 mm (x6) ST5 X 23 mm (x16) ST4.2 x 16 mm (x2) 5mm Allen Key (x1) Outils requis (non inclus) : Phillips Head...
-
Page 6: Assembly Instructions
Assembly instructions English Version... -
Page 7: Step 1 Unfold The Lifting Columns From The Frame
Step 1 Unfold the lifting columns from the frame * * * Caution * * * • We strongly recommend being two to unbox the frame and unfold the lifting columns. • Be careful not to squeeze your fingers while unfolding the lifting columns. -
Page 8: Step 2 Installing The Cantilevers On The Lifting Columns
Step 2 Installing the cantilevers on the lifting columns You will need the frame (x1), cantilevers (x2), socket screws M6 x 15 mm (x4) and the 5 mm Allen key. 2.1 Insert the first cantilever inside the rails. Make sure the side holes are aligned. - Page 9 2.2 Screw the cantilever to the lifting column using the socket screws M6 x 15 mm and the 5 mm Allen key. 2.3 Repeat with the second column.
-
Page 10: Step 3 Adjusting The Frame To The Proper Length And Securing It
Step 3 Adjusting the frame to the proper length and securing it 3.1 Place the frame on the underside of the work surface. Loosen the screws that are on the rail (these screws are already installed on the rail). Align the holes of the frame with the pre-drilled holes of the work surface. - Page 11 3.2 Lock the rails by securing the screws clockwise using the 5 mm Allen key until they’re tight.
-
Page 12: Step 4 Securing The Frame To The Work Surface
Step 4 Securing the frame to the work surface You will need the frame, the tapping screws ST5 x 23 mm (x16), and a screwdriver or a electric screwdriver. 4.1 Double-check to make sure the frame is well centred over the work surface’s pre-drilled holes. -
Page 14: Step 5 Installing The Desk's Feet
Step 5 Installing the desk’s feet You will need the feet (x2), the round head screws M8 x 16 mm (x8), and the 5 mm Allen key. 5.1 Place a foot on a lifting column. 5.2 Secure the foot to the lifting column using the round head screws M8 x 16 mm and the 5 mm Allen key. -
Page 16: Step 6 Installing The Handset
Step 6 Installing the handset You will need the handset, the tapping screws ST4 x 21 mm (x4), and a screwdriver or a electric screwdriver. 6.1 Locate the four pre-drilled holes for the handset close to one of the surface’s corner. 6.2 Secure the handset to the work surface using the tapping screws ST4 x 21 mm (x4). -
Page 18: Step 7 Installing The Control Box
Step 7 Installing the control box You will need the control box, the screws ST4 x 16 mm (x2) and a Phillips screwdriver. 7.1 Locate the two holes under the work surface, between the two cross bar and close to one of the columns. 7.2 Place the control box over these two holes with the tabs facing down against the work surface. -
Page 20: Step 8 Connecting The Cables
Step 8 Connecting the cables 8.1 Connect the handset to the control box. 8.2 Connect the cables of each lifting column to the control box. 8.3 Connect the power cable to the power port of the control box (the other end of the power cable will be connected to an outlet). -
Page 22: Step 9 Installing The Cable Net
Fix the 4 net holders to the pre-drilled holes under your work surface. * If you are not using an ergonofis desk top, or if your work surface does not have pre-drilled holes, we suggest pre-drilling your surface to facilitate the installation of the... - Page 23 Using the 4 elastics and the net holders, attach the cable net to your work surface. Slide all your cables inside the cable net. * Tip to secure the cables : To make sure your cables stay in place, we suggest slipping the cables in the middle of the net, between the elastics.
-
Page 24: Step 10 Turning The Desk Upright
Step 10 Turning the desk upright 10.1 Turn the desk over into an upright position. WARNING! TO AVOID INJURIES AND/OR DAMAGE TO THE PRODUCT, DO NOT FLIP THE DESK BY YOURSELF. IT’S A TWO-PERSON JOB! 10.2 Connect the power cord to a power outlet. 10.3 Review the handset guide to start using your desk. -
Page 26: Handset Guide
Handset Guide English Version... -
Page 27: Technical Data
Technical data Supply voltage 100-240 V Consumption while rising/lowering (average) 70 W Consumption in standby Cable length (including loop) User Interface... -
Page 28: Initializing
Initializing First Use 1. Plug the power cable to an electrical outlet. 2. When «RST» appears on the display screen, press and maintain the down arrow button until the desk reaches its lowest point. 3. You will eventually hear a «beep» and the desk will automatically rise 5 mm, which means the initialization process is complete. -
Page 29: Recalling A Saved Position
* Use this function with caution. Make sure nothing prevents your desk from rising or lowering and that no one, including animals, goes under the desk while it’s moving. Ergonofis will not be held responsible for any injuries caused by the mishandling of this function or any other incidents. -
Page 30: Cancelling Height Limits
Cancelling Height Limits 1. Bring your desk to the height limit you want to cancel using the up ( ) and down ( ) arrows. 2. Press and hold the up ( ) and down ( ) arrows simultaneously for 5 seconds or until you hear a “beep”. -
Page 31: Resetting To Factory Settings
Resetting to Factory Settings 1. Press the up ( ) and down ( ) arrows simultaneously. You will hear a first “beep” sound after 5 seconds, then a second “beep” after 10 seconds, then release. 2. When “RST” appears on the display screen, press and maintain the down ( ) arrow button until the desk reaches its lowest point. - Page 32 3. Use the up ( ) arrow to increase the sensitivity or the down ( ) arrow to decrease the sensitivity (1 = Most Insensitive, 8 = Most Sensitive, 0 = Off) and press «4» to confirm. 4. For the downward motion sensitivity, repeat step 1, then press the up arrow until «S-4»...
-
Page 33: Warranty On All Electric Frame Set
What happens if some parts are defective while still on the warranty? If your ergonofis desk is defective during the warranty period, send us an email at info@ergonofis.com explaining what happened. Depending on the issue, we may be able to fix it with you over the phone. If not, we will... - Page 34 1-877-37-STAND info@ergonofis.com ergonofis.com...
