ATD-8116F
Owner's Manual

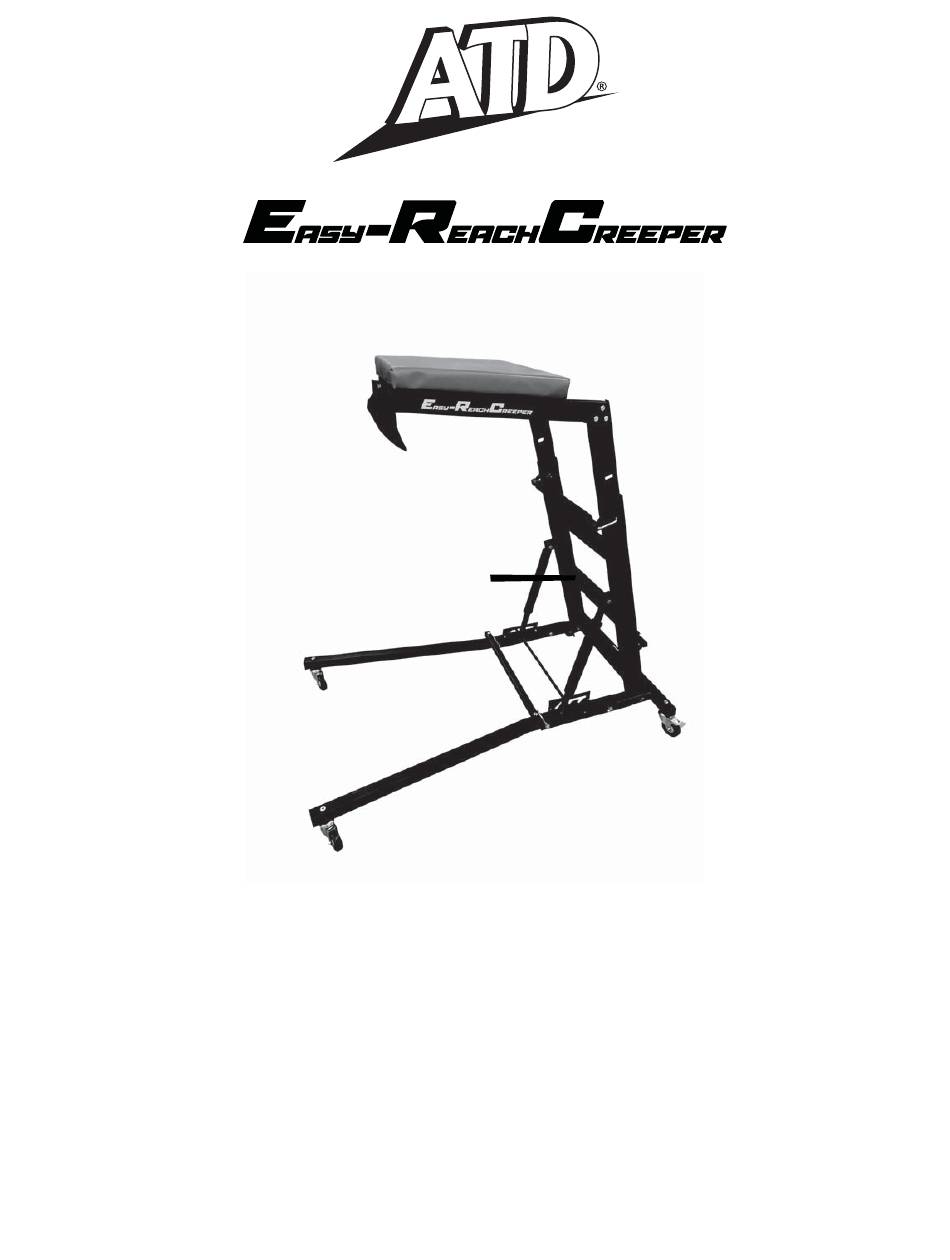

Features:
• Great for getting to the engine from the top of the vehicle
• Allows extended periods of time spent bending over the engine without the effect of painful fatigue
• The height of the Easy-Reach Creeper can be adjusted to allow use on many different types of vehicles
• Constructed of heavy-gauge steel with a powder coat finish to protect from scratching
• Deck is padded and covered with heavy vinyl for comfort and durability
• Folds for easy storage
Specifications:
• Height Adjustable from 47.5" to 70"
• Shipping dimensions: 51.2" x 24.4" x 6.7"
• Working Load Limit: 400 lbs.
• Padded Deck: 18" x 12"
• 3" Swivel Casters (2 locking, 2 non-locking) for easy movement
Made in China to ATD Tools, Inc. Specifications
ATD8116F_rev_0325
Visit us at www.atdtools.com
Advertisement
Related Manuals for ATD Tools ATD-8116F
Summary of Contents for ATD Tools ATD-8116F
- Page 1 • Shipping dimensions: 51.2” x 24.4” x 6.7” • Working Load Limit: 400 lbs. • Padded Deck: 18” x 12” • 3” Swivel Casters (2 locking, 2 non-locking) for easy movement Made in China to ATD Tools, Inc. Specifications ATD8116F_rev_0325 Visit us at www.atdtools.com...
-
Page 2: Safety First
• DO NOT use the Easy-Reach Creeper over a running engine. Assembly Before starting to assemble your new ATD-8116F Easy-Reach Creeper, lay all of the parts out and famil- iarize yourself with them, and read through the instructions on the following pages so you will be familiar with how it goes together when you begin. - Page 3 Assemble Base Assemble legs (E and F) N - Bolt to base (A) using bolts (N), nuts (V) and pins (M) as shown. Do not overtighten. A - Base E- Right Leg M - Pin (x2) V - Nut (x2) F - Left Leg NOTE: The two legs must be angled outward...
- Page 4 Attach Angle Adjustment Keepers Place angle adjustment bar into one of the R - Bolt (x2) three adjustment slots located on the base. secure angle adjustment keepers (Q) to base using bolts (R) and lock nuts (X). Q - Keeper X - Lock Nut (x4) Q - Keeper R - Bolt (x2)
- Page 5 Place pouch bracket (I) over W - Nut (x2) I - Pouch Bracket pouch (H) and align screw holes. Secure with chest frame bolts (P) and lock nuts (W). ® H - Pouch P - Chest Frame Bolts (x2) Attach Chest Pad Using two bolts (R) secure the chest pad (D) to the frame.
- Page 6 Operating Instructions Using the adjustable angle lean-in feature There are three different lean-in angles that allow the user to adjust positioning. This helps the user to maximize safety and productivity. To adjust angle lean-in: 1. Lock casters (K) by pressing the lock tab with your foot on each of the locking casters. 2.
-
Page 7: Replacement Parts
REPLACEMENT PARTS Not all components of this unit are replacement items, but are illustrated as a convenient reference for position in the assembly sequence. When ordering parts, give model number, part number and description. Call your distributor for current pricing: ®... -
Page 8: Year Limited Warranty
Your ATD-8116F is warranted for a period of 12 months from the original purchase date. For a period of one (1) year from your purchase date, ATD Tools Inc. will repair or replace (at its option) without charge, your ATD product if it was purchased new and the product has failed due to a defect in material or workmanship which you experienced during normal use of the product.
