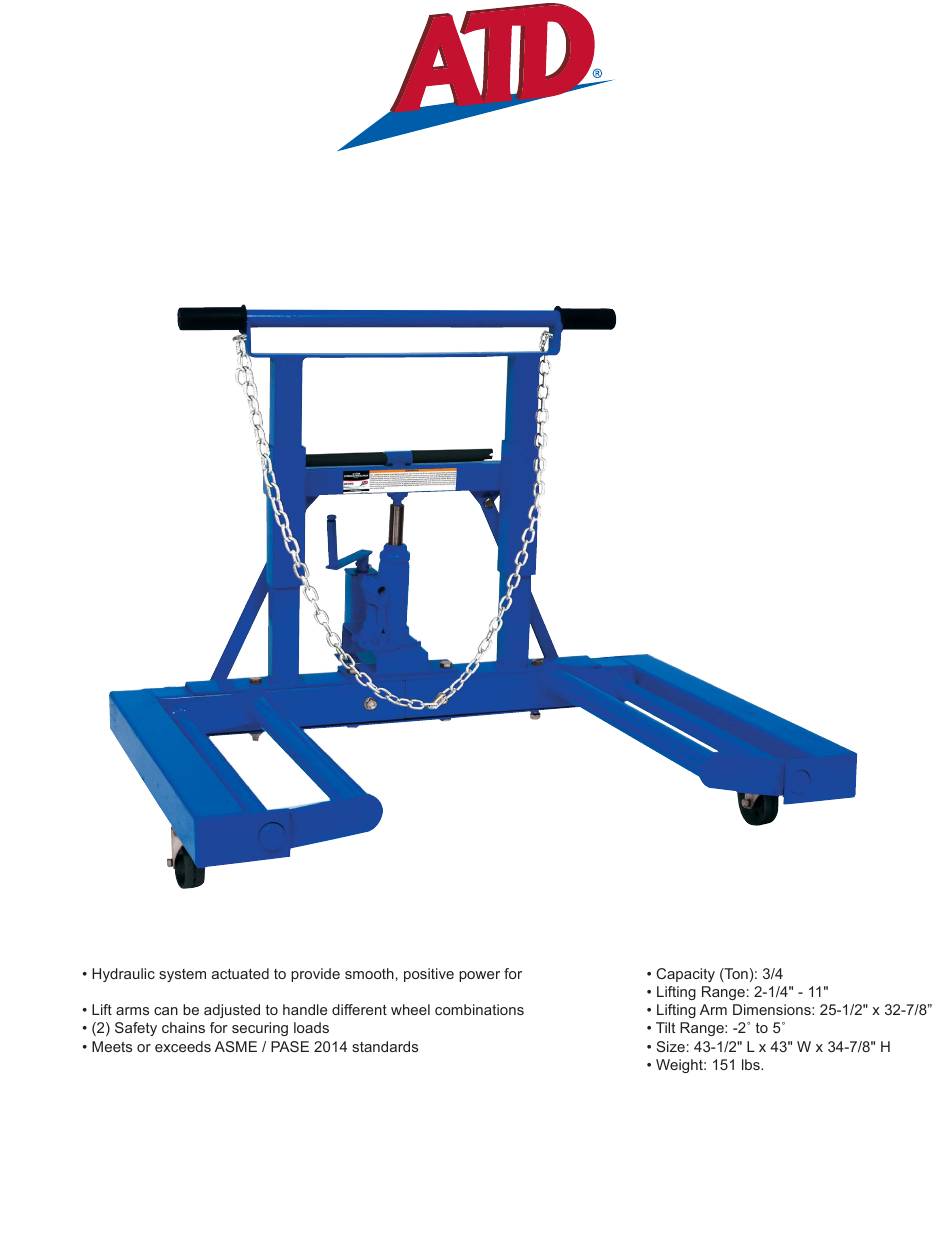

- Page 1 ATD-7227A 3/4 Ton Hydraulic Wheel Dolly Owner’s Manual Features: Specifications: the removal and installation of single, tandem and duplex tires and wheels ATD7227A_rev_0519...
-
Page 2: Safety And General Information
PRODUCT DESCRIPTION ATD Tools is designed to facilitate the removal and installation of pneumatic tires and wheel found on and trailers. This is NOT for use as a wheel and tire puller. It is... - Page 3 This purges the centered and secured with a load restraint device. PREPARATION ATD-7227A Assembly (refer to Fig. 2 & 4) Attach upright and rear support into the main frame with two nuts...
-
Page 4: Operation
WARNING To avoid crushing and related injuries and or property damage: Read, understand and follow all printed materials provided with and on this wheel Do not exceed rated capacit . Before positioning wheel doll , ensure Chock oth directions. Be alert and sober when using this product! Never centered and secured with a load restraint device. -
Page 5: Maintenance
1 turn. This will help prevent rust and corrosion to those critical surfaces. Cleaning unit pump piston and ram for signs of rust or corrosion. Clean as needed and wipe Note: TROUBLESHOOTING Symptom Possible Causes Corrective Action lift ATD Tools Tech. Service after unloading... -
Page 6: Replacement Parts
REPLACEMENT PARTS refer to the drawing when ordering parts. Not all components of the replacement items, are illustrated as a convenient reference of location and position in the Model: ATD-7227A Item Description Item Description Front Caster Snap pin Spring asher... - Page 7 THIS WARRANTY AND CONFIRMED RECEIPT(S) SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES _______________________________________ ________________________________________ provided in lieu of all other warranties, express or implied. All other warranties, including implied warranties and warranties of...
- Page 8 Hydraulic Wheel Dolly Operating Instructions & Parts Manual Model Number Capacity ATD-7227 3/4 Ton (1500 lbs.) WARNING: This product may contain chemicals, including lead, known to the State of California to cause cancer, birth defects or other reproductive harm. Wash hands after handling. Printed In China ATD7227_rev_0417...
-
Page 9: Product Description
PRODUCT DESCRIPTION ATD Tools Wheel Dolly is designed to facilitate the removal and installation of pneumatic tires and wheel assemblies on trucks, buses and trailers. It is a labor saving device useful in auto shops, bus barns and fleet service. -
Page 10: Before Use
BEFORE USE WARNING 1. Inspect before each use. Do not use if bent, broken, leaking or cracked components are noted. Ensure that Read and understand all warnings and instructional casters, rollers and lifting arms move freely. Check material provided on and with this product before use. and tighten any loose assemblies. -
Page 11: How To Use
HOW TO USE MAINTENANCE 1. Set emergency brake, chock tires of diagonally Important: Use only a good grade hydraulic jack oil. opposed wheel(s) in both directions AND take every Avoid mixing different types of fluid and NEVER use precaution necessary to ensure set up is stable and brake fluid, turbine oil, transmission fluid, motor oil or prevent inadvertent vehicle movement. - Page 12 TROUBLESHOOTING Symptom Possible Causes Corrective Action Release valve not tightly closed Ensure release valve tightly closed Hydraulic unit will not lift load Overload condition Remedy overload condition Release valve not tightly closed Ensure release valve tightly closed Hydraulic unit bleeds off after Overload condition Remedy overload condition lift...
- Page 13 REPLACEMENT PARTS Available Parts: Please refer to the Parts drawing when ordering parts. Not all components of the dolly are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. When ordering parts, give model number, part number and description below. Contact your distributor for current pricing. Model ATD-7227 Ref # Part #...
