Summary of Contents for Maxima Advanced Solutions P-309

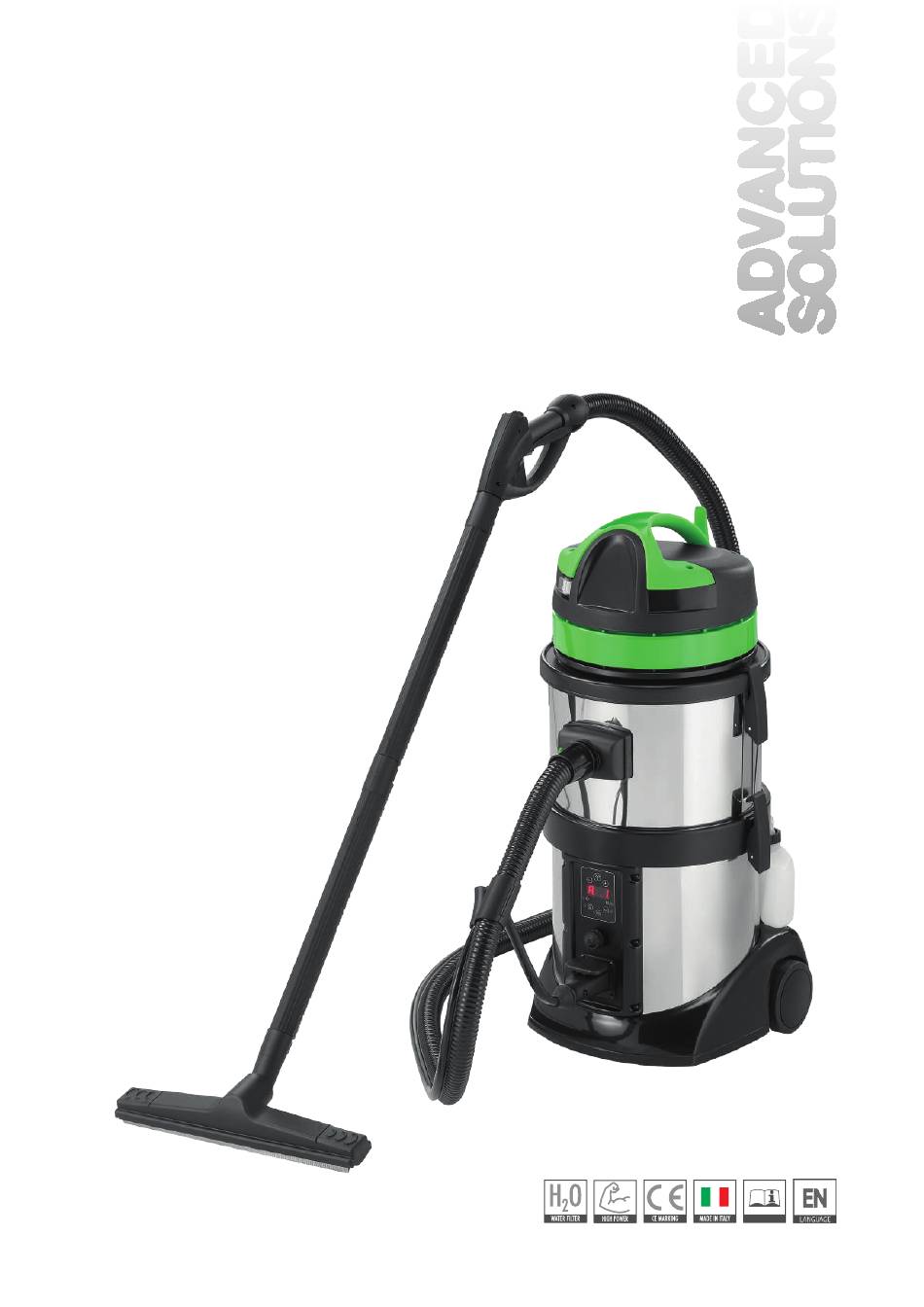

- Page 1 P-309 USE MANUAL ISTRUCTION...
-
Page 2: Safety Rules And Cautions
SAFETY RULES AND CAUTIONS • The plug must be removed from the socket-outlet before cleaning or maintaining the appliance and after use. • The appliance shall not be left unattended while it is connected to the supply mains. • Do not use the machine without the lower drum. •... -
Page 3: Table Of Contents
GENERAL CONTENTS DESCRIPTION OF THE MACHINE ......................PAG. 01 MACHINE OPERATIONS..........................PAG. 02 STEP: VACUUM CLEANER LOWER DRUM FILLING ................... PAG. 02 STEP: WATER TANK FILLING ..........................PAG. 02 STEP: TURNING ON ............................PAG. 03 STEP: HOSE CONNECTION ..........................PAG. 03 STEP: ACCESSORY STARTING ..........................PAG. 04 STEP: ACCESSORY STARTING .......................... -
Page 4: Description Of The Machine
DESCRIPTION OF THE MACHINE Front Part Upper cover Aspirator switch Closing Hook Suction sleeve Lower locking Hooks Steam generator Command display Steam adjusting knob Steam plug Trolley Rear Part Cable reel Vacuum cleaner cable Lower aspirator shaft Water level sensor connector Water tank cap Electrical socket for... -
Page 5: Machine Operations
MACHINE OPERATION STEP 1: VACUUM CLEANER LOWER DRUM FILLING • Disconnect the power cord of the vacuum cleaner from the 220V socket of the machine (fig. 1) • Unhook the vacuum cleaner's locking hooks (fig.2); • Lift the vacuum cleaner's upper cover (fig.2); FIG.1 •... -
Page 6: Rd Step: Turning On
STEP 4: TURNING ON • Connect the power cord of the vacuum cleaner to the machine (fig. 1) • Connect the power cable of the machine to a 220 Volts -16 A socket equipped with an earthed socket. FIG.7 • Set the vacuum cleaner switch to "1"... -
Page 7: Th Step: Accessory Starting
STEP 5: HOSE CONNECTION • To connect the hose, move upwards the door covering the plug (fig.9), insert the plug and close the door by making sure the pawl is into its proper seat. • To connect the suction nozzle (Fig. 10), push the green slider FIG.9 toward the machine's outer side while inserting the suction hose. -
Page 8: Accessories Supplied With The Machine
ACCESSORIES SUPPLIED WITH THE MACHINE 1. HANDLE WITH HOSE A. Suction button B. Steam button C. Steam button lock D. Handle E. Suction Nozzle F. Steam plug MAINTENANCE OF THE HOSE After every use we recommend rinsing the hose by sucking one/two litres of water from a basin to prevent the dirt from settling on the internal walls. -
Page 9: 150 Mm. Nozzle
4. 150 MM. NOZZLE It is a brush on which the following fittings can be assembled: 4A. WINDOW CLEANER FITTING Ideal to clean “English” windows. For a correct use we recommend warming the accessory by keeping the steam push button pressed for some seconds and steaming in the air. -
Page 10: Routing Maintenance
ROUTINE MAINTENANCE CLEANING THE FILTERS The constant and correct cleaning of the filters helps to keep the appliance clean and in perfect efficiency. Observe the following instructions: • Disconnect the power cord of the vacuum cleaner from the machine's 220V socket; •... -
Page 11: Optional
OPTIONAL 1. KIT SANITATION MAXI Equipped with: -5m flexible steam hose -aluminum steam extensions -steam mop base with joint -ultra microfiber mop 2. TURBOVAPOR Excellent for all types of floors, both dry and steam use, it is a vacuum- steam electric nozzle, battery powered with interchangeable rollers. 3. -
Page 12: Troubleshooting
TROUBLESHOOTING Sometimes problems arise from causes which can be easily removed by carrying out simple checks. PROB LEM CAUS E S OLUTI ON · Clean the filter · The filter is dirty or clogged · Disconnect the hose and remove dirt Insufficient suction ·... -
Page 13: Warranty And Technical Service
WARRANTY AND TECHNICAL SERVICE TECHNICAL SPECIFICATIONS P-306 P-309 Dimensions 45X40X83 h 45X40X83 h Weight 19 Kg 20 Kg Voltage 220 - 240 Hz 220 - 240 Hz Frequency 50 - 60 Hz 50 - 60 Hz Boiler Volume 2,0 L 2,4 L Boiler Refill System automatic... -
Page 14: Spare O-Ring
SPARE O-RING... - Page 16 The entire range is exclusively made in Italy, in full respect of EC directives, with Italian components, to ensure maximum reliability, efficiency and durability. Genuine Made in Italy.
