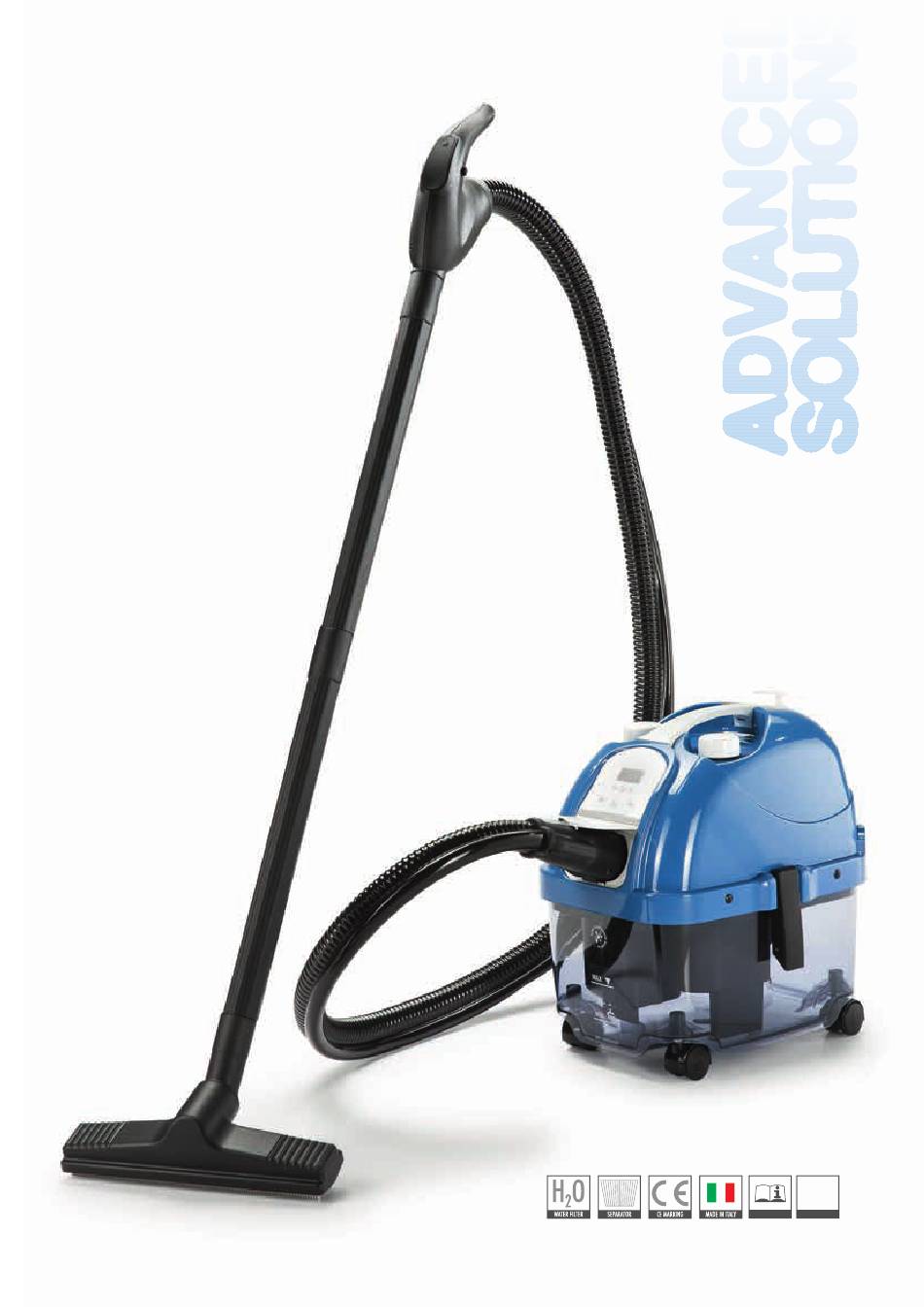

- Page 1 U S E M A N U A L HERA PLUS ISTRUCTION LANGUAGE...
-
Page 3: Table Of Contents
GENERAL CONTENTS DESCRIPTION OF THE MACHINE ......................PAG. 02 MACHINE OPERATIONS..........................PAG. 03 STEP: LOWER DRUM FILLING ..........................PAG. 03 STEP: WATER TANK FILLING ..........................PAG. 03 STEP: FILLING THE DETERGENT TANK ......................PAG. 03 STEP: TURNING ON ............................PAG. 04 STEP: HOSE CONNECTION ..........................PAG. 05 STEP: ACCESSORY STARTING .......................... -
Page 4: Description Of The Machine
DESCRIPTION OF THE MACHINE Front part Opening to insert the hoses Control panel Steam adjusting knob Water tank plug Upper cover Handle Lower drum Closing hook Wheels Rear part 10. Filter cover 11. Feeding cable 12. Detergent tank plug and cable reel... -
Page 5: Machine Operations
MACHINE OPERATION STEP: LOWER DRUM FILLING • Unhook the closing devices (fig.1); • Lift the upper cover (fig.2); • Fill the lower drum with about 2 litres of clean water (fig.3) • Reposition the cover by paying attention to the drum level indicator. -
Page 6: Step: Turning On
STEP: TURNING ON • Connect the supply cable to a 220V plug provided with earth. Three red lights appear on display “e”. • For the vacuum cleaner function: press push button “B” and ad just the power by means of keys +/-. •... -
Page 7: Step: Hose Connection
STEP: HOSE CONNECTION • To connect the hose, move upwards the door covering the plug (fig.10), insert the plug and close the door by making sure the pawl is into its proper seat. FIG.10 STEP: ACCESSORY STARTING • All the accessories carry out the double function of suction and steam. -
Page 8: Accessories Equipped With Machine
ACCESSORIES SUPPLIED WITH THE MACHINE 1. HANDLE WITH HOSE A. Plug. B. Hose. C. Handle. d. Steam push button. e. Suction push button. MAINTENANCE OF THE HOSE After every use we recommend rinsing the hose by sucking one/ two litres of water from a basin to prevent the dirt from settling on the internal walls. -
Page 9: Window Cleaner
3. WINDOW CLEANER The window cleaner is particularly suitable for the cleaning of windows and mirrors. For the use refer to point 4A. NOTE: in winter the windows must be previously warmed by using the accessory at a distance of 10/15 cm. before starting cleaning. 4. -
Page 10: Routing Maintenance
ROUTINE MAINTENANCE DETERGENT PUMP If the detergent function is not to be used within a short time and or/ the machine is not to be used for some days, we recommend rinsing the detergent pump by doing as follows: • Empty the detergent tank using the “cold wash”... -
Page 11: Optional
1. IRON Open the door located in the front part of the machine.Insert • the iron pin into the plug of the device. • Close the door making sure the pin has entered into the special housing. • Adjust the thermostat on the desired position according to the fabrics. -
Page 12: Safety Rules And Cautions
SAFETY RULES AND CAUTIONS • Do not use the machine without the lower drum (7). • Do not fill the boiler tank with detergent or disinfecting products. (use only water). • Do not turn the device upside down (the solenoid valve may get clogged). •... -
Page 13: Troubleshooting
TROUBLESHOOTING Sometimes problems arise from causes which can be easily removed by carrying out simple checks. PRO BLEM CAUSE SO L UTI O N · The plastic filter of the · Clean the filter separator is dirty or clogged · Increase power Insufficient suction ·... -
Page 14: After-Sales Assistance
WARRANTY AND TECHNICAL SERVICE TECHNICAL SHEET SAFETY • Dimension (cm.) 37 x 30 x 41h • Device stopping the circuit at tank and boiler level • Voltage 220-240 Volt 50-60 Hz. • Thermostat • Pressure 600 kPa • Thermofuse • Resistance 1900 Watt •... -
Page 15: Spare O-Ring
SPARE O-RING...
