GENERAL CONTENTS DESCRIPTION OF THE MACHINE ......................page 02 MACHINE OPERATIONS..........................page 03 STep: TaNK FILLINg ............................page 03 STep: LOWeR DRUM FILLINg ..........................page 03 STep: TURNINg ON ............................page 04 STep: HOSe CONNeCTION ..........................page 04 STep: aCCeSSORY STaRTINg ..........................page 05 ACCESSORIES EQUIPPED WITH MACHINE ....................page 06 HaNDLe WITH HOSe ............................ page 06 MULTIFUNCTION BRUSH ..........................page 06 FITTINg FOR LIQUID SUCTION ........................page 06 2B FITTINg FOR CaRpeTS ..........................page 06 UNIVeRSaL FITTINg ............................. -
Page 4: Description Of The Machine

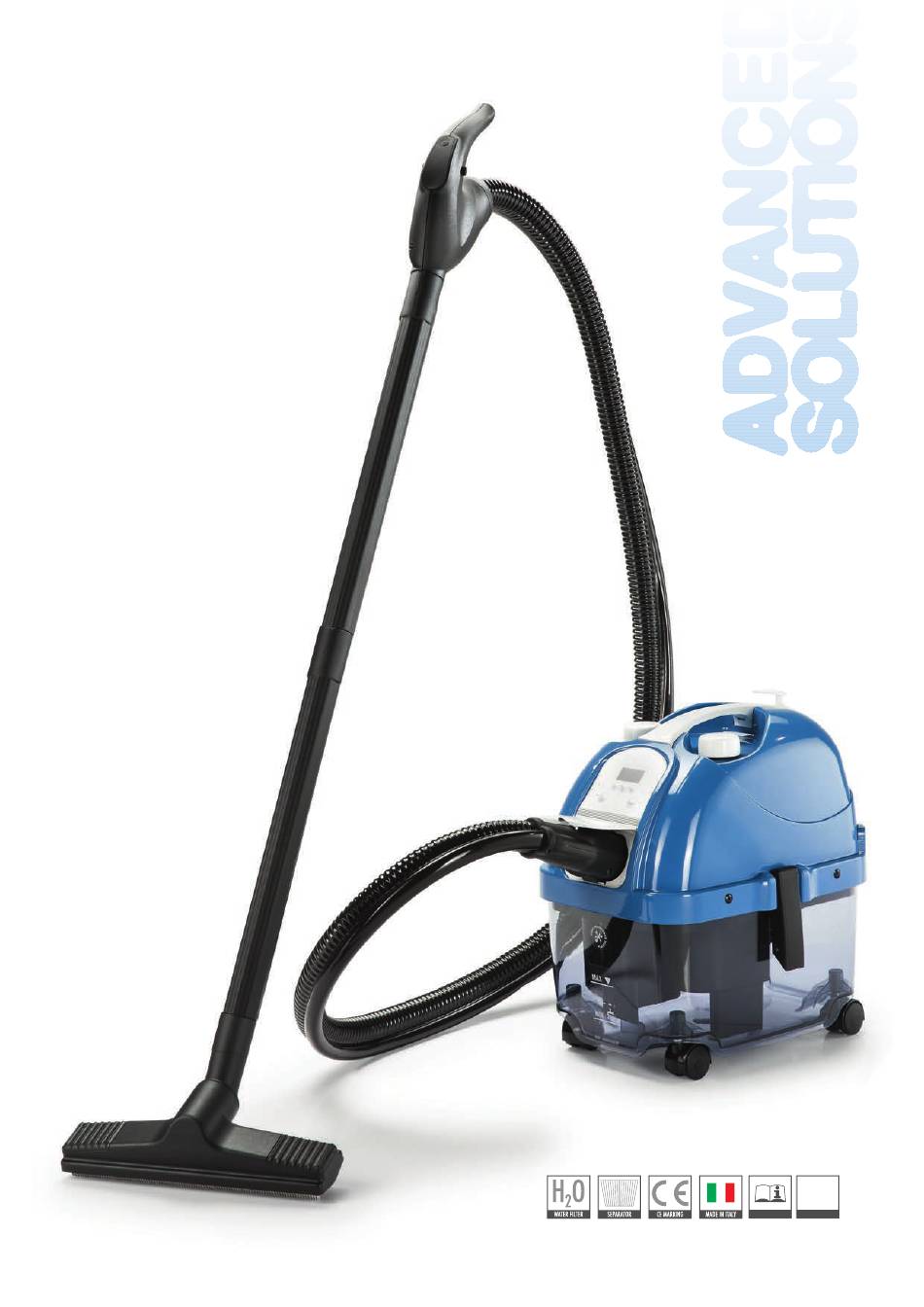

DESCRIPTION OF THE MACHINE parte Anteriore 1. Opening to insert the hoses 2. Control panel 3. Steam adjusting knob 4. Water tank plug 5. Upper cover 6. Handle 7. Lower drum 8. Closing hook 9. Wheels parte posteriore 10. Filter cover 11. Feeding cable 12. Cable reel... -
Page 5: Machine Operations
MACHINE OPERATION StEp: LoWER dRUM fILLING • Unhook the closing devices (fig.1); • Lift the upper cover (fig.2); • Fill the lower drum with about 2 litres of clean water (fig.3) • Reposition the cover by paying attention to the drum level indicator. It must be is in the front part (fig.4) fIG.2 fIG.2 fIG.1 fIG.1 IMpoRtANt: to avoid motor damages during the suction check that the liquid contained in the drum does not exceed the level indicated on the drum itself (MAX) (fig.4) otherwise we recommend emptying the drum. -
Page 6: Step: Turning On
StEp: tURNING oN • Connect the supply cable to a 220V plug provided with earth. Three red lights appear on display “e”. • For the vacuum cleaner function: press push button “B” and ad just the power by means of keys +/-. • For the steam function: press push button “a”, after about 5 minutes pilot light “d” lights up and the device reaches the optimum working temperature and pressure. The steam must be adjusted by means of the knob (fig.7) according to the surface to be treated. -
Page 7: Step: Accessory Starting
StEp: AccESSoRy StARtING • all the accessories carry out the double function of suction and steam. They fit in directly on the handle or on the extensions. • Move the ring nut to open position and keep it open (fig.9). • Fit in the extension hose or the accessory (fig.10). fIG. 9 fIG.10 • Move the ring nut to close position. Release the spring wheel for the hose extension. • press the button located on the start handle once and then once again to stop suction (fig.11). • To regulate the suction motor power, keep the button pressed down during use (fig.11); every 4 seconds the power will increase until it reaches maximum power (lev. 5) and then it will restart from the minimum power (lev. 3). Once it... -
Page 8: Accessories Equipped With Machine
ACCESSORIES SUPPLIED WITH THE MACHINE 1. hANdLE WIth hoSE a. plug. B. Hose. C. Handle. d. Steam push button. e. Suction push button. MAINTENANCE OF THE HOSE after every use we recommend rinsing the hose by sucking one/ two litres of water from a basin to prevent the dirt from settling on the internal walls. Then, hook it, so that it can get dry. 2. MULtIfUNctIoN bRUSh It is equipped by an articulation which allows it to turn 360°. This brush can clean areas difficult to be reached (under the furniture and the beds, on high cupboards, etc.) and various kind of floor, carpets, etc. To use the desired fitting on the brush, just insert it and by keeping it pressed, move the orange sliders inwards (fig. 2). To close close... -
Page 9: Window Cleaner
3. WINdoW cLEANER The window cleaner is particularly suitable for the cleaning of windows and mirrors. For the use refer to point 4a. NotE: in winter the windows must be previously warmed by using the accessory at a distance of 10/15 cm. before starting cleaning. 4. 150 MM. NozzLE It is a brush on which the following fittings can be assembled: 4A. -
Page 10: Routing Maintenance
ROUTINE MAINTENANCE MotoR SUppoRt (d) It is located under the upper cover. For the cleaning at first we recommend disconnecting the device. Use only a wet cloth. Do not use direct water jets (i.e.: shower, tap, etc.). thE MAchINE cAN bE tIppEd to oNE SIdE oNLy foR thIS fUNctIoN (do Not ovERtURN thE MAchINE foR ANy REASoN!) fILtER ANd SEpARAtoR Once the filter is removed, you can see the “molecular separator”... -
Page 11: Optional
OPTIONAL: 1. IRON • Open the door located in the front part of the machine.Insert the iron pin into the plug of the device. • Close the door making sure the pin has entered into the special housing. adjust the thermostat on the desired position according to the • fabrics. Turn on the push button (aCC) of the control panel. • Wait for a few seconds, till the iron is warm. • By pressing the push button on the handle of the iron the steam • is delivered; adjust pressure depending on the fabric. • To remove the pin from the unit, at first open the door and then pull out the plug. 2. eLeCTRIC CaRpeT CLeaNeR Very good to suck thoroughly carpets, fitted carpets, mattresses etc. 3. TURBO CaRpeT CLeaNeR Very good to suck thoroughly carpets, fitted carpets, mattresses etc. without using any electricity. 4. VapORIZINg TURBO BRUSH To wash, brush and steam dry rugs, carpets, upholstery etc. 5. TRaNSpaReNT NOZZLe To wash rugs, carpets, upholstered ... -
Page 12: Safety Rules And Cautions
SAFETY RULES ANd CAUTIONS • Do not use the machine without the lower drum (7). • Do not fill the boiler tank with detergent or disinfecting products (use only water). • Do not turn the device upside down (the solenoid valve may get clogged). • Do not suck flammable materials, explosives, concrete, ash, gypsum or any other material which might create a dangerous mixture. • If substances such as: wine, alcohol, ammonia, detergents or corrosive products are sucked, the lower drum might be damaged. We recommend empting and rinsing it well. • Make sure the surfaces and the parts to be cleaned can withstand the steam (at the beginning we recommend using the steam on small surfaces). • Do not use steam on velvet, satin and leather. • Before connecting your device, check that the voltage corresponds to the one written on the technical plate (220/240V). -
Page 13: Troubleshooting
TROUBLESHOOTING Sometimes problems arise from causes which can be easily removed by carrying out simple checks. pRo b LEM cAUS E So L UtIo N · The plastic filter of the · Clean the filter separator is dirty or clogged · Increase power Insufficient suction · power is too low · Disconnect the hose and remove dirt · The hose is clogged · empty the drum and restore the · The lower drum is full minimum level with clean water empty the drum and restore the The motor is noisy The lower drum is full minimum level with clean water When the boiler is ready, steam adjustment is low Increase the output power... -
Page 14: After-Sales Assistance
WARRANTY AND TECHNICAL SERvICE TECHNICAL SHEET SAFETY • Dimension (cm.) 37 x 30 x 41h • Device stopping the circuit at tank and boiler level • Voltage 220-240 Volt 50-60 Hz. • Thermostat • pressure 600 kpa • Thermofuse • Resistance 1900 Watt • pressure switch • Turbine engine 1200 Watt • Safety valve 8 bar • Sound Level Lpa 81,8 dBa - LWa 100,12 dBa • Low voltage contol • Operation temperature: +5°C / +30°C • appliance complying with the low tension directive 2006/95/Ce • Stainless steel boiler • product norms eN 60335-1, eN 60335-2-2, eN 60335-2-54... -
Page 15: Spare O-Ring
SPARE O-RING...
