INSTRUCTION

MANUAL

SNOEZELEN

DOUBLE BUBBLE BONANZA™

23483

Table of Contents

Need help?

Do you have a question about the SNOEZELEN DOUBLE BUBBLE BONANZA and is the answer not in the manual?

Questions and answers

Summary of Contents for Rompa SNOEZELEN DOUBLE BUBBLE BONANZA

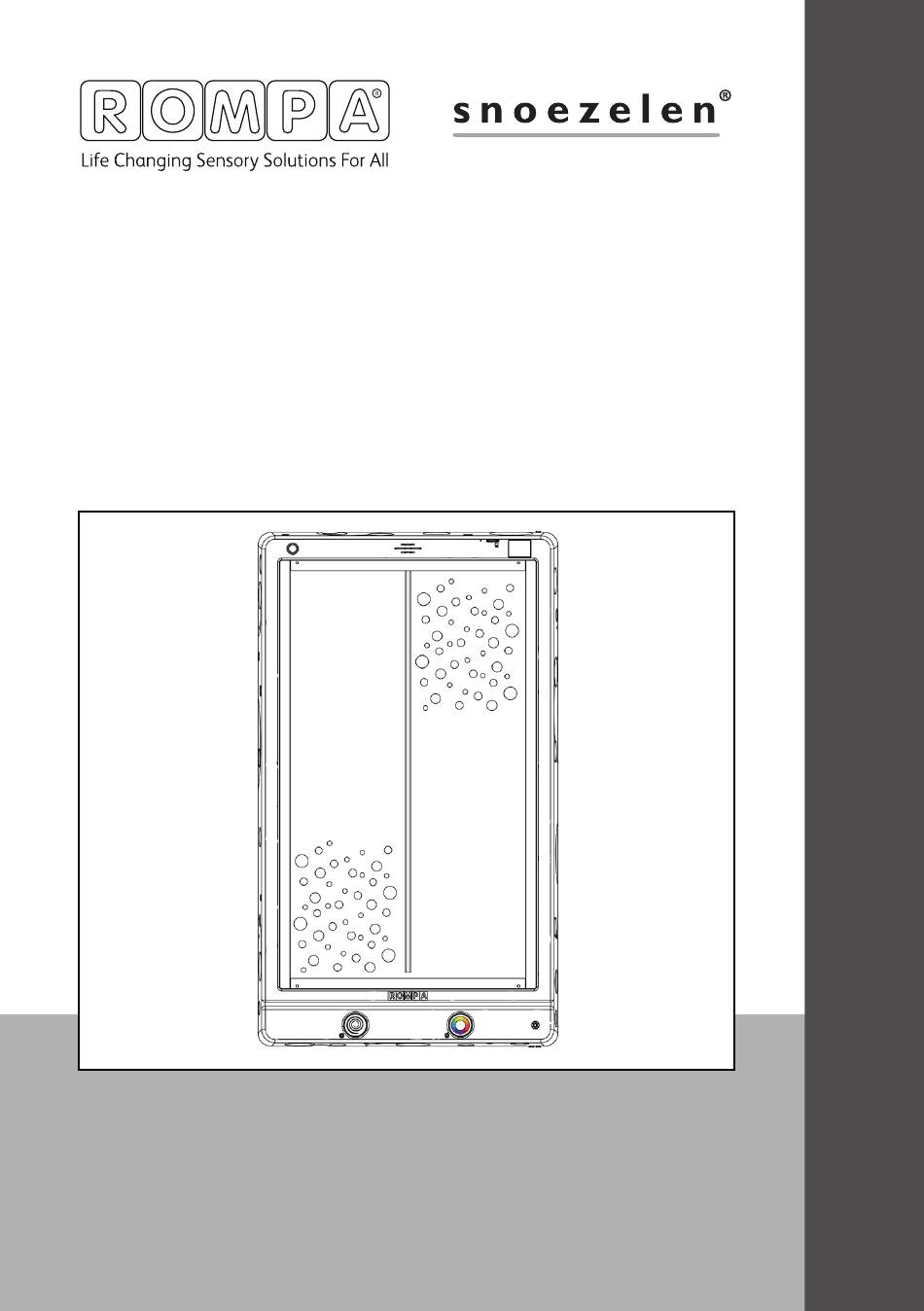

Page 1 INSTRUCTION MANUAL SNOEZELEN DOUBLE BUBBLE BONANZA™ ® 23483...
Page 2 CONTENTS...
Page 3: Table Of Contents
CONTENTS ABOUT THE PRODUCT �� 4 Product Description ��5 User Benefits ��5 Product Compatibility ��5 TECHNICAL SPECIFICATION �� 6 Included Parts��7 Technical Specification ��7 SAFETY AND CARE �� 8 Product Safety and Care Instructions ��9 How to fill and drain �� 10 ASSEMBLY &...
Page 4: About The Product
ABOUT THE PRODUCT...
Page 5: Product Description
18870 Talking Cube 20402 Mini Talking Cube 21917 WiFi Microphone 22871 Colour Command Centre ™ 21918 WiFi Override Transmitter 21728 Rompa WiFi App Control Box ® 22716 Rompa WiFi Colour Control Bumpas – set of 8 ® 22867 Wireless Colour Controller Cushioned Wall Mat...
Page 6: Technical Specification
TECHNICAL SPECIFICATION...
Page 7: Included Parts
Included Parts The Snoezelen Double Bubble Bonanza comes with all the necessary components to get you ® ™ started right out of the box. Each package includes the following items to ensure a seamless setup and enjoyable experience: • 1 x Snoezelen Double Bubble Bonanza ®...
Page 8: Safety And Care
SAFETY AND CARE...
Page 9: Product Safety And Care Instructions
Disconnect any cables when installing or moving the product. Pulling on the cables can cause premature wear or damage to the product and/or accessories. • If the product generates abnormal sounds, a burning smell, or smoke, disconnect it immediately and contact Rompa customer services. ® •...
Page 10: How To Fill And Drain
How to fill & drain the Double Bubble Bonanza panel Before you begin: • To fill panel’s tank with water you require a Rapid Water Change Pump (20601-SPECIAL). • To drain the panel’s tank of water you require the draining/filling tube that is in the box with the panel and an empty bucket to hand.
Page 11 NOTE: If you do slightly overfill the panel by putting too much water in during the filling process which has caused the water level to go above the fill line, please use the drainage tube provided with the panel and a bucket to empty some of the water out of the tank to ensure the water level is no higher than that indicated on the panel.
Page 12 10 cm (L) 67cm (W) Side view Front view...
Page 13: Assembly & Installation Guide
ASSEMBLY & INSTALLATION GUIDE...
Page 14: Product Assembly Guide/Installation
Due to the weight of the product, it must only be installed onto walls of appropriate construction and with the appropriate fixings. This product is not suitable for fitting onto the Rompa Panel Porter (22879). ® Rompa has included a handy panel mounting ®...
Page 15 Hold the panel where you would like it to be mounted ensuring it is level. Whilst in position mark where the centre of the bracket mounting holes are on the wall. Do this for all 4x bracket mounting holes. Place the panel safely to the side� 4�...
Page 16 • Ensure any packaging is disposed of correctly. Plastic sheets can be a suffocation risk. • Ensure the panel is mounted by suitably competent or qualified people. Improper mounting could result in injury. Care should be taken to the type of wall you are mounting the panel to and the appropriate fixings which should be used.
Page 17 The following six panels have the power supply integrated into the panel’s chassis: • Snoezelen Multifinity Explorer – Stock code: 24513 ® ™ • Snoezelen ColourCatch Combo – Stock code: 24511 ® ™ • Snoezelen Colour Command Centre – Stock code: 24515 ®...
Page 18 How to identify the version number of the panel On the back of the panel’s chassis is a serial number and version number of the specific panel. • The version number is indicated by the blue arrow below. • The serial number is indicated by the red arrow below. Snoezelen Double Bubble Bonanza version 3 comes with a large grey power supply as seen...
Page 19 The second power adapter that is required for version 4 of the panel is a 15V power supply and this powers the pumps for the panel. The second power adapter can be seen in the photo below: Both power supplies are required for the panel to operate. Version 4 is suitable for all markets.
Page 20: Troubleshooting
Turn the panel off and wait 10 seconds. Turn the panel back on. This will reset the panel and revert the 1st mode shown on Touch Screen. If troubleshooting does not solve the issue, please contact Rompa Customer Services +44 (0) ®...
Page 21 If either side is not producing bubbles, then the pump could be faulty. In this scenario, please contact Rompa Customer Services +44 (0) 1246 211 777 ®...
Page 22 Power on the panel using the power button. Using the arrow buttons navigate to the media screen and press the play button. The MP3 audio files on the SD card should play out of the panel’s speakers. Note: It is important in order to be able to play MP3 audio files via SD card that the panel is powered on either with the SD card inserted into the panel’s SD card slot or that the panel is powered off and back on again with the SD card inserted into the SD card slot.
Page 23: User Guide
USER GUIDE...
Page 24 Back view Modes Overview The Snoezelen Double Bubble Bonanza features 3 primary modes which can be selected via the ® ™ touch screen and an additional mode is available when one or two microphones are plugged into the ¼”/6.35mm microphone input. To change modes press the arrows on the touch screen until it displays a blue box with a number in it.
Page 25 next one. Music and sound effects are paired with each pattern for a more stimulating multisensory experience. This mode functions the same as mode one, with the addition of music. Microphone mode: This mode cannot be accessed via the touch screen. To access this mode, plug a microphone into the ¼”/6.35mm microphone input.
Page 26 Volume • Pressing the ‘+’ will increase the volume and pressing ‘-‘ will reduce the volume. • Press the red forward or back buttons to cycle through the other menu options. Sound Effects • Pressing the light green sound effect button will turn the sound effects on or off. Sound effect refers to the sounds made when the user activates the illuminated push buttons.
Page 27 Press the red forward or back buttons to cycle through the other menu options. Wireless Pressing the purple wireless button will cycle the panel wireless on or off. With wireless turned on the panel will respond to other Rompa compatible wireless products. With wireless turned off it ®...
Page 28 Pattern The panel has 3 patterns which can be selected via the ‘Pattern’ illuminated push button or an external switch plugged into the ‘Pattern’ ¼”/6.35mm input jack. Colour The panel has 14 colours which can be selected via the ‘Colour’ illuminated push button or an external switch plugged into the ‘Colour’...
Page 29 The Simple and Deluxe controllers can control the panel. Pressing the colour buttons on one of these supported wireless controllers turns both chambers of the panel to the corresponding colour selected. The panel will remain this colour unless a new colour is selected via the panel, a Rompa ®...
Page 30 The user can pause the pump and lighting while still playing the music tunes. Other Wireless Products Selecting a colour changes all the LEDs in array to the corresponding colour selected. The panel will remain this colour unless a new colour is selected via the panel, a Rompa wireless controller ®...
Page 31: Features
FEATURES...
Page 32 Power button Touch screen for mode selection Chamber one Chamber two Interactive buttons...
Page 33: Notes
NOTES...
Page 36 Rompa Limited, Goyt Side Road, ® Chesterfield, S40 2PH customer.service@rompa.com www.rompa.com 23483_170225...
