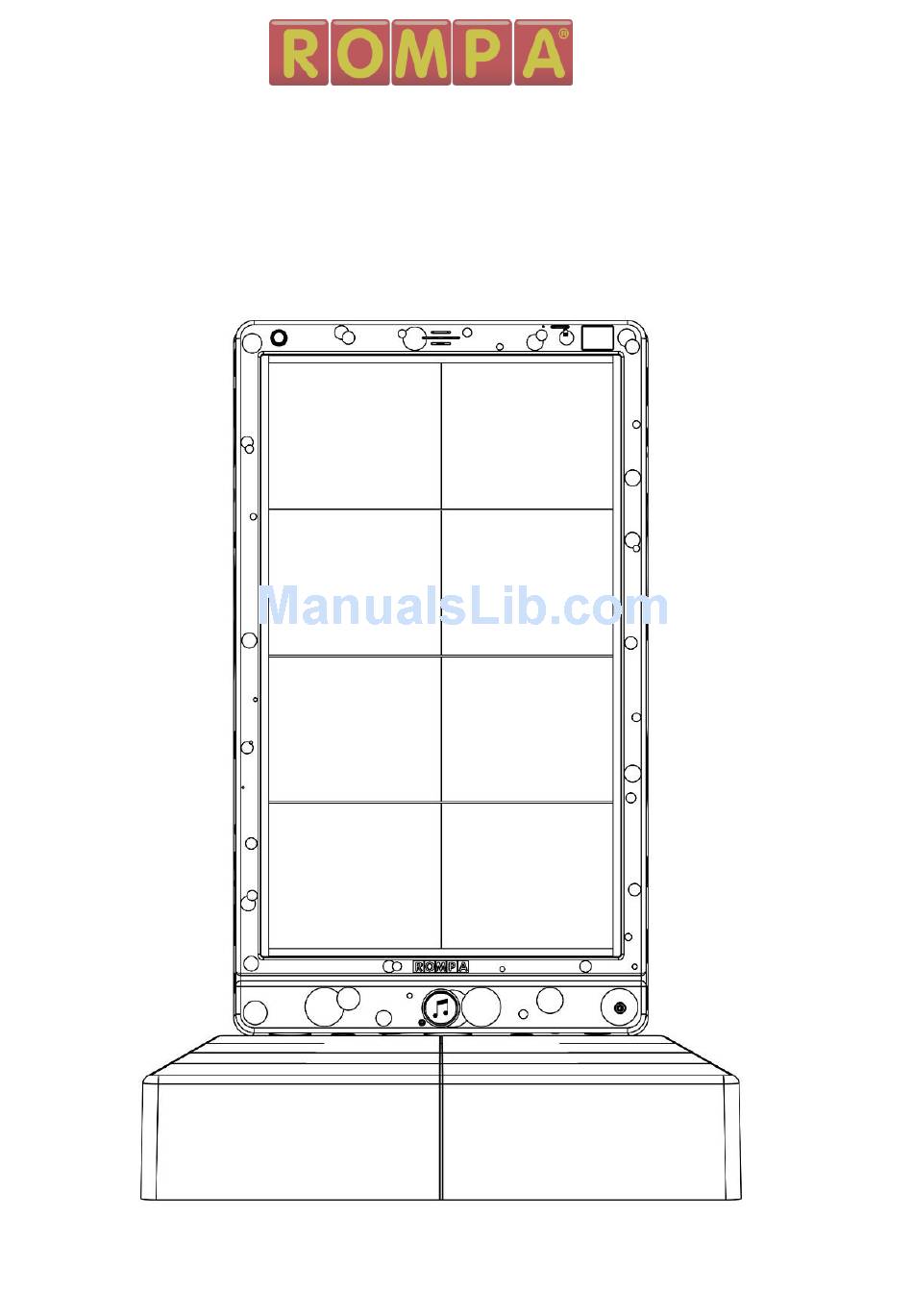

- Page 1 Hip Hop Activity Box™ Instruction Manual Hip Hop Activity Box™ 22875, March 2018 Copyright ROMPA®Ltd...
-
Page 2: Table Of Contents
Contents At a Glance Panel Overview Colour Description Contents Technical Specification What’s in the Box Compatible Rompa® Products Operation Modes Touch Screen Illuminated Push Buttons External Switches Microphone Input Themes Rompa® Wireless Operation Installation Installing Wall Mount Brackets & Panel... -
Page 3: At A Glance
At a Glance Panel Overview... -
Page 5: Colour
Colour The Panel is available in 4 colours: Black, White, Cream and Blue Description Play games, create music and trigger shows of light and colour all using the soft play floor pad. The panel is packed with games, music and sound effects for endless hours of fun and learning. Encourage movement, creativity and composition, listening skills, meaningful activity and an understanding of cause and effect. - Page 6 Dimensions (All dimensions in mm)
- Page 7 Contents x1 Hip Hop Activity Box™ Panel x1 Hip Hop Activity Box™ Floor Pad x2 Wall Mounting Bracket x4 M4 Screws x1 UK Mains Lead x1 US Mains Lead x1 EU Mains Lead...
-
Page 8: Compatible Rompa® Products
21728 WiFi App Control Box Operation Modes The mode dictates how the panel behaves. The Hip Hop Activity Box™ has 8 modes which can be selected via the touch screen or by plugging in a microphone into the ¼” microphone input:... - Page 9 sound effect twice in a row the user must step off and back onto the floor pad. Mode 2: Multiple Lights/ Multiple Notes When a colour on the floor pad is selected the corresponding square on panel screen will light up the same colour and play an associated sound effect.
- Page 10 of lights shown by the panel. An auditory and visual reward is played when the game ends and the score is displayed via the touch screen. To trigger the same colour twice in a row the user must step off and back onto the floor pad.
-
Page 11: Touch Screen
been detected. The mode and brightness of the panel cannot be adjusted via the touchscreen whilst a microphone is plugged in. Use the floor pad to change the colour of the panel. The brightness of the panel is then controlled by the volume of sounds made. The louder the sound the brighter the panel will go. - Page 12 Mode Pressing the light blue mode button to cycle through the modes of the panel. Press the Red forward or back buttons to cycle through the other menu options. Volume Pressing the ‘+’ will increase the volume and pressing ‘-‘ will reduce the volume.
- Page 13 Wireless Pressing the purple Wireless button will cycle the panel Wireless on or off. With Wireless turned on the panel will respond to other Rompa® compatible wireless products. With wireless turned off it will ignore Rompa® compatible wireless products.
-
Page 14: Illuminated Push Buttons
Illuminated Push Buttons The Hip Hop Activity Box™ has 1 illuminated push button so the user can control select the theme of SFX associated with the panel. When pressed each button will flash and a unique sound effect will be... -
Page 15: External Switches
triggered. Sound effects can be turned off via the touch screen. Illuminated buttons can also be locked via the touch screen if required. The brightness of the illuminated buttons is reduced and the buttons are unresponsive when locked. Theme The panel has 7 themes which can be selected via the ‘Theme’... -
Page 16: Microphone Input
Microphone Input The panel has 1 microphone input. To use a microphone with the panel simply plug a microphone into the ¼” jack located in the bottom right of the panel. When the microphone is inserted the panel will automatically detect its presence and turn to ‘Microphone Mode’. The panel also acts as a karaoke and sounds spoken through the microphone can be heard through the integrated speaker. -
Page 17: Themes
Themes The panel has 7 themes which can be selected via the ‘Theme’ illuminated push button or an external switch plugged into the ‘Theme’ input jack: Piano Guitar Various Instruments Space Music Carnival Animals... -
Page 18: Rompa® Wireless Operation
The panel will remain this colour unless a new colour is selected via the panel or a Rompa® wireless controller or the panel will return to its normal operation by using the floor pad or timing out after 60 seconds. - Page 19 Game Mode It is recommended that only an 8 colour controller is used with game mode as the 8 colours on the controller match the 8 colours on the floor pad. 8 Colour Wireless Controller Simple and Deluxe Pressing the colour buttons acts as pressing the corresponding colour on the floor pad.
-
Page 20: Installation Installing Wall Mount Brackets & Panel
Installation Installing Wall Mount Brackets & Panel Due to the size of the product it is recommended that two people are required to install the product. Recommended Tools Drill Spirit Level Pencil Tape Measure Appropriate Fixings (All dimensions in mm) - Page 21 1. Unscrew the 4x M4 screws which secure the 2x brackets to the panels. The brackets are secured to avoid any damage during transit.
- Page 22 Be sure to place the 4x M4 screws in a safe place as they will be required later. 2. Remove the brackets from the panel by sliding the bracket down and then lift them out of panel. Place the brackets safely to one side as they will be required later.
- Page 23 3. Hold the panel where you would like it to be mounted ensuring it is level. Whilst in position mark where the centre of the bracket mounting holes are on the wall. Do this for all 4x bracket mounting holes. Place the panel safety to the side.
- Page 24 4. Secure both brackets to the wall ensuring the centre of the bracket mounting holes line up with the marks just made ensure the bracket it level when mounting it to the wall. The top bracket mounting holes should line up with the top 2x marks and the bottom bracket mounting holes should line up with the bottom 2x marks.
- Page 25 Please ensure the correct fasteners are used dependant on the construction of wall in question. 5. Clean the wall and brackets from any dust and debris which may have been created whilst mounting the brackets. Insert one side of the floor pad cable into the floor pad and the other into the panel.
-
Page 26: Safety
Pulling of the cables can cause premature wear or damage to the product and/ or accessories. If the product generates abnormal sounds, burning smell or smoke disconnect immediately and contact Rompa® customer services. Do not press and hold the panel push buttons for durations of longer than a minute. -
Page 27: Care And Maintenance
Care and Maintenance Rompa® recommends a soft cloth for dusting and cleaning the panel. Slightly dampening the cloth or use of isopropyl alcohol is recommended for more stubborn stains. Ensure the panel does not become wet. Particular care should be taken around apertures in the chassis and any electronics (touch screen, power button, illuminated push buttons, external switch jacks and microphone input jack). - Page 28 2 and Sound Effects set to on. If troubleshooting does not solve the issue please contact Rompa® Customer Services +44 (0) 1246 211 777 Push Button(s) Ensure panel buttons are not locked via the touch Unresponsive screen.
- Page 29 Hip Hop Activity Box™ 22875, March 2018 Copyright ROMPA®Ltd...
