Door handle (radio) DoorLock-LE – MANUAL | 1
ORDER-CODES:
KXC-LE
DATASHEET KXC-LE
Overview

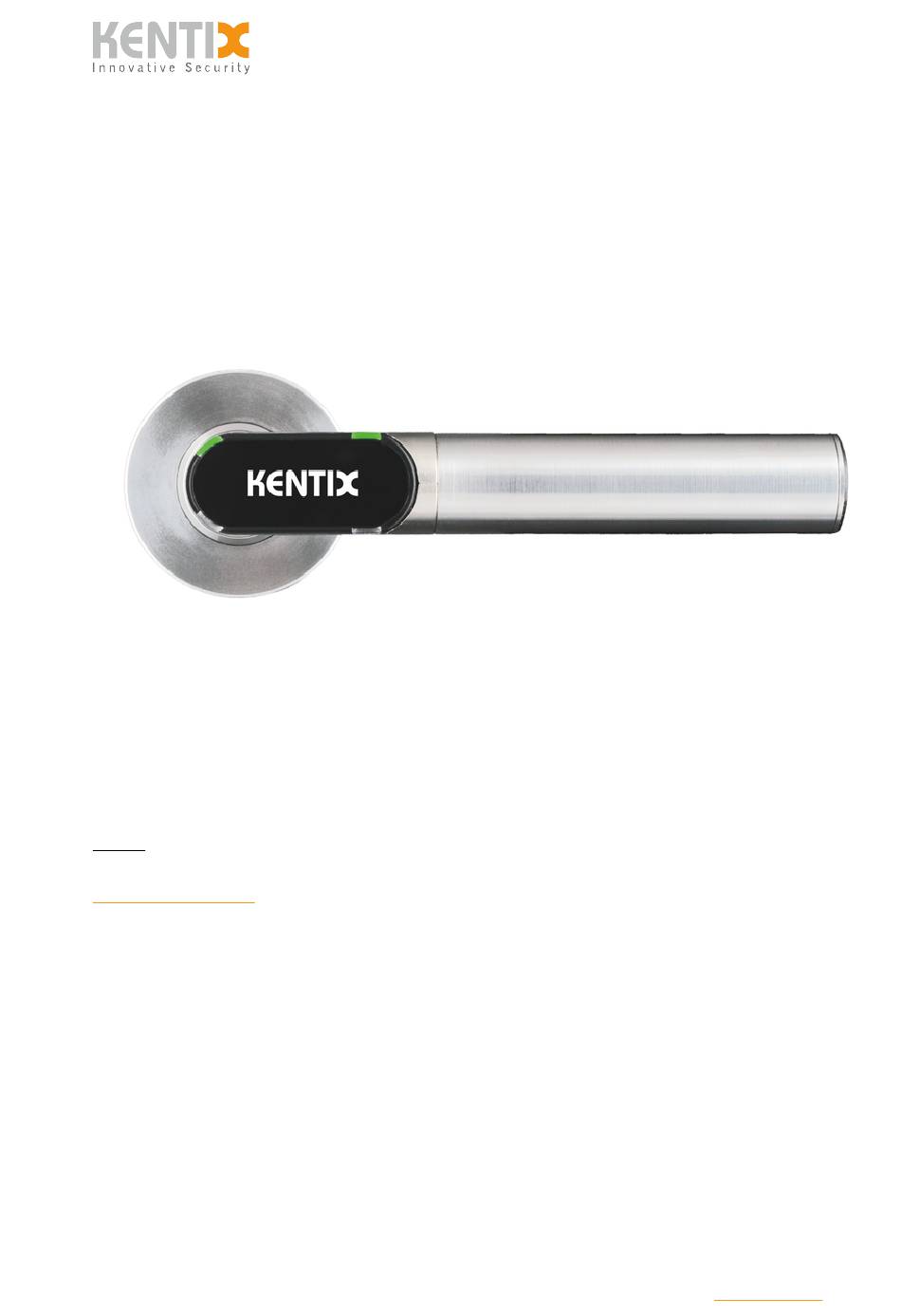

The Kentix DoorLock-LE is a battery operated electronic door handle with radio. The lever handle is
designed for installation in building doors and for opening locks. Depending on the product variant,
the lever handle can be used indoors and outdoors. The electronics are fully integrated in the handle.
RFID transponder carriers with MIFARE®DESFire® can be used as keys.
The electronic door handle is networked by radio with an AccessManager radio. Up to 16 DoorLock
radio components can be taught into one AccessManager radio. The configuration is done via the
integrated web server of the main device (operating mode: Main-Device).
The DoorLock-LE is available in two wireless technologies, namely BLE 2.4GHz and 868MHz.
DoorLock components with different radio frequencies cannot be operated on one AccessManager.
© Kentix GmbH. This file was automatically generated on 2025-01-12 04:24:21. Please visit
docs.kentix.com
for the
latest documentation.
Advertisement
Table of Contents
Related Manuals for Kentix KXC-LE
Summary of Contents for Kentix KXC-LE
- Page 1 DATASHEET KXC-LE Overview The Kentix DoorLock-LE is a battery operated electronic door handle with radio. The lever handle is designed for installation in building doors and for opening locks. Depending on the product variant, the lever handle can be used indoors and outdoors. The electronics are fully integrated in the handle.
-
Page 2: Safety Instructions
Kentix accepts no liability for damage to the equipment or components resulting from incorrect installation. No liability is accepted for incorrectly programmed units. Kentix shall not be liable in the event of malfunctions, damage to property or other damage. Use of the products, transport and storage Protect the device during transport, storage and operation from Protect moisture, dirt and damage. - Page 3 Slide the enclosed battery (type CR123) into the handle or insert it into the battery holder and place the cover on the pusher. Screw the pusher with the supplied Allen key. © Kentix GmbH. This file was automatically generated on 2025-01-12 04:24:21. Please visit docs.kentix.com for the...
-
Page 4: Installation
The square is now firmly connected to the door handle. Put on square Insert the square spindle of the electronic door handle into the square spindle of the lock. © Kentix GmbH. This file was automatically generated on 2025-01-12 04:24:21. Please visit docs.kentix.com for the... - Page 5 © Kentix GmbH. This file was automatically generated on 2025-01-12 04:24:21. Please visit docs.kentix.com for the latest documentation.
- Page 6 Screw in the locking screw on the underside of the rosette and tighten it firmly. Check functionality With the door open, check the functionality and ease of movement of the handle. To do this, hold an © Kentix GmbH. This file was automatically generated on 2025-01-12 04:24:21. Please visit docs.kentix.com for the...
-
Page 7: Battery Warning
Table battery warning Battery change Use the supplied Allen key to countersink the screw on the inside of the door handle. © Kentix GmbH. This file was automatically generated on 2025-01-12 04:24:21. Please visit docs.kentix.com for the latest documentation. - Page 8 In order to guarantee the IP66 protection class of the DoorLock-LE for outdoor use, the seals, consisting of a large sealing ring and a grub screw with sealing ring, must always be replaced each © Kentix GmbH. This file was automatically generated on 2025-01-12 04:24:21. Please visit docs.kentix.com for the latest documentation.
-
Page 9: Maintenance
5 short tones, 2 long tones. Contact 5 short tones, 2 long tones. Contact Coupling error support at support@kentix.com support at support@kentix.com Table signaling © Kentix GmbH. This file was automatically generated on 2025-01-12 04:24:21. Please visit docs.kentix.com for the latest documentation.
