Door knob (radio) DoorLock-DC BASIC – MANUAL | 1
ORDER-CODES:
,
KXC-KN1
KXC-KN2
DATASHEET KXC-KN1, KXC-KN2
Overview

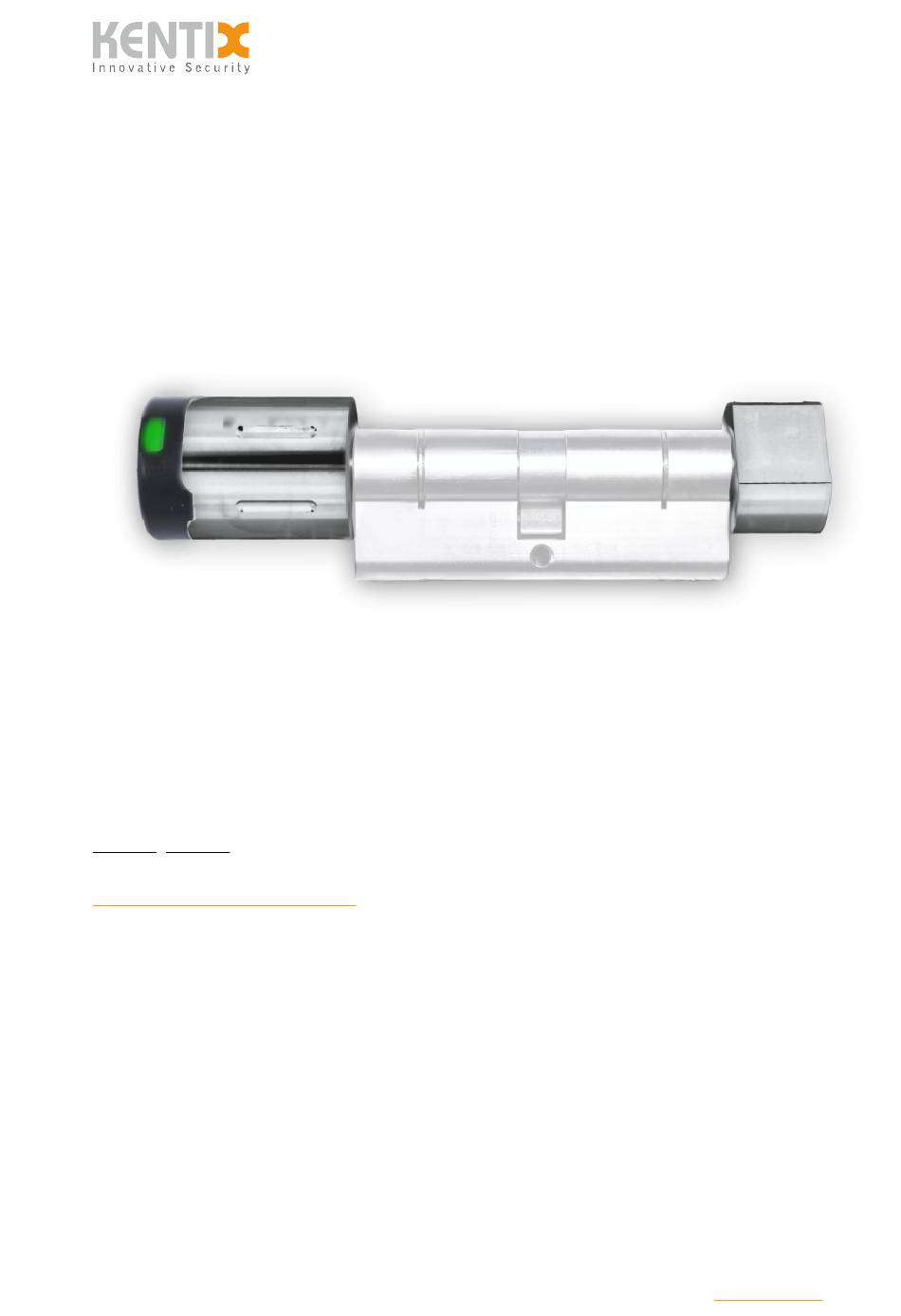

The Kentix DoorLock-DC Basic is a battery-operated electronic knob cylinder with radio control. The
knob cylinder is designed for locking and unlocking locks in building doors. Depending on the
product variant, the knob cylinder can be used indoors and outdoors. RFID transponder carriers with
MIFARE®DESFire® can be used as keys.
The electronic knob cylinder is networked by radio with an AccessManager radio. Up to 16 DoorLock
radio components can be programmed into one AccessManager radio. The configuration is done via
the integrated web server of the main device (operating mode: Main-Device).
© Kentix GmbH. This file was automatically generated on 2024-12-05 18:16:36. Please visit
docs.kentix.com
for the
latest documentation.
Advertisement
Table of Contents
Related Manuals for Kentix DoorLock-DC BASIC
Summary of Contents for Kentix DoorLock-DC BASIC
- Page 1 DATASHEET KXC-KN1, KXC-KN2 Overview The Kentix DoorLock-DC Basic is a battery-operated electronic knob cylinder with radio control. The knob cylinder is designed for locking and unlocking locks in building doors. Depending on the product variant, the knob cylinder can be used indoors and outdoors. RFID transponder carriers with MIFARE®DESFire®...
-
Page 2: Safety Instructions
Kentix accepts no liability for damage to the equipment or components resulting from incorrect installation. No liability is accepted for incorrectly programmed units. Kentix shall not be liable in the event of malfunctions, damage to property or other damage. Use of the products, transport and storage Protect the device during transport, storage and operation from Protect moisture, dirt and damage. - Page 3 We recommend commissioning before assembly. Prepare device Pull off knob cover (See battery change) Pull out the lock from the battery compartment © Kentix GmbH. This file was automatically generated on 2024-12-05 18:16:36. Please visit docs.kentix.com for the latest documentation.
- Page 4 The administration of users and access rights is done on the main device of the installation with KentixOne. All information about the software is available in the KentixONE section. Dimensions DoorLock KXC-KN1 Dimensions DoorLock KXC-KN2 © Kentix GmbH. This file was automatically generated on 2024-12-05 18:16:36. Please visit docs.kentix.com for the latest documentation.
- Page 5 Installation steps © Kentix GmbH. This file was automatically generated on 2024-12-05 18:16:36. Please visit docs.kentix.com for the latest documentation.
- Page 6 Remove the faceplate screw and pull the existing cylinder out of the door. Insert the Kentix profile cylinder into the door. Then insert and tighten the forend screw. The cylinder must not protrude more than 1 to 3 mm from the fitting or protective fitting that closely surrounds it.
-
Page 7: Operation
(ORDER-CODE: KXC-PLS50M) must be added to the cylinder body during initial installation before mounting the knob module. It must not be sprayed directly into the cylinder body with the spray can. For the DoorLock-DC BASIC radio door knob, apply an additional 1 drop of resin-free oil directly to the mechanical slider. -
Page 8: Battery Warning
Hold the battery replacement card in front of the knob module – the knob module moves to the battery replacement position. It may be necessary to wake up the knob module by turning it on before this step. © Kentix GmbH. This file was automatically generated on 2024-12-05 18:16:36. Please visit docs.kentix.com for the... - Page 9 Press in the locking pins and push the knob module sleeve back on. Make sure that the locking pins are properly engaged in the sleeve. © Kentix GmbH. This file was automatically generated on 2024-12-05 18:16:36. Please visit docs.kentix.com for the...
- Page 10 Battery change with low power adapter If the battery of the DoorLock-DC Basic is completely discharged, the knob no longer shows any reactions (LEDs and signal tones). In the last phase of the drained battery condition, the knob always moves to the position where the pins can be pushed in to change the battery.
-
Page 11: Maintenance
Signal (acoustic and visual) and explanations First booking after commissioning long tone and orange LED Programming mode start Long tone followed by a short tone © Kentix GmbH. This file was automatically generated on 2024-12-05 18:16:36. Please visit docs.kentix.com for the latest documentation. - Page 12 Battery warning phase 3 engagement, but battery change position 5 short tones, 2 long tones. Contact support at Coupling error support@kentix.com Table signaling © Kentix GmbH. This file was automatically generated on 2024-12-05 18:16:36. Please visit docs.kentix.com for the latest documentation.
