Wide range reader DoorLock-WA9 – MANUAL | 1

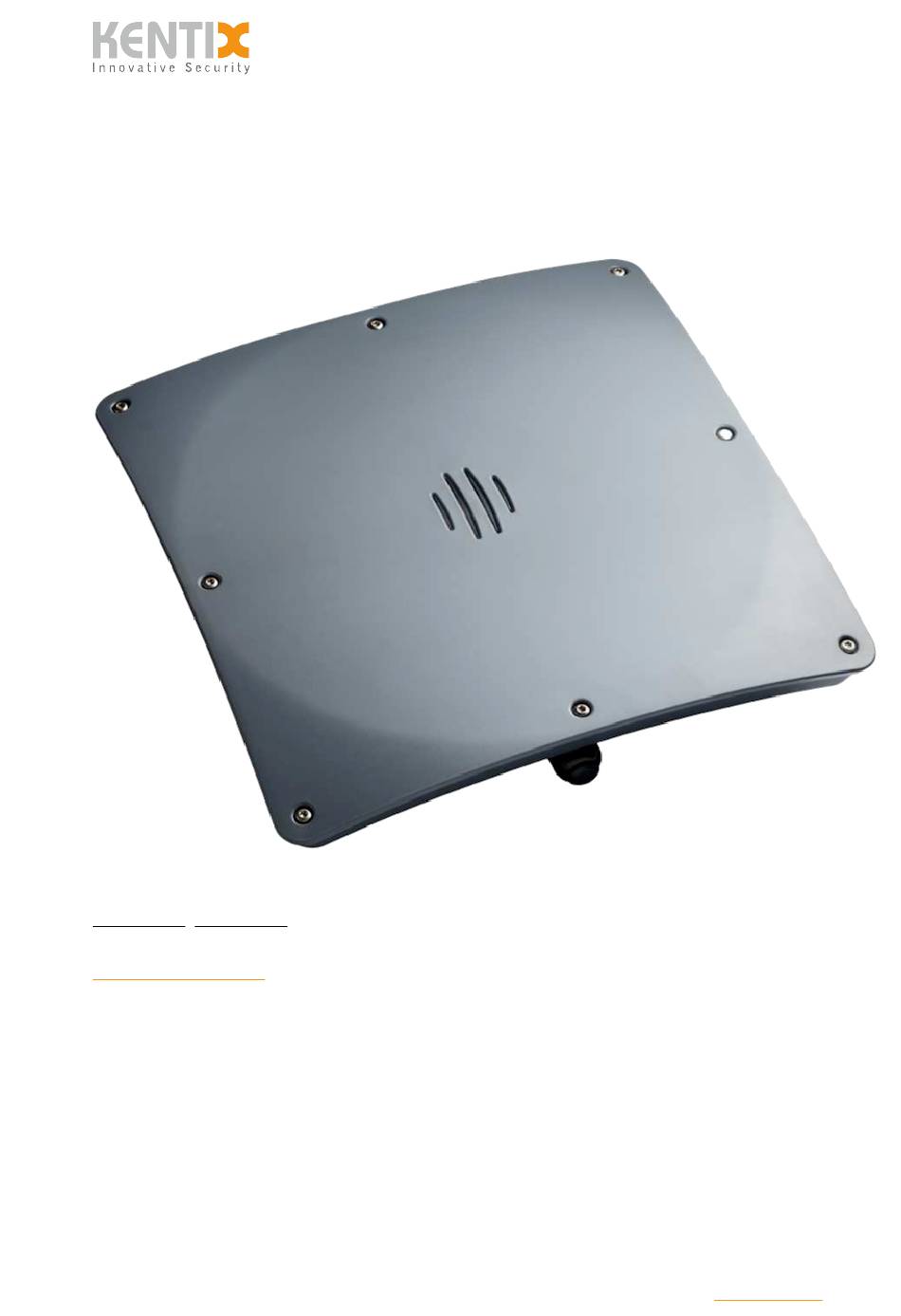

Wide range reader DoorLock-WA9 – MANUAL
ORDER-CODES:
,
KXC-WA9-IP1
KXC-WA9-IP2
DATASHEET KXC-WA9
How an RFID wide area reader works
Before we get into how to attach a wide area RFID solution, it is useful to know how the system
works in general. The reader (the antenna) emits energy/radio waves in a specific direction. When a
passive transponder (IsoCard, Iso Combi Card, headlight or windshield transponder) receives this
energy, a small chip in the transponder is charged. When enough energy has been collected, the
transponder emits a signal. The entire process takes place in fractions of a second and repeats as
long as the transponder receives energy from the antenna. The process is directional, meaning that
the transponder and reader must be aligned. The better the reader and transponder are aligned, the
