PQWT-GT
Multichannel geophysical detector Operation Manual
1. Product Description
PQ-GT series multichannel natural electric field geophysical detecotr is an
intelligent instrument newly developed by our institute that integrates data
acquisition and automatic mapping. It is mainly used in geological prospecting
fields such as water prospecting, ore prospecting, and caverns prospecting.
The device can collect the potential difference data of 18 measuring points at
the same time. The collected data will be transmitted to the host, and the host
will process and save the data, and then automatically display it on the screen,
with functions such as 3D drawing effects. At the same time, it solved the
shortcoming that the natural electric field can change at any time, and obtain
relatively stable data, the retest consistency is high.
2、 Product Features
One Time Wiring: Equipped with a 10.1-inch touch screen, it can collect data
from up to 18 measuring points at the same time. After the data is collected,
the graph is automatically formed, which shortens the measurement time.
Stable and reliable: The simultaneous measurement of 18 measuring points
can effectively avoid unstable signal caused by natural electric field changes or
other interference sources, the accuracy rate is significantly improved, and the
re-measurement patterns are basically the same.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PQWT PQ-GT Series
Summary of Contents for PQWT PQ-GT Series
- Page 1 PQWT-GT Multichannel geophysical detector Operation Manual 1. Product Description PQ-GT series multichannel natural electric field geophysical detecotr is an intelligent instrument newly developed by our institute that integrates data acquisition and automatic mapping. It is mainly used in geological prospecting fields such as water prospecting, ore prospecting, and caverns prospecting.

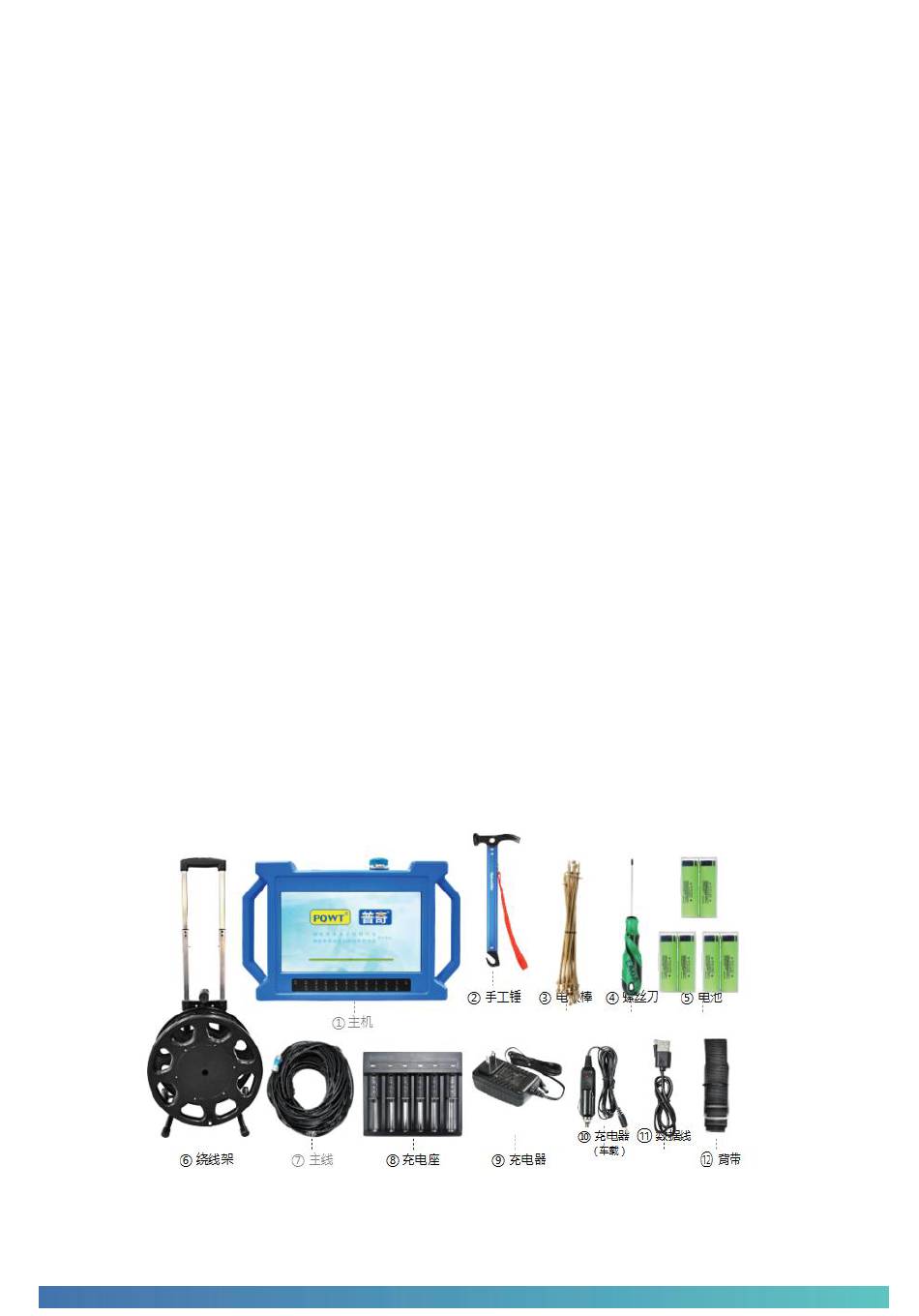

- Page 2 1. Host: Collect and process data 2. Hand hammer: hammer the electrode rod 3. Electrode: connect the main line and the ground to be tested 4. Screwdriver: Open the back cover of the host 5.Battery: power supply to the host 6.
- Page 3 Main Parameter Description Wiring Method Description When wiring in the field, place the length of the main line and the number of electrode rods appropriately according to the number of selected measuring points, and finally connect the placed electrode rods and the main line interface together.
- Page 4 lengths need to be placed. (Note: The two poles of the M pole and the N pole of the measuring line. The first measuring line is between M1 and N1. The data collected by the host is the data between the M pole and the N pole, that is, the data at point P.
- Page 5 Measurement Operation Line Test After booting, enter the main line cable detection interface. According to the interface note，observe the indicator light at the bottom of the screen：All lights are off, indicating that there is no problem with the main line cable, you can click Next Step to enter the main interface;...
- Page 6 In the main interface, press the Line Test button, observe the indicator light at the bottom of the screen if light up, If all lights up, it means there is no problem with the line; If there are individual indicators that do not light up, please check whether the main line connection with the corresponding label is properly connected to the electrode.
- Page 7 The survey line in the figure is the number of the survey line to be measured, the point number is the starting point of the survey point, and the points is the number of optional survey points. You can choose between 1-18 measuring points.
- Page 8 and click Delete to delete the survey line data. Drawing Operation After the instrument collection is completed, the curve graph will be displayed on the main interface immediately, click the curve, profile survey, and 3D graph display buttons in the lower right corner to choose to observe different graphs. Click the original map/process map to switch to the corresponding graphic screen.
- Page 9 Data Storage Operation 9.1 File Export Click the Export button in the main interface to save the measured graphics to the memory card, and click the Data Management button to view the saved graphics and data.
- Page 10 Connect to the computer Connect the host and the computer with a dedicated data cable, and click the Connect Computer button to manage the folders on the computer. 10、System setting operation In the system settings, you can adjust the screen brightness, select the language, and view other related information of the instrument.
- Page 11 11、Multi-Instrument Wiring Operation When measuring in open ground, you can use multiple multi-channel natural electric field geophysical probes for testing. 11.1Parallel wiring...
- Page 12 This method is suitable for situations where the terrain is relatively open and flat, there is no obvious valley reference and judgment on the ground, and the direction of the underground structure cannot be judged intuitively. Parallel wiring can be used to explore the underground structure broken zone. Cross Wiring One t is suitable for situations where underground faults or fissures develop along the direction of valley extension.
- Page 13 12、Battery Management Operation 12.1 Battery Usage This instrument uses three sets of 21700 batteries for power supply. You can use one set, two sets, or three sets. When placing the battery, place the positive and negative poles of the battery and the positive and negative poles of the battery box correspondingly.
- Page 14 instrument. 2、The instrument is not waterproof, please do not immerse the instrument in water or operate it in rain. 3 、 Do not knock the LCD screen hard, do not expose the screen to direct sunlight for a long time, if there is a touch failure, please shut down and restart 4、After use, please clean it and put it in the special outer box, and put it in the corresponding position when loading it, and don't crush the screen.
