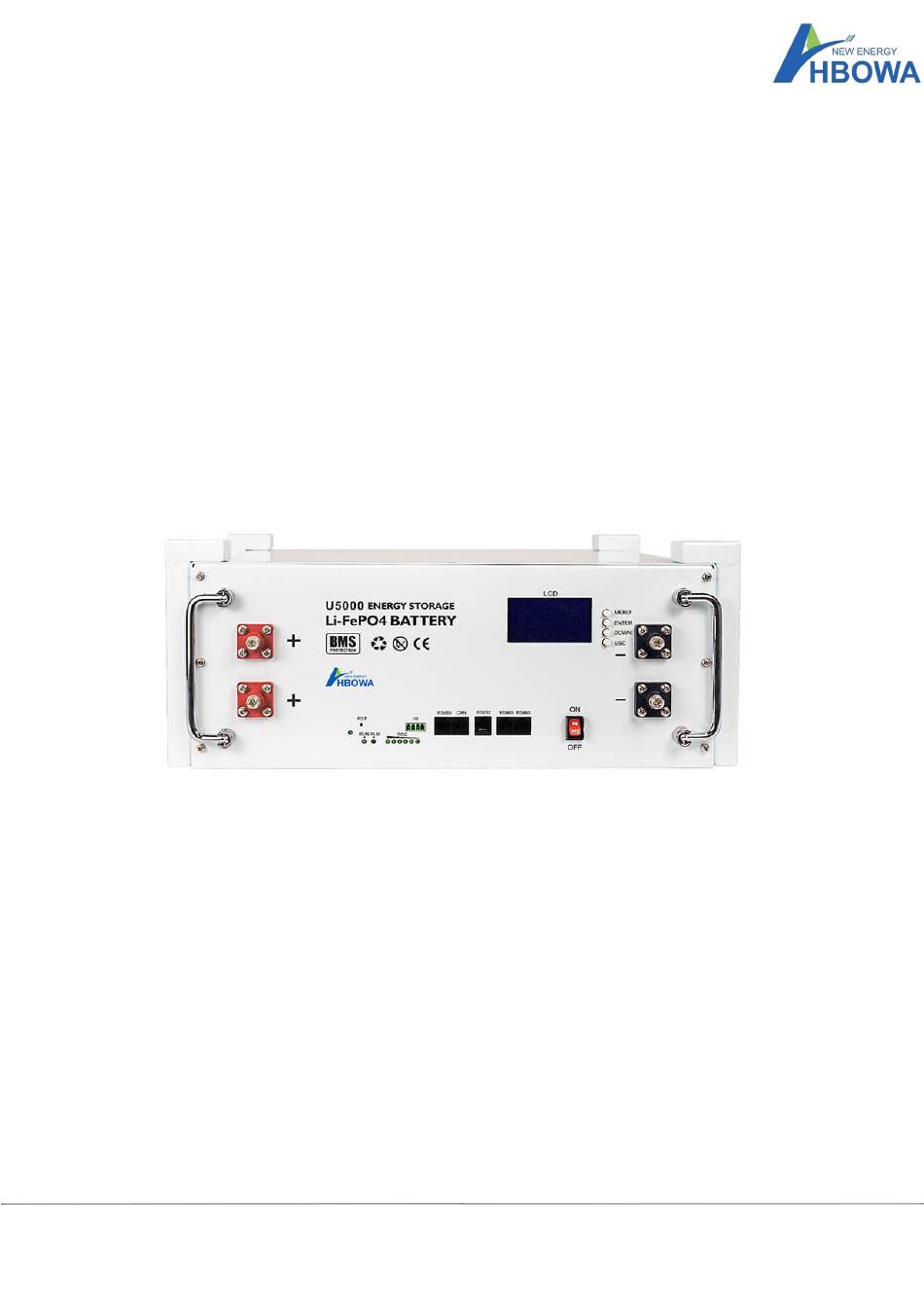

- Page 1 48V Rack Mode LifePO4 Energy Storage Battery USER INSTRUCTION Copyright © 2024 Suzhou Preta Intelligence and Technology Co.,ltd. All rights reserved...
-
Page 2: Table Of Contents
This manual introduces 48V Rack Mode Lithium Energy Storage Battery. Please read this manual before you install the battery and follow the instruction carefully during installation process. Please contact immediately for advice and clarification if you have any question. Contents Catalogue 1. -
Page 3: Revision History
10. Remarks ...................................... 21 10.1Recycle and Disposal .................................. 21 10.2Maintenance ....................................21 10.3 Declaration of conformity ................................21 Parts List ......................................21 Maintenance Record ..................................22 （Revision History） Ver. No. Date Revised Reasons for Change Reviser Approver Content 2024.7.19 First Edition First Draft haote.Feng... -
Page 4: Symbol Description
1. Symbol Description Do not place near open fire or flammable materials. A potential hazard exists when the equipment is working. Wear personal protective equipment during operation. Warning electric shock. Power off the equipment before any operation. Grounding: indicate PE cable connection position. Do not place in areas accessible to children. -
Page 5: Safety Precautions
2. Safety Precautions Alert It is important and necessary to read the user manual carefully (and attachment) before installing or using battery. Failure to do so or to follow any instruction or warning in this document can result in electrical shock, serious injury, and death, or damage battery, potentially rendering it unusable. When battery is stored for a long time, it is required to charge once every 6 months, and the SOC should be no less than 50% After battery module cannot be discharged, it needs to be recharged within 12h. -
Page 6: Introduction
It is prohibited to connect battery with different types of battery. Do not connect battery to faulty inverter. In case of fire, only dry powder fire extinguisher can be used, liquid fire extinguishers are prohibited. Except for personnel from Company or other authorized personnel, batteries shall not be opened, repaired or disassembled.The company shall not bear any liability or responsibility caused by violation of any safety operation or design standard, production standard, equipment safety standards or any other standards or... -
Page 7: Product Function Description
4.Product Function Description 4.1 Dimensions Figure 4-1 product model Specification Length（L） High（H） Width(W) 48V100AH 425mm 484mm 176.5mm 48V200AH 690mm 484mm 240mm 7 / 22... -
Page 8: Product Specifications
4.2 Product Specifications Specification Items Condition Standard Nominal Capacity 100.0Ah 200.0Ah charge/discharge Nominal Voltage Average Constant current Standard Charging Constant voltage Refer to 3.1 End current(Cut off) Charging Voltage Max. Continuous Charge 2 5± 3 ℃ 100.0A 100.0A Current Standard Discharging Constant current 50.0A 50.0A... -
Page 9: Equipment Interface Instruction
4.3 Equipment interface instruction Figure 4-2 4.4 Parallel Connection When Connect the batteries parallel, connect the positive terminal and positive terminal(red colour) in parallel, and the negative terminal and negative terminal (black colour) in parallel, the max parallel quantity is 15pcs, as shown in the figure below： 15pcs max in parallel Capacity Model... - Page 10 10 / 22...
-
Page 11: Dial Code Address Selection
4.5 Dial code address selection Definition of parallel machine dialing switch: multi-machine communication when the battery Pack is in parallel. The dial switch is used to distinguish the different PACK addresses. The hardware address can be set by the dial switch on the board. The code dialing switches bit1 to bit8 define: bit1 to bit4 is used to set the address and bit5 to bit8 is used to set the number of slave machines. - Page 12 Host address(See Table 2) Number Dial the code switch position Note of comp uters Stand-alone use 2 units in parallel 3 units in parallel 4 units in parallel 5 units in parallel 6 units in parallel 7 units in parallel 8 units in parallel 9 units in parallel 10 units in parallel...
-
Page 13: Communication Function
16 set OFF ON The first host weaver OFF OFF The second slave OFF OFF The third slave OFF OFF The fourth slave OFF OFF The fifth slave OFF OFF The sixth slave OFF OFF Seventh slave OFF OFF Eighth slave ON OFF The ninth slave ON OFF... -
Page 14: Rs485 Communications
2)RS485 communications BMS RS485 communication with battery packs, baud rate 19200 bps. RS485 communication interface adopts 8 P8C network interface. RS485 communication interface definition Definitions 1、8 RS485-B RS485-A 、7 、6 Internal communication 4、5 3)Parallel communication RS485 interface is used as parallel communication interface and CAN interface as upper communication interface. -
Page 15: Led Indication Function
4.8 LED Indication Function The current power consumption and operation status of the product are shown through LED indicator Light (See Table 1, Table 2, and Table 3 for details)Working status indication. Battery capacity LED Normal/ Specification Status warni n g/ protec ●... -
Page 16: Turn On And Off
Capacity Indicator Status Charging Discharging Capacity dictator ● ● ● ● ● ● ● ● 0~ 25% Flash Flash 25~50% Flash 50~75% Battery level 75~100% Flash Working dictator● Flash LED Flashing Instructions Flash way Bright Flash 1 0.25S 3.75S Flash 2 0.5S 0.5S Flash 3... -
Page 17: Protection And Rehabilitation
4.11.2.Total pressure overcharge protection and recovery If the battery voltage is higher than the set value of the total voltage overcharge protection, the BMS enters the overcharge protection state, and the charging equipment can not charge the battery. If the total voltage drops below the recovery value and SOC below 96%, the overcharge protection is relieved. -
Page 18: Electrical Specification
5 . Electrical Specification ( Unless there is special requirement, the test shall be done under temperature of 25± 2C and with relative humidity of 45~85%. ) Items Test Condition Standard The standard charge means charge the battery in temperature below 25 ± 3 Cwith initial charge current of 50A( 100Ah)/ 50A(200Ah) and with constant voltage of 54V, then charge with constant voltage of 54V and with Standard... -
Page 19: Bms
6. BMS 6.1 BMS System Schematic Diagram 6.2 BMS Parameter Item 100Ah 200Ah Power Low power consumption mode ≤ 100μA ≤ 100μA Consumption Over charge detection voltage 3.65V 3.65V Over charge Protection Over charge release voltage 3.38V 3.38V Over discharge detection Over 2.7V 2.7V... -
Page 20: Product Life
Product Life The design life of this product is 10 years. Transportation During transportation, please keep the battery from acutely vibration, impacting, over- exposure to the sun and drenching. 9. Emergency Situations 9.1Battery Leakage If the battery pack leaks electrolyte, avoid contact with the leaking liquid or gas. If one is exposed to the leaked substance, immediately perform the actions described below. -
Page 21: Parts List
10. Remarks 10.1Recycle and Disposal In case a battery (normal condition or damaged) needs disposal or needs recycling, it shall follow the local recycling regulation (i.e. Regulation (EC) Nº 1013/2006 among European Union) to process, and using the best available techniques to achieve a relevant recycling efficiency. -
Page 22: Maintenance Record
Maintenance Record Dear user.thank you for selecting our product,Please fill in and keep the warranty card for better services. Attn: Product No. : Tel : E-mail: Purchase Date: Address: Maintenance Record Date of repair Content Maintenance Personnel Note 22 / 22... - Page 23 Suzhou Preta Intelligence and Technology Co.,ltd Add: No..55 Shangxiang Road, Huaqiao Corporation Head Quarter Centre, Kunshan City, Suzhou City, China Tel: 0512-36684019 Email: info@pretapower.com Web: https://pretapower.com/...
