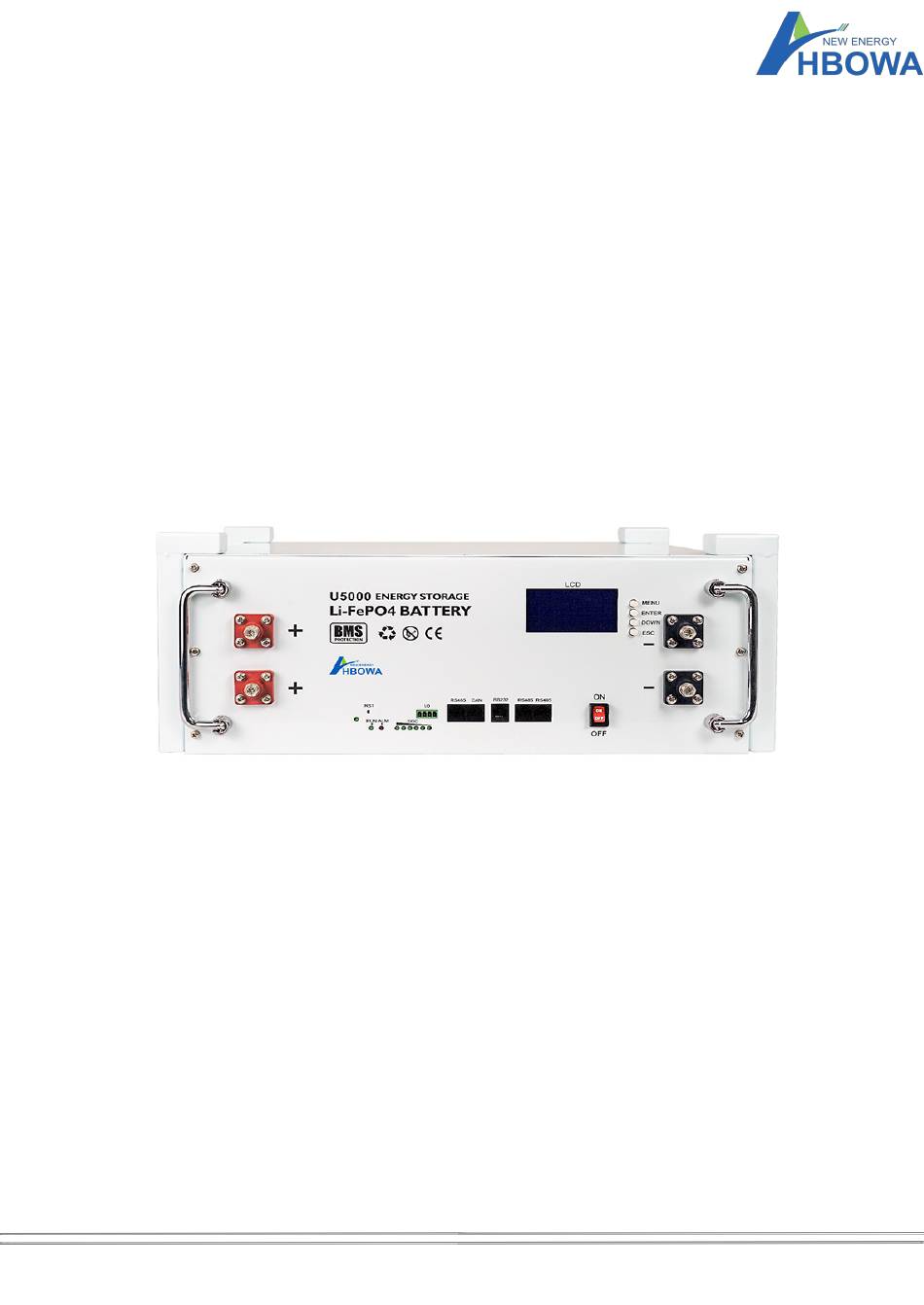

- Page 1 51.2V Rack Mode Lithium Energy Storage Battery USER INSTRUCTION Copyright © 2024 Suzhou Preta Intelligence and Technology Co.,ltd. All rights reserved.
-
Page 2: Table Of Contents
This manual introduces 51.2V Rack Mode Lithium Energy Storage Battery. Please read this manual before you install the battery and follow the instruction carefully during installation process. Please contact immediately for advice and clarification if you have any question. Contents 1. - Page 3 7.2 BMS Parameter .................................... 23 8 . Product Life ....................................24 9 . Transportation .................................... 24 10 Emergency Situations ................................. 24 10.1Battery Leakage ...................................24 10.2On Fire ......................................24 10.3Wet Batteries ....................................24 10.4Damaged Batteries ..................................24 11 Remarks ....................................... 25 11.1Maintenance ....................................25 Parts List ......................................
-
Page 4: Symbol Description
1. Symbol Description Do not place near open fire or flammable materials. A potential hazard exists when the equipment is working. Wear personal protective equipment during operation. Warning electric shock. Power off the equipment before any operation. Grounding: indicate PE cable connection position. Do not place in areas accessible to children. -
Page 5: Safety Precautions
2. Safety Precautions Alert It is important and necessary to read the user manual carefully (and attachment) before installing or using battery. Failure to do so or to follow any instruction or warning in this document can result in electrical shock, serious injury, and death, or damage battery, potentially rendering it unusable. -
Page 6: In Using
2.2 In Using If battery system needs to be moved or repaired, power must be cut off and battery is completely shut down.It is prohibited to connect battery with different types of battery. Do not connect battery to faulty inverter. In case of fire, only dry powder fire extinguisher can be used, liquid fire extinguishers are prohibited. -
Page 7: Product Function Description
4.Product Function Description 4.1 Dimensions Figure 4-1 product model Specification Length（L） Width(W) High（H） 51.2V100Ah 425mm 499mm 165mm 51.2V200Ah 773mm 520mm 165mm 7 / 26... -
Page 8: Product Specifications
4.2 Product Specifications Specification Items Condition Standard Nominal Capacity 100.0Ah 200.0Ah charge/discharge Nominal Voltage Average 51.2V 51.2V Constant current Standard Charging 57.6V 57.6V Constant voltage Refer to 6.1 End current(Cut off) Charging Voltage 57.6V 57.6V Max. Continuous Charge 2 5± 3 ℃ 100.0A 100.0A Current... -
Page 9: Equipment Interface Instruction
4.3 Equipment interface instruction Figure 4-2 4.4 Parallel Connection When Connect the batteries parallel, connect the positive terminal and positive terminal(red colour) in parallel, and the negative terminal and negative terminal (black colour) in parallel, the max parallel quantity is 15pcs, as shown in the figure below： 15pcs max in parallel Model Capacity... - Page 10 10 / 26...
- Page 11 The parallel machine has dual RS485 interfaces. The first battery that communicates with the inverter serves as the main unit, and the 485-2 of the main unit is connected to the 485-1 of the next slave unit. The communication interfaces of each battery are connected in this staggered order, so that the main battery can read the information of each battery.
-
Page 12: Dial Code Switch Settings (Parallel Connection Needed)
4.5 Dial Code Switch Settings (parallel connection needed) When the battery packs are connected in parallel, the dial code switch of each battery can be used to distinguish different Pack addresses. The hardware address can be set through the dial code switch on the board. （The automatic coding may encode the host to wake up the slave, after the host wakes up from the function to wake up automatically The definition of the dial code switch refer to the following table. -
Page 13: Rs485-1 / Can Main Communication
2)RS485-1 / CAN main communication If you need to communicate with the monitoring device through RS485 or Can, the monitoring device will be used as the host, and the address setting range of other batteries will be 2~15 according to the polling data of the address. The product adopts isolated communication design, supports RS4 8 5 / CAN communication mode, RS485 communication default baud rate is 9600 bps, 8 bit data bit, 1 bit stop bit, no test bit;... -
Page 14: Led Indication Function
4.7 LED Indication Function The current power consumption and operation status of the product are shown through LED indicator Light (See Table 1, Table 2, and Table 3 for details)Working status indication. SOC Indication LED Normal / State Alarm / Instructions Protection ●... -
Page 15: Lcd Introduction
Capacity Indicator State Charge Discharge Capacity indicator light ● ● ● ● ● ● ● ● ● ● ● ● flash 0～16.6% flas 16.6～33.2% electricity（% flas 33.2～49.8% ） flas 49.8～66.4% flas 66.4～83.0% flash 83.0~100% Running light ● flash(flash 3) LED Flashing Instructions Flash way Flash 1 0.25S... -
Page 16: Display Rendering
4.8.2 Display rendering 4.8.3 Main Menu Page After power on/sleep activation, the welcome interface will be displayed, and press the MENU key to enter the main menu page. As shown in the following figure: 4.8.4 Page definition not displayed Single cell over voltage alarm Cell OV Single low voltage alarm Cell UV... - Page 17 Low temperature charging alarm CHG UT Low temperature discharge alarm DSG UT Environmental high temperature alarm ENV OT Environmental low temperature alarm ENV UT MOS high temperature alarm MOS OT Low battery SOC Low Single cell over voltage protection Cell OVP Single cell over discharge protection Cell UVP Overall Over voltage Protection...
-
Page 18: Key Description
4.8.5 Key Description 1) Each item starts with " 》 " or "--", where " 》 " represents the current position of the cursor, and pressing the DOWN key can,Move the cursor position downwards; A project that ends with "》" indicates that the project has content that is not displayed. -
Page 19: Hibernate/Shut Down
4.8.7 Hibernate/shut down In normal operating mode, after 1 minute of no button operation, the system will enter sleep/shutdown mode. In shutdown/sleep mode In this state, operating any button will activate the display screen. 4.9 Sleep Mode The system enters a low-power mode when any of the following conditions is met: 1.The monomer or overall over release protection is not removed within 30 seconds. -
Page 20: Installation Direction
5.2 Installation Direction Warning Upside down Sidelong upright NOT allowed NOT allowed NOT allowed Figure 5-2 5.3 Installation Steps Warning Follow local electric safety and installation policy, a suitable breaker between battery system and inverter is required. All installation and operation must follow local electric standard and requirements. When battery modules are paralleled, the system should be powered off before installation operation. -
Page 21: Assembly Steps
5.4 Assembly steps 1. The bracket and the frame are fastened by the M5 three-combination stainless steel screw, and the contact between the bracket and the ground is smooth and stable; 2. The machine frame and the machine frame are fastened by the M5 three- combination stainless steel screw, the contact between the two is neat and stable;... -
Page 22: Electrical Specification
6 . Electrical Specification ( Unless there is special requirement, the test shall be done under temperature of 25± 2 ℃ and with relative humidity of 45~85%. ) Items Test Condition Standard The standard charge means charge the battery in temperature below 25 ±... -
Page 23: Bms
7. BMS 7.1 BMS System Schematic Diagram 7.2 BMS Parameter 51.2V 51.2V Item 100Ah 200Ah Power Low power consumption mode ≤ 100μA ≤ 100μA Consumption Over charge detection voltage 3.65V 3.65V Over charge Protection Over charge release voltage 3.38V 3.38V Over discharge detection voltage Over 2.7V... -
Page 24: Product Life
Product Life The design life of this product is 10 years. Transportation During transportation, please keep the battery from acutely vibration, impacting, over- exposure to the sun and drenching. 10 Emergency Situations 10.1Battery Leakage If the battery pack leaks electrolyte, avoid contact with the leaking liquid or gas. If one is exposed to the leaked substance, immediately perform the actions described below. -
Page 25: Remarks
Warning Damaged batteries may leak electrolyte or produce flammable gas. 11 Remarks 11.1Maintenance It is required to charge the battery at least once every 6 months, for this charge maintenance make sure the SOC is charged to higher than 85%. Check installation environment such as dust, water, insect etc. -
Page 26: Maintenance Record
Maintenance Record Dear user.thank you for selecting our product,Please fill in and keep the warranty card for better services. Attn: Product No. : Tel : E-mail: Purchase Date: Address: Maintenance Record Date of repair Content Maintenance Personnel Note 26 / 26... - Page 27 Suzhou Preta Intelligence and Technology Co.,ltd Add: No..55 Shangxiang Road, Huaqiao Corporation Head Quarter Centre, Kunshan City, Suzhou City, China Tel: 0512-36684019 Email: info@pretapower.com Web: https://pretapower.com/...
