HBOWA NEW ENERGY 51.2V 280Ah User Instruction

Floor standing lithium energy storage battery

Advertisement

Quick Links

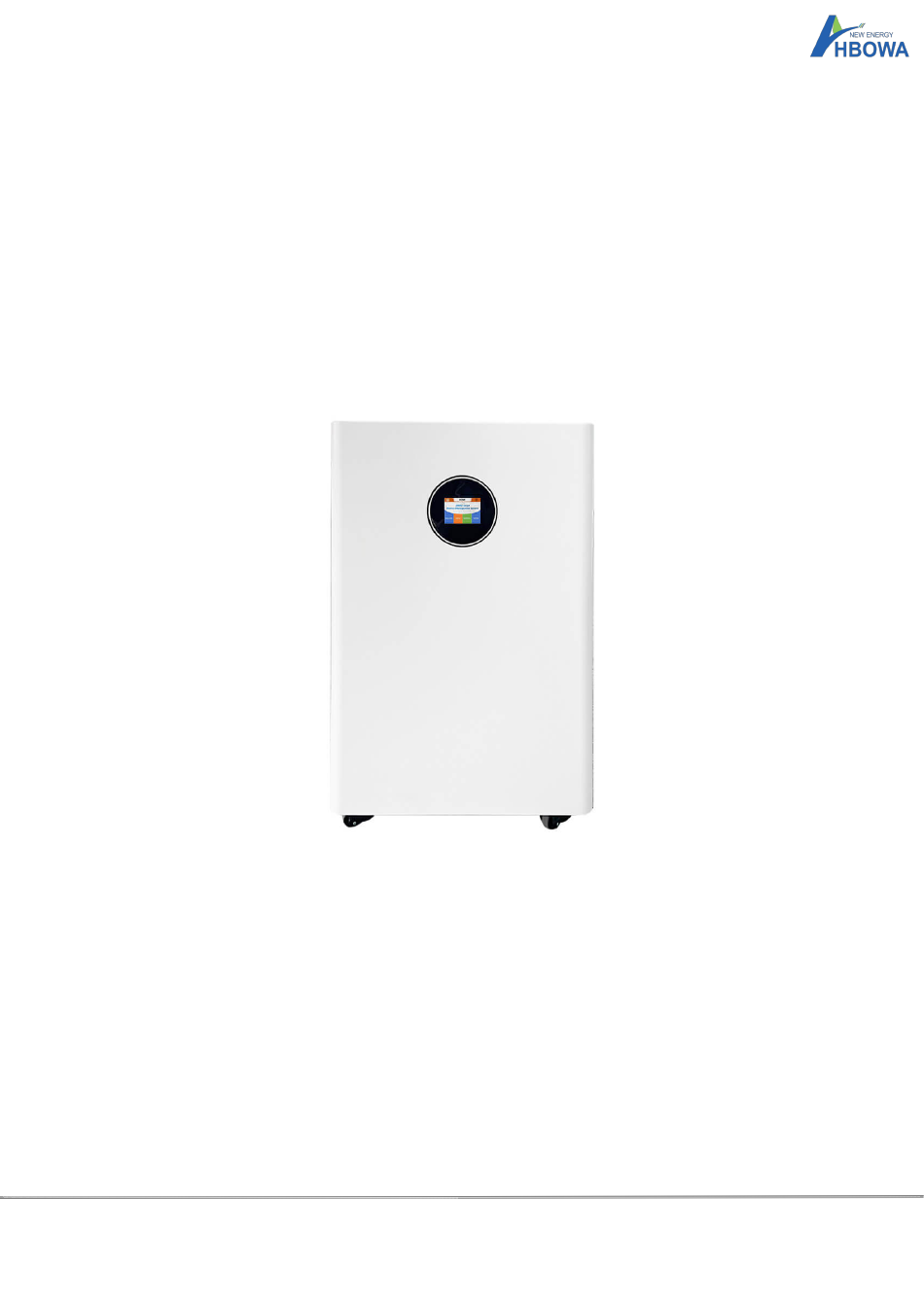

51.2V 280Ah
Floor Standing Lithium
Energy Storage Battery
USER INSTRUCTION
Copyright © 2024 Suzhou Preta Intelligence and Technology Co.,ltd. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 51.2V 280Ah and is the answer not in the manual?

Questions and answers

Summary of Contents for HBOWA NEW ENERGY 51.2V 280Ah

  • Page 1 51.2V 280Ah Floor Standing Lithium Energy Storage Battery USER INSTRUCTION Copyright © 2024 Suzhou Preta Intelligence and Technology Co.,ltd. All rights reserved.
  • Page 2: Table Of Contents

    This manual introduces 51.2V 280Ah Floor Standing Lithium Energy Storage Battery. Please read this manual before you install the battery and follow the instruction carefully during installation process. Please contact immediately for advice and clarification if you have any question.
  • Page 3 (Revision History) Ver. No. Date Revised Reasons for Reviser Approve Content Change 2024.07.20 First Edition First Draft Zhangdigen...
  • Page 4: Symbol Description

    1. Symbol Description Do not place near open fire or flammable materials. A potential hazard exists when the equipment is working. Wear personal protective equipment during operation. Warning electric shock. Power off the equipment before any operation. Grounding: indicate PE cable connection position. Do not place in areas accessible to children.
  • Page 5: Safety Precautions

    2. Safety Precautions Alert It is important and necessary to read the user manual carefully (and attachment) before installing or using battery. Failure to do so or to follow any instruction or warning in this document can result in electrical shock, serious injury, and death, or damage battery, potentially rendering it unusable. When battery is stored for a long time, it is required to charge once every 6 months, and the SOC should be no less than 50%.
  • Page 6: Introduction

    It is prohibited to connect battery with different types of battery. Do not connect battery to faulty inverter. Except for personnel from Company or other authorized personnel, batteries shall not be opened, repaired or disassembled.The company shall not bear any liability or responsibility caused by violation of any safety operation or design standard, production standard, equipment safety standards or any other standards or requirements.
  • Page 7: Product Function Description

    4. Product Function Description Figure 4-1 4.1 Dimensions product model Specification Length(L) Width(W) High(H) 800mm 550mm 260mm 51.2V280Ah 7 / 20...
  • Page 8: Product Specifications

    4.2 Product Specifications Specification Items Condition Standard Nominal Capacity 280.0Ah charge/discharge Nominal Voltage Average 51.2V Constant current 100A Standard Charging 57.6V Constant voltage Refer to 5.1 End current(Cut off) Charging Voltage 57.6V Max. Continuous Charge 2 5± 3 ℃ 200.0A Current Standard Discharging Constant current...
  • Page 9: Equipment Interface Instruction

    4.3 Equipment interface instruction Figure 4-2 PCS: battery communication with PCS by RJ45 8P8C 485-1/485-2: battery parallel communication RS232: Communicate with the upper computer Start: System start switch, Press the button BMS will works Negative terminal: battery negative output--Connect 2AWG cable Positive terminal: battery positive output--Connect 2AWG cable Exhaust valve ...
  • Page 10  CAN: The default baud rate is 500K, and this interface is used for communication with the inverter. When this battery is the host, it can summarize slave data and communicate with the inverter. Definition 1、3、6、7、8 CAN-H CAN-L  Parallel RS485 You can view the information of the PACK, with a default baud rate of 9600bps.
  • Page 11: Parallel Connection

    4.4 Parallel Connection When Connect the batteries in parallel, connect the positive terminal and positive terminal(red colour) in parallel, and the negative terminal and negative terminal (black colour) in parallel, the max parallel quantity is 15pcs, as shown in the figure below. the parallel communication line between the battery and the inverter is connected in a staggered manner, with one end at the second 485 port and the other end at the first 485 port of the parallel battery.
  • Page 12: Led Indication Function

    4.5 LED Indication Function The current power consumption and operation status of the product are shown through LED indicator Light (See Table 1, Table 2, and Table 3 for details)Working status indication SOC Indication LED Normal / State Alarm / Instructions Protection ●...
  • Page 13: Lcd Introduction

    Capacity Indicator State Charge Discharge Capacity indicator light ● ● ● ● ● ● ● ● ● ● ● ● flash 0~16.6% flas 16.6~33.2% electricity(% flas 33.2~49.8% ) flas 49.8~66.4% flas 66.4~83.0% flash 83.0~100% Running light ● flash(flash 3) LED Flashing Instructions Flash way Flash 1 0.25S...
  • Page 14 4.6.3 Main State page 4.6.4 Parallel Data page 4.6.5 Menu structure  Menu  main state page o SOC(Total) o Current o Voltage o BMS INFO o Warning o Parallel data  SOC(each pack)  Current  Voltage  BMS INFO ...
  • Page 15 BMS Status   Warning Over Current Over Voltage Under Voltage Over Temperature Under Temperature  Protect Over Voltage Protection Under Voltage Protection Short Circuit Protection Over Current Protection Over Temperature Protection PROTOCOL   (Note: The protocol list is read from the BMS motherboard. The following is a case study, taking into account the contents of each BMS motherboard.)Based on the list, change the protocol.
  • Page 16: Sleep Mode

    4.7 Sleep Mode The system enters a low-power mode when any of the following conditions is met: 1.The monomer or overall over release protection is not removed within 30 seconds. 2.Press the button (3~6S) and release the button. 3. The lowest unit voltage is lower than the dormancy voltage, and the duration reaches the dormancy delay time (at the same time, meet the no communication, no protection, no equilibrium, no current).
  • Page 17: Bms

    Capacity≥50% Batteries shall be charged according to 5.1 and discharged in Discharge At 0 ℃ : accordance with the above mentioned temperature. The Discharge Character discharge capacity shall meet the standard. Batteries shall be capacity≥80% stored for 6~8 hours at the test temperature. At 25℃...
  • Page 18: Product Life

    Charging over current 205A (1S) detection current (detection time) Over current Discharging over current 205A protection detection current 1 (1S) ( detection time) Discharging over current ≥ 250A Detection current2 500ms (detection time) Temp. Detection temperature 65± 2C Protection Balance voltage Balance 3.5V 7.
  • Page 19: Remarks

    10. Remarks 10.1Recycle and Disposal In case a battery (normal condition or damaged) needs disposal or needs recycling, it shall follow the local recycling regulation (Suggest Regulation (EC) Nº 1013/2006 among European Union) to process, and using the best available techniques to achieve a relevant recycling efficiency.
  • Page 20: Maintenance Record

    Maintenance Record Dear user.thank you for selecting our product,Please fill in and keep the warranty card for better services. Attn: Product No.: Tel: E-mail: Purchase Date: Address: Maintenance Record Date of repair Content Maintenance Personnel Note 20 / 20...
