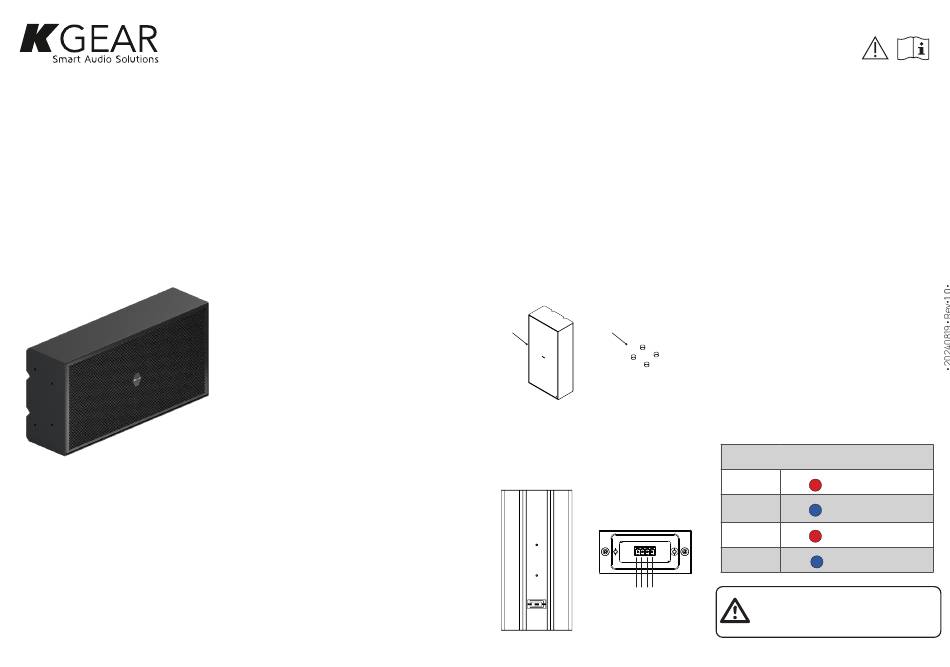

KGEAR GU210 User Manual

GU210 - passive subwoofer for fixed indoor/outdoor
installations
Thank you for choosing KGEAR!
To ensure proper operation, please carefully read
this owner's manual and safety instruction before
using the product. After reading this manual, be sure
to keep it for future reference.
If you have any questions about your new
device please contact K-array customer service at
info@kgear.it or contact the local distributor in your
country.
Meet the GU210, the compact powerhouse of
KGEAR GU family. Comprised of a 10" ferrite magnet
woofer and a 10" passive radiator, the GU210
delivers a precise bass response with high power
and efficiency. The GU210 is entirely built with
steel, including both the cabinet and the grille. Its
robust and durable design makes it well-suited for
outdoor installations (IP64 with G-IPCAP1 purchased
separately).
With a passive low-pass filter on board, the GU210
can be driven by any amplifier without a dedicated
preset, for quick and easy installations and thanks
to a frequency response from 40Hz to 250Hz, this
subwoofer has a deep definition in the bass range
and it is the perfect companion of GH and GF family.
Thanks to various accessory options for wall-
mounting, down-firing, and standing configurations,
this subwoofer offers versatility for a broad spectrum
of applications—from hospitality and corporate
settings to residential use.
Redefine your audio experience with easy
installation and exceptional reliability, delivering
powerful sound without sacrifices.
Unpacking
Each KGEAR device is inspected before leaving the
factory. Upon arrival, carefully inspect the shipping
carton, then examine and test your new device. If
you find any damage, immediately notify the shipping
company. Check that the following parts are supplied
with the product:
A. 1x GU210 passive subwoofer
B. 4x rubber feet to To decouple the subwoofer from
the floor and orient it vertically and horizontally
A B
GU210 rear panel
1+ 1- 1+ 1-
USER GUIDE
GU210 subwoofer is equipped with 1x Phoenix
connector 4 pin - Euroblock 1,5/ 4-ST-3,81.
Wiring
The 10" woofer is connected to Pin 1 (positive terminal)
and Pin 2 (negative terminal) of the euroblock
connector. To pass the signal from the same amplifier
channel to another speaker or subwoofer connected
in parallel, Pin 3 is connected to Pin 1 (positive
terminal), and Pin 4 is connected to Pin 2 (negative
terminal) to the speaker connector. This allows the
signal to be passed through to the additional speaker
or subwoofer.
16
Ω
PIN 1 SIGNAL + (1+)
SIGNAL - (1-)
PIN 2
PIN 3 SIGNAL + (1+)
PIN 4 SIGNAL - (1-)
Always check speakers impedance to
match the amplifier's power load.
