GPXA / GPX
2x 18" Active/Passive Subwoofers + 4x 12" Slim Array Systems
Thank you for choosing KGEAR!
To
ensure
proper
operation,
carefully read this owner's manual and
safety instruction before using the product.
After reading this manual, be sure to keep
it for future reference.
Should you have any questions about
your new device please contact K-array
customer service at info@kgear.it or contact
the local distributor in your country.
KGEAR by K-array surl
via P. Romagnoli 17 - 50038 - Scarperia e San Piero -
Firenze - Italy - www.kgear.it
Heavy duty 2x18" subwoofer combined
with two metal frame GH12 12" coaxial
array modules featuring the K-array™ SAT®
technology.
The active GPZA system is powered by
a 4-channel Powersoft™ amplifier module
with DSP delivering up to 1500 W per
channel @ 4 ohm: the built in amp module
makes the GPZA capable of driving a GPZ
passive system in a stereo configuration.
Unpacking
Each KGEAR device is inspected before
leaving the factory. Upon arrival, carefully
inspect the shipping carton, then examine
and test your new device. If you find any
damage, immediately notify the shipping
company. Check that the following parts
are supplied with the product:
KGEAR GPXA
• 1x GH412 4x12" array speaker
• 1x GSX218A active subwoofer
• 1x G-PINM20 pivot
• 1x 2m (6.5ft) speaker cable
please
• 1x Power cord
KGEAR GPX
• 1x GH412 4x12" array speaker
• 1x GSX218A active subwoofer
• 1x G-PINM20 pivot
• 1x 2m (6.5ft) speaker cable
PRESET
PRESET
SELECT

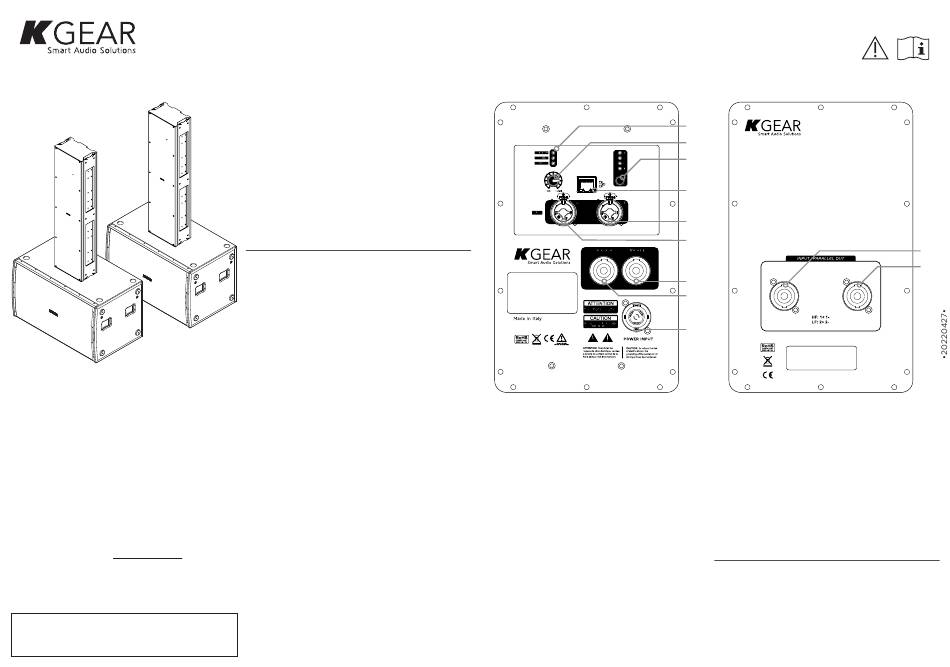

Rear Panel
GPXA - GSX218A
1. Status LEDs
2. Volume potentiometer
3. DSP preset selection button
4. RJ45 Ethernet port
5. XLR Combo balanced input channel 1
6. XLR Combo balanced input channel 2
7. NL4 SpeakON B speaker output 3 and 4
8. NL4 SpeakON A speaker output 1 and 2
9. powerCON TRUE AC MAIN inlet
GPX - GS218
A. NL4 SpeakON A: signal in/out
B. NL4 SpeakON B: signal in/out
USER GUIDE
1
2
3
4
5
6
7
8
9
AC MAINS Supply
GPXA
The GPZA features a powered subwoofer:
the AC Main connection is made via the
provided power cord with powerCON TRUE
flying connector.
Insert
the
powerCon
connector into the inlet and then rotate
it clockwise: once properly plugged, the
amplifier will power up.
ArmoníaPlus
ArmoníaPlus is the software for fine
tuning and monitoring the KGEAR GPXA
loudspeaker system.
Download ArmoníaPlus from Powersoft
website: www.powersoft.com
A
B
TRUE
flying
