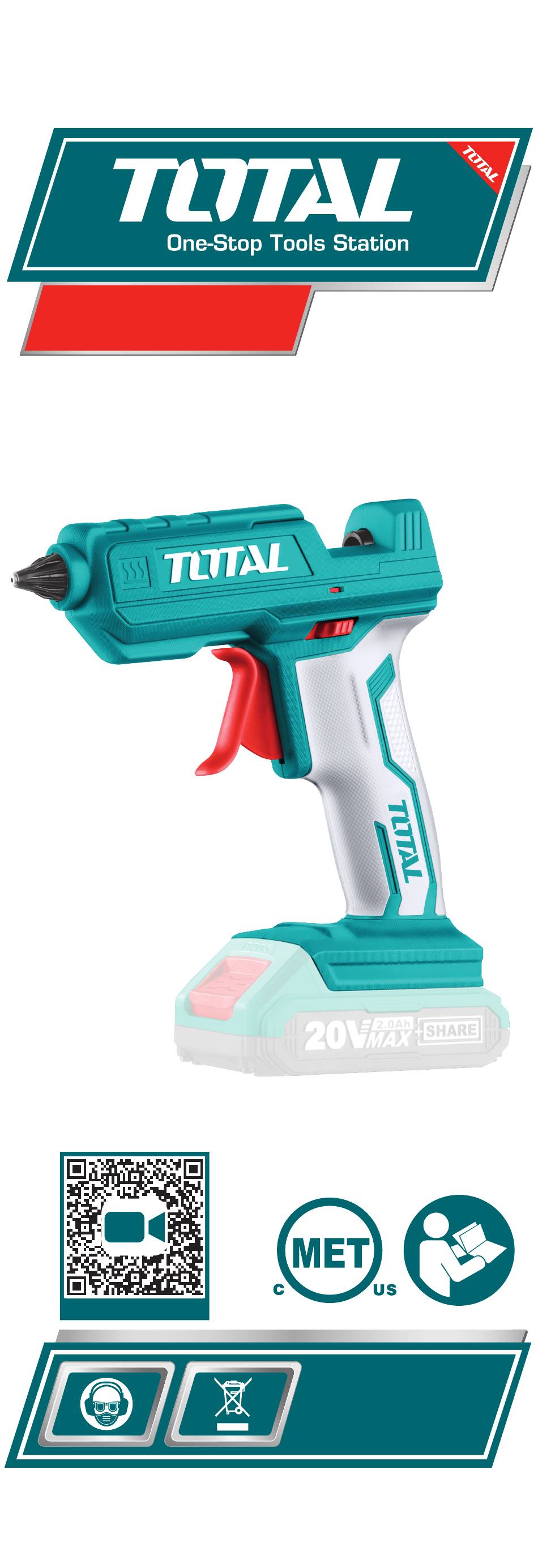

- Page 1 LITHIUM-ION GLUE GUN PISTOLA DE PEGAMENTO DE IONES DE LITIO PISTOLET À COLLE AU LITHIUM-ION TGGLI2001A,TGGLI2001AX,TGGLI2001A-X (X stands for 1 to 9) SCAN FOR VIDEO...
-
Page 3: Technical Data
–This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. –Children should be supervised to ensure that they do not play with the appliance. -
Page 4: Safety Regulations
SAFETY REGULATIONS Warning! Do not open the casing! Dangerous voltage is found upprotected on some compone inside the product’s casing; contact with these may lead to electric shock. The product may only be repaired by qualified service personnel. The product may not be taken apart nor be changed. - Page 5 DESCRIPTION FIG.1 1.Switch trigger 2.On/Off switch 3.Nozzle 4.Glue stick chamber 5.Glue stick 6.LED on/off indicator...
-
Page 6: Operation
OPERATION Installing /Removing Battery Pack FIG..2 FIG..3 Make sure the on/off switch is in the off(O) position.(FIG.1) Insert the battery pack into the product as shown. (FIG..2) Make sure the latches on the battery pack snap into place and that battery pack is secured in the product before beginning operation. - Page 7 FIG..4 FIG..5 FIG..6 Insert a glue stick through the opening at the back of the glue gun. Guide the glue stick into the glue chamber until it will go no further. (FIG.4) Place a piece of paper underneath the glue gun to catch any drips while the glue gun is heating.
- Page 8 FIG.7 FIG.8 Helpful Hints For Use Before applying glue to a surface or workplace. Use a scrap place of paper or material that is similar to your workplace as a test.(FIG.8) Use caution when applying hot glue to thin or porous material. The underlying surface could be damaged or glue could adhere to the surface and be difficult to remove...
- Page 9 Applying Hot Glue Install the battery pack and turn the on/off switch to the on position. Allow time for the glue melt so that it flows freely from the nozzle. Holding the glue gun firmly, place the nozzle close to the surface where glue will be applied.
- Page 10 LITHIUM-ION GLUE GUN PISTOLA DE PEGAMENTO DE IONES DE LITIO PISTOLET À COLLE AU LITHIUM-ION www.totalbusiness.com TOTAL TOOLS CO., PTE. LTD. No. 45 Songbei Road , Suzhou Industrial Park , China. MADE IN CHINA T0522.V03...
