24" Electric Washer/Dryer
PRODUCT MODEL NUMBER
LTE5243D
Electrical: A 120/240-volt, 60-Hz, AC-only,
electrical supply (120/208-volt electrical supply, if
specified on the serial/rating plate) is required on a
separate 30-amp circuit, fused on both sides of the
line. A time-delay fuse or circuit breaker is
recommended.
Exhaust venting: Exhaust your dryer to the
outside. Four-inch diameter vent is required. Rigid
or flexible metal exhaust vent must be used. Do
not use plastic or metal foil vent. Exhaust outlet
hood must be at least 12 inches from the ground
or any object that may be in the path of the
exhaust.
EXHAUST VENTING
Plan installation to use the fewest number of elbows
and turns.
Maximum length of the exhaust system depends
upon the type of vent used, number of elbows and
the type of exhaust hood. The maximum length for
both rigid and flexible vent is shown in the chart.
4"
(10.2 cm)
(6.4 cm)
Angled hood style
Vent Length Chart
Number of
Type of Vent
Box or
90∫ turns
Louvered
or elbows
hoods
0
Rigid metal
43 ft (13.1 m)
Flexible metal
30 ft (9.1 m)
1
Rigid metal
33 ft (10.1 m)
Flexible metal
24 ft (7.3 m)
2
Rigid metal
24 ft (7.3 m)
Flexible metal
16 ft (4.9 m)
NOTE: Side exhaust adds a 90° turn inside the washer/dryer. To
determine maximum exhaust length, add one 90° turn to the
chart.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.

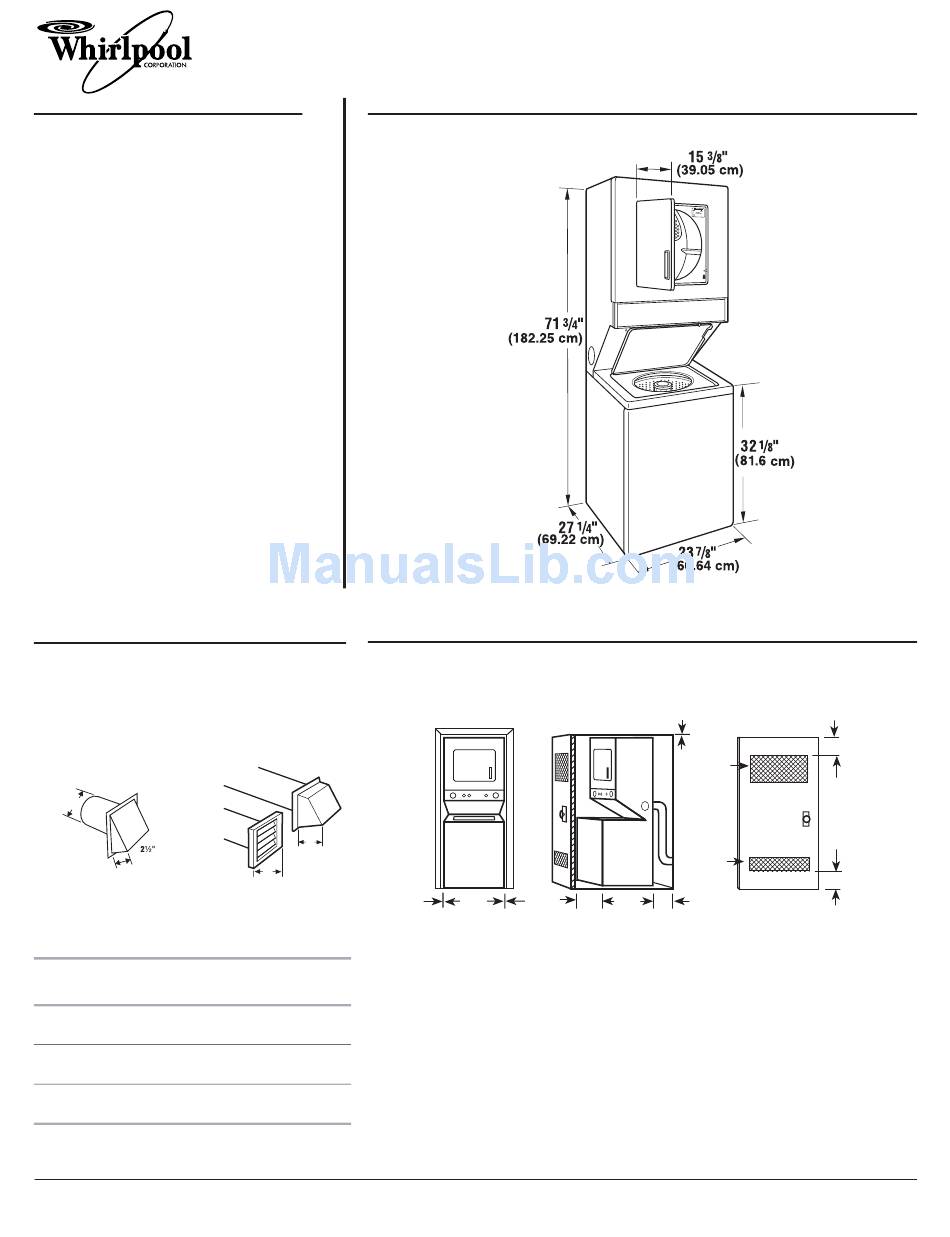

OVERALL DIMENSIONS
* Most installations require a
minimum 5-1/2 in. (14 cm)
clearance behind the dryer for
the exhaust vent with elbow.
RECESSED AREA AND CLOSET INSTALLATION
Additional clearance for wall, door and floor molding may be required.
Rear clearance may be 0 in. when house exhaust system is lined up directly with dryer exhaust.
2
1
4"
(10.2 cm)
4"
(10.2 cm)
1. Louvered hood style
2. Box hood style
Angled
hoods
36 ft (11.0 m)
24 ft (7.3 m)
26 ft (7.9 m)
18 ft (5.5 m)
16 ft (4.9 m)
10 ft (3.0 m)
*
A
7
1"
23
/
"
0"
0"
8
(0 cm)
(2.5 cm)
(0 cm)
(60.64 cm)
A. Recessed area
B. Side view - closet or confined area
C. Closet door with vents
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
B
C
0"
(0 cm)
48 in.
2
(310 cm )
2
2
24 in.
(155 cm )
2
"
27
1
/
5
1
/
"
4
2
(69.22 cm)
(14 cm)
3"
(7.6 cm)
(7.6 cm)
3"
Ref. 8542748 Rev. A
11-01-04
