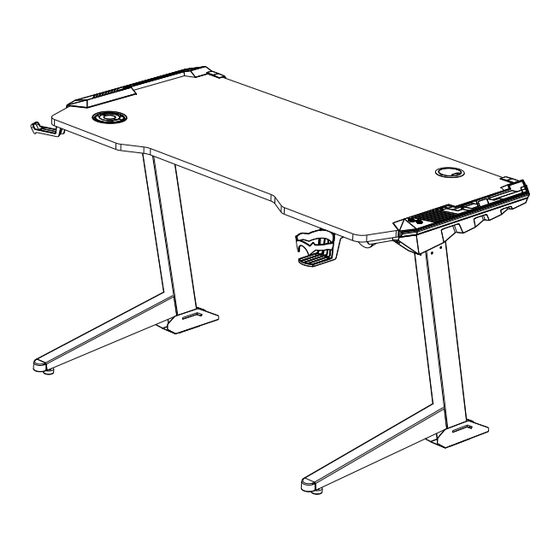

TecTake 404317 Installation Manual

Accessory List
Attention: The drawings below are only for reference which might be slightly different from the actual object, please in kind prevail. Any tools missing
or installation problems, please contact the customer service firstly.
C
A B
x12 x5 x20
ST4.2x13 Cable Tie M6x12 5x5(with cross)
Part List
No. Part Qty No. Part Qty No.
① ② ③
1 1
Upper Left Light Strip Bottom Left Light Strip
④ ⑤ ⑥
2 2
Lifting Decorative
Column Assembly Components
⑦ ⑧ ⑨
2 1
Bottom
Feet Assembly Right Light Strip
⑩
1 1
Motor
Extension Cord Cup Holder
1 1
Power Plug Adapter
1 17 1
Long Allen Key Plug Wire
Technical Data
2
Column Design
Maximum Load 50KG
25mm/s
Maximum Speed
Highest Position 1210mm
720mm
Lowest Position
Height Range 490mm
1250mmx600mmx18mm
Desktop Dimension
D
x1
Installation Instruction
Part Qty
①
1
Tabletop Assembly
2
②
Rear Foot Pad
⑩
1
Upper Right Light Strip ④
1
Headphone Hook
1
⑤
⑦
Switch Cord ⑥
17
STEP1
Note: Pay attention to the direction of the
rear foot pad as shown in the diagram.
Buckle the rear foot pad (6)and the decorative
sheet metal (5) together.
STEP3
C x8
Note: Pay attention to the
direction of decorative sheet
metal as shown in the diagram.
Use long allen key (16) to tighten the component in
Step 1 and the component in Step 2 with screws (C).
⑨
STEP5
③
A
x2
ST4.2x13
D
x1
5x5
⑧
④
⑤
⑦
⑥
Install rear foot pad and the
STEP2
decorative sheet metal
C
x4
⑥
⑤
Use a long allen key (16) to connect lifting
columns (4) to the feet (7) with screws (C);
two sets in all.
Connect decorative sheet
STEP4
metal to the lifting column
C
x8
Use long allen key (16) to tighten the component
in Step 3 and tabletop assemblies (3) with
screws (C).
STEP6
Install headphone hook
A
Use 5x5 allen key (D) to install headphone x4
hook (12) to the component in Step 4 with
screws (A).
ST4.2x13
D
x1
5x5
D
A
D
A
Install the foot
⑦
Install lifting Note: Pay attention to
columns the direction of feet as
shown in the diagram.
C
④
④
Install cup holder
Use 5x5 allen key (D) to install cup
holder (11) to the component in Step 5
with screws A.
