Service Manual

Refrigerator/Freezer

Model:

HFD647AS HA AA

HTD647AS HA AA

HFD647WISS HA AA

321199

Need help?

Do you have a question about the HFD647AS HA AA and is the answer not in the manual?

Questions and answers

Summary of Contents for Haier HFD647AS HA AA

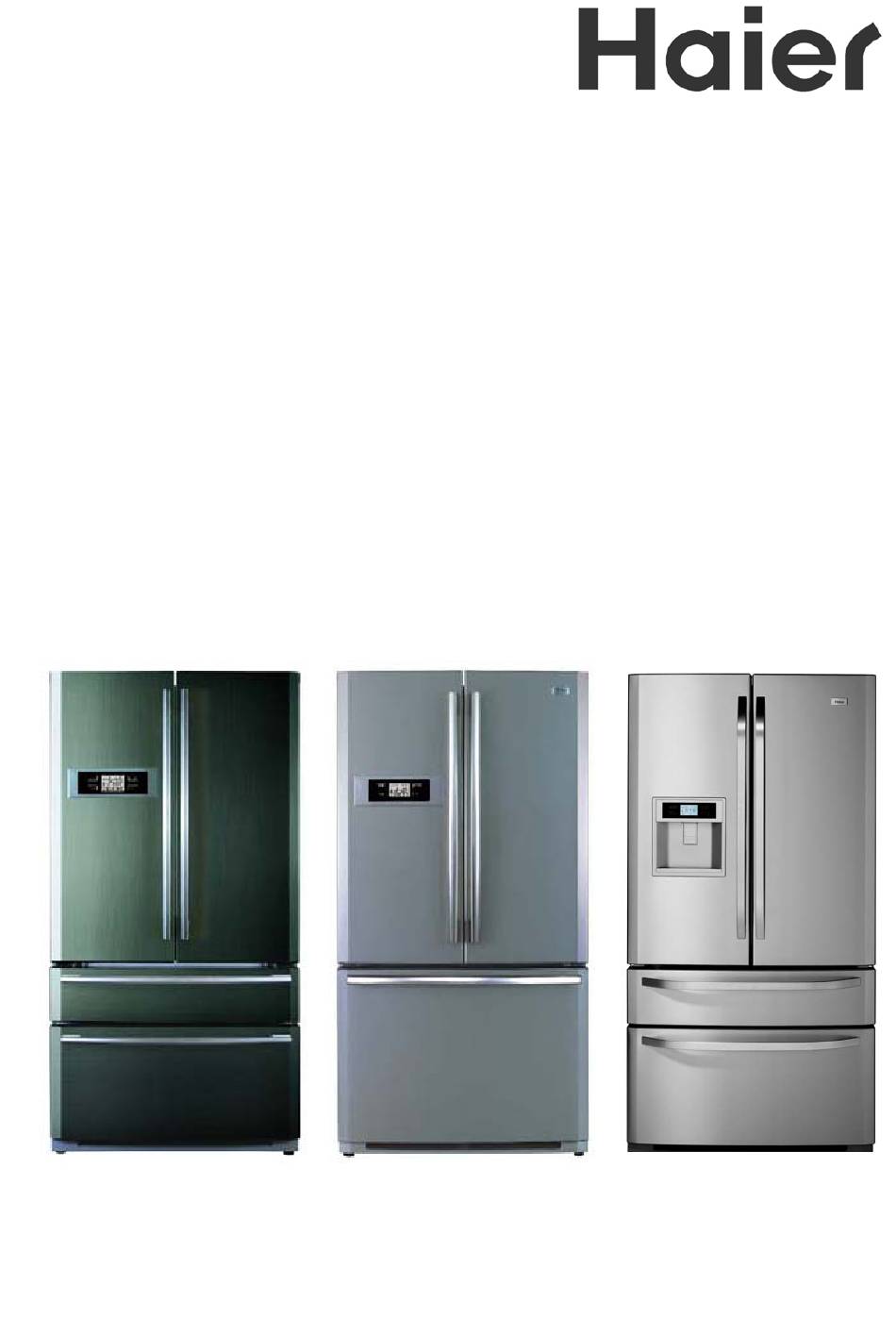

Page 1 Service Manual Refrigerator/Freezer Model: HFD647AS HA AA HTD647AS HA AA HFD647WISS HA AA 321199...
Page 2 REPRINT - MAY 2013 PRODUCTS Brand Haier Voltage 220/240V 50Hz Models HFD647AS HA AA HTD647AS HA AA HFD647WISS HA AA Fisher & Paykel Appliances Ltd Fisher & Paykel Customer Services Pty Ltd 78 Springs Road, East Tamaki PO Box 798, Cleveland, QLD 4163 Manukau 2013 A.C.N.
Page 3 321199 CONTENTS SAFETY PRECAUTIONS ...........................5 SPECIFICATIONS ............................6 PARTS IDENTIFICATION ..........................7 HTD647AS ............................7 HFD647AS ............................8 HFS647WISS............................9 INSTALLATION ............................10 Attaching The Toe Moulding ......................10 Installing The Provision Compartment Door Handles..............10 Installing The Freezer Compartment Drawer Handle ..............11 Installing The Front Levelling Feet....................11 Installing The Water Filter (HFD647AS Only) .................12 DISASSEMBLY AND INSTALLATION ....................16 Removing and Replacing the Right Door of Refrigerator Compartment ........16...
Page 4 321199 WATER CONNECTION – HFD647WISS..................... 34 SYSTEM FLOW CHART ........................35 11.1 System Flow Diagram ........................35 11.2 System Cabinet Tubing Layout ...................... 35 CIRCUIT DIAGRAM ..........................36 12.1 Schematic Diagram ........................36 12.1.1 HFD647AS ..........................36 12.1.2 HTD647AS ..........................36 12.1.3 HFD647WISS..........................
Page 5 321199 SAFETY PRECAUTIONS • The appliance must be plugged into an outlet socket that is earthed. • The power cord of this appliance is fitted with the three-pin plug (grounded) that complies with the standard. The refrigerator should be located so that the plug is accessible. •...
Page 6 321199 SPECIFICATIONS MODEL HFD647AS/HFD647WISS HTD647AS Key Features Gross capacity (litres) Total net capacity (litres) Defrosting (manual/automatic) Automatic Automatic Technical Data Voltage/Frequency 220-240V 50Hz 220-240V 50Hz Input power (watts) Length of cable including plug (cm) Temperature range ( Defrost element wattage 280 Watts 280 Watts Refrigerant...
Page 7 321199 PARTS IDENTIFICATION HTD647AS...
Page 8 321199 HFD647AS...
Page 9 321199 HFS647WISS...
Page 10 321199 INSTALLATION Attaching The Toe Moulding Open the refrigerator doors, remove the moulding from the provision compartment, and the affix as shown in the illustration below with the screws provided. Installing The Provision Compartment Door Handles • Screw the handle connectors into the threaded holes in the doors (refer figure 1). There are two per door. Using a hand held screwdriver, tighten the handle connectors until the screw threads disappear and the first flat surface of the handle connector touches the door surface.
Page 11 321199 Installing The Freezer Compartment Drawer Handle • Screw the handle connectors into the threaded holes in the drawer (refer figure 1). Using a hand held screwdriver, tighten the handle connectors until the screw threads disappear and the first flat surface of the handle connector touches the drawer surface.
Page 12 321199 Installing The Water Filter (HFD647AS Only) Contents of filter kit 4 m (13 ft) white 6 mm (¼”) tubing 1 x 200 mm (8”) blue tubing 1 x pressure reducing valve (PRV) 1 x double sided foam 2 x locking keys 1 x water filter cartridge and head 1 x tap connection –...
Page 13 321199 Installation instructions: Ensure that the refrigerator is not plugged into a power supply. Locate the isolation tap for the water connection – cold water feed only (dishwasher or sink mixer taps) – if you can’t find the connection tap, contact an authorised plumber in your state or town to fit your water connection.
Page 14 321199 Attach double sided foam to the back of the water filter head as shown in Diagram 5. Write the date to be replaced on the filter (date installed + 6 months). Remove the double sided foam backing and attach the filter to the desired position as located in step 10 (refer to previous page).
Page 15 321199 Important! • All connections must be checked for leaks. • If unsure of connection process and/or leaks, then contact your local plumber to install and check the system for you. • Ensure white 6 mm (¼”) tubing is routed away from sharp objects, sharp corners (beware of kinking tube as this will stop water flow), clear of the refrigerator unit compartment and not in a location where it can be squashed.
Page 16 321199 DISASSEMBLY AND INSTALLATION Removing and Replacing the Right Door of Refrigerator Compartment Unscrew the upper right hinge cover by means Unscrew the upper right hinge by means of of screwdriver and then remove the hinge hexagonal screwdriver and then remove the cover.
Page 17 321199 Removing & Replacing Freezer Drawer • Open the drawer as far as possible, then remove the screw on each side of the drawer. • Pull the drawer body upwards and outwards, and put aside in a safe place. • Replace the freezer drawer in a reverse sequence to removal. Adjusting The Height-Adjustable Shelf The height of the shelf can be adjusted to meet individual storage needs.
Page 18 321199 Replacing the Light Bulb (Provision Compartment) Bulb specifications: 220V~, 25W Socket: E14 (DO NOT use a bulb over 25Watts) To replace the light bulb: • Unplug the appliance. • To remove the light shield, press the stopper at rear out of the square hole.
Page 19 321199 5.10 How to Use the Delicatessen Drawer The appliance is equipped with a delicatessen drawer with a temperature range from -2°C~+3°C. The temperature can be adjusted by the air control knob to meet storage needs. • Turn the air control knob leftwards (weak) to reduce the cooled air moving into the delicatessen drawer and maintain a higher temperature.
Page 20 321199 CONTROL AND DISPLAY SYSTEM Control and Display Panel HFD647AS & HFD647WISS FC temperature control button PC temperature display Function setting button Artificial Intelligence indicator PC temperature control button Fast freeze indicator Function confirmation button Fast chill indicator FC temperature display Icemaker indicator Timer indicator Quick ice making indicator...
Page 21 321199 Function Adjustment and Control Principle 6.2.1 AI Mode (FUZZY Or Artificial Intelligence Mode) In the Artificial Intelligence mode, the appliance automatically adjusts temperature according to the variation of ambient and compartment temperatures without manual adjustment. To enter Artificial Intelligence mode: •...
Page 22 321199 6.2.3 FC Temperature Setting & Adjustment To set or adjust the FC temperature: • Ensure that the controller is in the unlocked state (refer to Section 6.2.6). • Ensure that the controller is not in the AI mode (refer to Section 6.2.1). •...
Page 23 321199 6.2.6 Lock Mode In the Lock mode, adjustment of the PC temperature, FC temperature, AI, Fast Freeze, Fast Chill, Icemaker switching and Quick Ice functions are deactivated. To enter the Lock mode: • Lightly press the Function Selection button (B) several times until the Lock indicator (N) is illuminated. •...
Page 24 321199 6.2.8 Fast Chill Mode The Fast Chill mode is designed to quickly cool the food in the provision compartment to a set temperature. It is especially useful when a large quantity of food has been placed in the provision compartment at one time.
Page 25 321199 6.2.9 Quick Ice Making Mode (HFD647AS & HFD647WISS) If a large amount of ice cubes are required, the Quick Ice Making mode can be turned on To enter the Quick Ice Making mode: • Ensure that the controller is in the unlocked state (refer to Section 6.2.6). •...
Page 26 321199 6.2.11 Icemaker Fill Time Adjustment Mode (HFD647AS & HFD647WISS) To enter the Icemaker Fill Time adjustment mode: • Ensure that the controller is in the locked state (refer to Section 6.2.6). • Press and hold down the Freezer Temperature adjustment button (A), Function button (B) Refrigerator Temperature adjustment button (C) and Function Confirmation button (D) simultaneously for 3 seconds to activate water fill time adjustment mode.
Page 27 321199 ELECTRICAL CONTROL PRINCIPLES Overview The evaporator fan in the freezer compartment circulates air around the FC. The air is also moved into the provision compartment, with the flow being controlled by an air damper located between the FC and PC. The temperature in the PC is controlled by the PC sensor controlling the switching of the air damper.
Page 28 321199 Defrost Control When the cabinet has been switched on for the first time, or after a replacement control board has been fitted, the very first defrost will occur after 4 hours. If the PC sensor temperature is greater than 10 C, a defrost will occur.
Page 29 321199 7.5.2 Test Mode 2 (Defrost Heater Test) To enter the Test mode 2: While in Test mode 1, press and hold the Freezer Temperature adjustment button (A), the Refrigerator Temperature adjustment button (C) and Function Confirmation button (D) together for 3 seconds until the FC and PC temperature displays (E) and (H) both show T2.
Page 30 321199 7.5.3 Test Mode 3 (Mullion & Damper Heaters Test) To enter the Test mode 3: While in Test mode 2, press and hold the Freezer Temperature adjustment button (A), the Refrigerator Temperature adjustment button (C) and Function Confirmation button (D) together for 3 seconds until the FC and PC temperature displays (E) and (H) both show T3.
Page 31 321199 SENSORS AND FAULT CODES Sensor Locations NOTE: There is no ICE sensor in model HTD647AS Drawing Name Location Function Reference Ambient Sensor Below hinge cover of provision Measure ambient air compartment door temperature. Freezer Compartment Side wall of freezer compartment Measure temperature of Sensor freezer compartment.
Page 32 321199 Fault Code Display In the event of a fault developing, a fault code will be displayed on the display panel as follows: Code Fault Description Fault Meaning Evaporator Fan Motor Fault No signal received for more than 30 seconds Condenser Fan Motor Fault No signal received for more than 30 seconds Defrost Fault...
Page 33 321199 DEFROST PRINCIPLE...
Page 34 321199 WATER CONNECTION – HFD647WISS Connection of the water pipes: • Inlet A of the main valve connects to the main water supply. • Outlet B of the main valve connects to the built-in water filter. From the filter it flows to the water bottle. •...
Page 35 321199 SYSTEM FLOW CHART 11.1 System Flow Diagram Compressor Condenser Mullion Heater Filter/Dryer Capillary Evaporator Suction Line 11.2 System Cabinet Tubing Layout Compressor Discharge Pipe Condenser Mullion Heater Filter/Dryer Capillary Evaporator Evaporator Fan Motor Suction Line 10. Defrost Heater 11. Condenser Fan...
Page 36 321199 CIRCUIT DIAGRAM 12.1 Schematic Diagram 12.1.1 HFD647AS Power plug Evaporator Fan Motor Air Damper Icemaker Door Display Panel PC Door Switch 1 PC Door Switch 2 FC Door Switch 1 FC Door Switch 2 Control Panel Condenser Fan Motor Defrost Sensor FC Sensor PC Sensor...
Page 37 321199 12.1.3 HFD647WISS...
Page 38 321199 12.2 Wiring Diagrams 12.2.1 HFD647AS...
Page 39 321199 12.2.2 HTD647AS & HTD647WISS...
Page 40 321199 TROUBLE SHOOTING FLOW CHARTS 13.1 Icemaker Problems (HFD647AS & HFD647WISS) 13.1.1 Not Making Ice Check Method Repair Method 1. Check whether FC is reaching Refer No Cooling in Section 13.2. set temperature. 2. Check that icemaker is in ON Refer to Section 6.2.10.
Page 41 321199 13.1.3 Abnormal Noise of Icemaker Problem Check Method Repair Method Abnormal noise of icemaker. Activate icemaker test function Check whether the ice mould (refer to Section 7.6). touches the water pipe when it turns over. If so, disassemble the icemaker, move the support bracket forward slightly then refasten it.
Page 42 321199 13.2 No Cooling Not cooling Is the Refer to Section compressor 13.4 running? Is temperature Refrigerant leak. of the condenser Check and repair, then rising? recharge the system System blocked. Flush system, replace When charging system, ensure that correct filter/dryer, then gas charge is added.
Page 43 321199 13.3 Compressor Doesn’t Stop Compressor doesn’t stop Does the Refer to Section provision 13.2 compartment refrigerate? Is it getting cold Refer to Section enough? 13.5 1 The thermostat is set at the coldest position. Rectify problem and 2 The ambient temperature is very high instruct consumer on or provision compartment is near a heat 3 The door has been left...
Page 44 321199 13.4 Compressor Doesn’t Start Note: System pressures must be allowed to equalize before attempting to start the compressor. Compressor doesn’t start Are the lights Fault in lights or and display display system systems normal? Are the Adjust temperature temperature settings settings correct? Is the...
Page 45 321199 Continued from previous page Are the Locate and repair, compressor then test connections tight? Are the input and Main control board output voltages of faulty the control board normal? Are contacts on Locate and repair, control board then test tight?
Page 46 321199 13.5 Not Cold Enough Not cold enough Is the ambient Check temperature temperature lower settings are correct than 16 Is there a refrigerant leak? Adjust and advise Locate and repair, consumer on use then test...
Page 47 321199 TROUBLESHOOTING 14.1 Troubleshooting And Repair 14.1.1 Normal Phenomena – Not Faults Of The Refrigerators In a domestic refrigerator, there is not only a complicated electric control system, but also a refrigerating system that is difficult to discern whether it is in a good working condition. Both the systems are related and affect each other.
Page 48 321199 14.2 Three Essentials For Faultfinding 14.2.1 Look Check the tubing of the refrigerating system for cracks and various welding points for leaks. If leakage occurs, an oil stain can usually be seen. Check the suction and exhaust pressure values (high pressure and low pressure) of the compressor to see whether they are normal.
Page 49 321199 14.3 Analysis Of Troubles And Troubleshooting 14.3.1 Poor Refrigerating Effect The so-called “poor refrigerating effect“ refers to the fact that the refrigerator can operate and refrigerate normally, but the temperature in the refrigerator cannot drop to the prescribed value under the stipulated working conditions.
Page 50 321199 Low efficiency of compressor Analysis of Trouble Low efficiency of a refrigerating compressor refers to the actual reduction of gas discharge capacity, and hence the corresponding reduction of refrigerating capacity, under the condition in which the refrigerant in the system is unchanged. This phenomenon occurs mostly when the compressor has been used for quite a long time, its moving parts have worn to a considerable degree, the fit clearance between various parts have increased and the sealing property of its gas valve has deteriorated, resulting in a decrease in its actual gas discharge capacity.
Page 51 321199 Symptoms of total leakage of refrigerant are mainly as follows: • The compressor can be started easily (if there is no damage to the compressor parts). • Its operating current becomes low. • Its gas suction pressure is high and discharge pressure is lower. •...
Page 52 321199 Clogging in filter Analysis of Trouble Total clogging of a filter rarely occurs. The paste-like matter formed from the substances filled into the system mostly causes this trouble, or other dust after the refrigerator has been used for a longer time, or by the dirt accumulating gradually inside the filter.
Page 53 321199 Air left in the system Analysis of Trouble The residual air in the system will circulate together with the refrigerant in the system. The major symptoms caused by this residual air are higher gas discharge pressure, higher discharged gas temperature (the gas discharge tubing is considerably hot when you feel it with your hand), and poorer refrigerating effect.
Page 54 321199 Inspect the power supply to see whether it is connected to the compressor circuit. Analysis of Trouble If the compressor cannot be started, this will generally exhibit in the power supply circuit, for instance power failure, poor contact of switch, and blown fuse. Make a comprehensive analysis of these phenomena, find out its real cause, and take the correct measures to remove the fault.
Page 55 321199 Poor electric contractor in thermostat Analysis of Trouble Burnout of the contractor and leakage of temperature sensing agent may occur generally. Remedy Replace the old with a new one. Check the terminals for loose connection and electric circuits for other abnormal phenomena. 14.3.5 Mechanical Faults Of Compressor Seizing of shaft...
Page 56 321199 No stoppage of compressor due to damaged cabinet insulation and/or door seal Analysis of Trouble When the cabinet insulation deteriorates or the door seal is not sealing correctly, the temperature in the refrigerator will rise and keep the compressor running continuously. Remedy Check the cabinet insulation for damage.
Page 57 321199 Inspection method To find the sources of noise, press the vibration spot with your hand while the refrigerator is in operation and listen carefully to determine whether the vibration becomes weaker or vanishes. If the refrigerator has not been placed level, put a level on its top table and adjust the levelling feet. If noise occurs from the compressor, strike different locations on the side surface of its case using a rubber hammer or hand hammer with a wood block in-between so as to determine whether the suspended springs are out of balance or are seized.
