Sonoff BMT01 Manual

Introduction

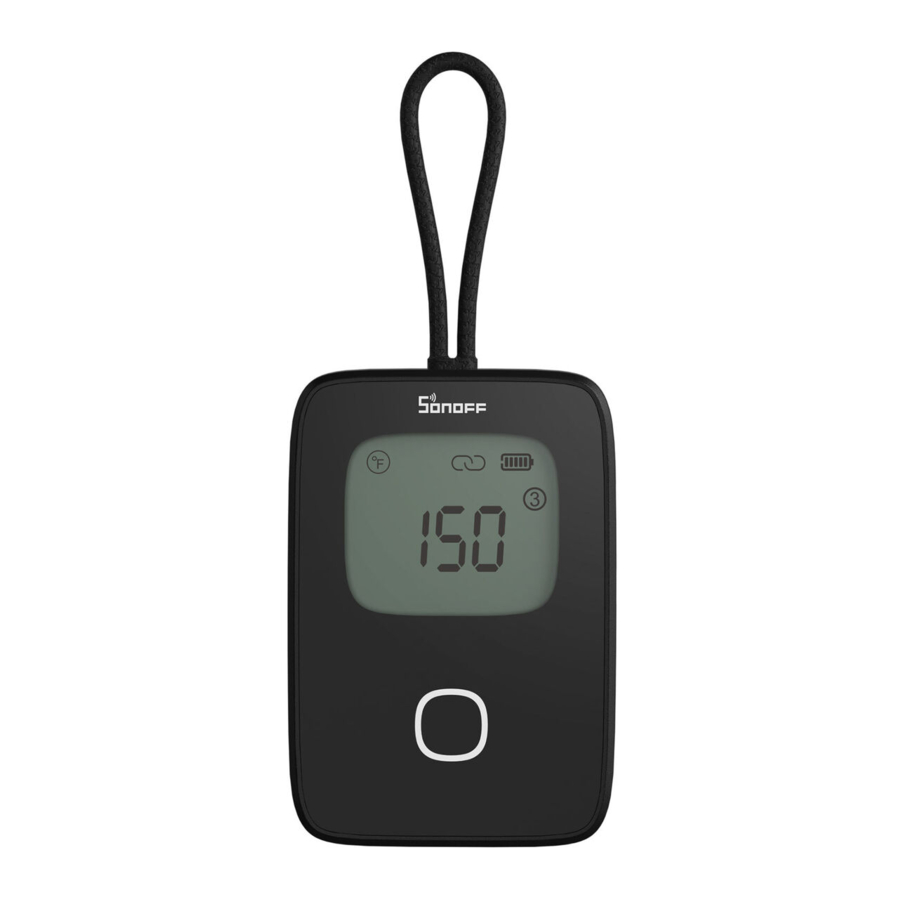

SONOFF BBQ Meat Thermometer is a smart barbecue thermometer. Insert the heat-resistant probe into the center of the food, and monitor the real-time temperature on the device screen or the eWeLink app. It will alert you when the Preset Temp. is reached, helping you effortlessly grill delicious barbecue.

Features

• Temperature Detection
• App Monitoring
• Temp. Alert
• Timer Reminder
• Real-Time Temp. Chart
• Reading Switch
• Backlit Display
• Quick Refresh

Screen Display Instructions

1. Temperature unit
2. Connection icon
   • Flashing: The device is in pairing mode.
   • Keeps on: Connected to App
   • Keeps off: Not connected to App
3. Battery level
4. Probe temperature
5. Temperature corresponding probe

Device Instructions

1. Power button
   • Press and hold for 5 seconds to power on. In the powered-on state, press and hold for 5 seconds to power off.
2. Function button
   • Long touch for 5 seconds: Device enters the pairing mode. (Pairing time 180s)
   • Short touch: Turn on backlit mode./Switch to next probe temperature.
3. Device bracket
4. Probe interface
5. Battery protection cover

Specification

*This product is only suitable for safe use at altitudes below 2000m.

Download the eWeLink App

Please download the "eWeLink" App

from Google Play Store:

or Apple App Store:

Power on the device

1. Remove the battery protection cover, then pull out the device battery insulation sheet to power the device.

2. When the device is used for the first time, it will enter pairing mode by default after being powered on, and the connection icon "" will flash.


*If pairing is not completed within three minutes, the device will exit pairing mode. To re-enter pairing mode, long touch the function button on the screen for 5 seconds until the connection icon "" starts flashing. Power on the device

Scan QR code to add the device

1. Enter "Scan".

2. Scan the QR code on the device.

3. Select "Add Device".

4. Long touch the function button on the screen for 5 seconds.

5. Check the status of the connection icon (flashing).

6. Search for the device and start connecting.

7. Device added completely.


Usage Instructions

1. Insert the probe connectors into the ports on both sides of the BMT01, then insert the probe into the food you wish to monitor (such as beef, lamb, and so on).

2. Set the Preset Temp. in the eWeLink App. When the probe temperature rises to the Preset Temp., the device and mobile phone will trigger an alarm reminder.


*If the device does not detect the probe within 10 minutes, or if the probe's temperature does not exceed 50°C within 24 hours, it will automatically power off. To turn the device on, press and hold the side button for five seconds. Usage Instructions

Usage Demonstration

*After use, place the devices into the storage bag

1. Probe clip
2. BBQ meat thermometer probe sensor
3. BBQ meat thermometer
4. Magnetic hook

*The magnetic hook should be kept away from high temperatures to prevent demagnetization.

Safety Precautions

1. This product is equipped with a food-grade probe. Please remove the plastic protective cover from the probe before use. The probe is sharp, so handle with care to avoid injury.
2. Avoid touching the probe directly with your hands in high-temperature environments to prevent burns.
3. Keep the probe away from open flames. Grilling over open flames can easily produce carcinogens like polycyclic aromatic hydrocarbons and nitrosamines. At the same time, the temperature measurement range of the probe is 32~572℉(0~300℃), long-term exposure to open flames may cause malfunction.
4. The host is not resistant to high temperatures. Please keep it away from the grill during use.
5. The magnetic hook provided should be kept away from high temperatures to prevent demagnetization. It is recommended to attach it to the grill legs.
6. This product is not suitable for children. Please keep it out of reach of children.
7. This product contains AAA batteries. Please keep new and old batteries out of reach of children.
